| BASIC INFORMATION | ||
| Supported CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors | |
| Form Factor | M-ATX Form Factor 9.6 in. x 8.3 in. (24.4 cm x 21 cm) |
|
| Basic Information | ||
| Chipset | AMD B550 Chipset | |
| Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
|
| Memory | ||
| Slots | 2 x memory slots | |
| Memory | 2 x memory slots Supported Memory Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
|
| Graphics | ||
| Graphics | 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz | |
| LAN | 1x Realtek RTL8111H LAN controller | |
| Supported Storage | AMD B550 Chipset 4x SATA 6Gb/s ports 1x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
|

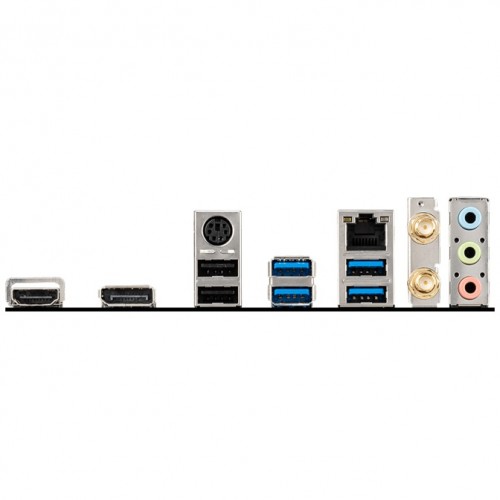

| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x Clear CMOS jumper |
|
| USB Port | AMD B550 Chipset 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 Years Warranty | |
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards. World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 Shield Frozr is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
ENHANCED PERFORMANCE
MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
CONNECTIVITY
This next-generation Intel Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps without any cable limitation. Make sure you enjoy the purest sound quality in both stereo and surround sound. A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured. Keep your sound perfect by transmit your audio with pure digital signal. Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated. Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.
