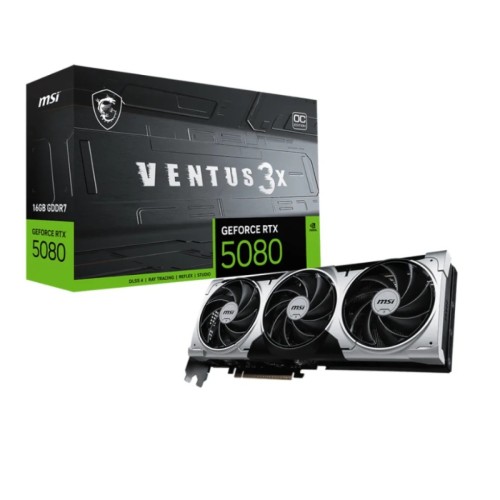

MSI GeForce RTX 5080 16G VENTUS 3X OC PLUS 16GB GDDR7 Graphics Card

The MSI GeForce RTX 5080 16G VENTUS 3X OC PLUS Graphics Card, which has DLSS 4 and the NVIDIA Blackwell architecture. With 10,752 cores and a boost speed of 2,640 MHz, this MSI RTX 50 Series GPU offers exceptional performance. In extreme performance mode, it can reach 2,655 MHz via MSI Center. With 16GB of GDDR7 memory running at 30 Gbps on a 256-bit memory bus, this MSI RTX 5080 Graphics Card offers lightning-fast data processing for smooth gaming and business activities. The PCI Express 5.0 x16 interface of the MSI GeForce RTX 5080 16G VENTUS 3X OC PLUS graphics card increases bandwidth for better system responsiveness. Three DisplayPort 2.1a outputs with a maximum resolution of 15,360 × 8,460 at 60Hz and an HDMI 2.1b connection that supports 4K at 120Hz HDR and 8K at 60Hz HDR with variable refresh rate compatibility are included with the MSI GDDR7 GPU Card for display connectivity. With support for up to four monitors at once, the MSI GeForce RTX 5080 16G VENTUS 3X OC PLUS graphics card is made for multi-display configurations. It produces realistic images and fluid rendering because to its 336 TMUs, 128 ROPs, and 84 dedicated ray tracing cores. Compatibility with OpenGL 4.6 and DirectX 12 Ultimate (12_2) guarantees excellent gaming experiences. For the best thermal performance, the TRI FROZR 4 cooling system uses high-pressure airflow with STORMFORCE Fans and TORX Fan 5.0. For better cooling, the square-shaped core pipes make maximum contact with the MSI GeForce RTX 5080 16G VENTUS 3X OC PLUS GDDR7 graphics card, while a nickel-plated copper baseplate effectively transmits heat. The metal backplate has airflow vents to assist dissipate heat and increases durability.

ance

The MSI VENTUS 3X OC PLUS features a 2640 MHz boost clock, with an Extreme Performance mode reaching 2655 MHz through MSI Center. This factory-tuned configuration provides additional performance while retaining MSI's thermal and power-management features.

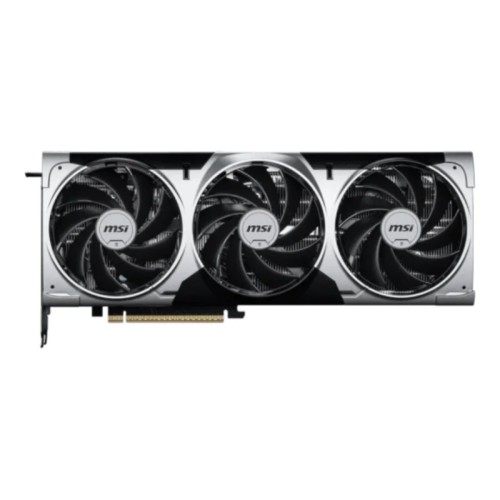

Advanced TRI FROZR 4 Cooling

The VENTUS 3X OC PLUS uses MSI's TRI FROZR 4 thermal design with three fans and a large heatsink. MSI specifies TORX FAN 5.0, a nickel-plated copper baseplate, core pipes, and a metal backplate as part of the cooling and structural design.

TORX FAN 5.0

The TORX FAN 5.0 design uses linked fan blades and a surrounding fan cowl to help stabilize airflow and maintain high-pressure air movement through the heatsink. This is designed to improve cooling performance during extended GPU workloads.

PCIe Gen 5 Interface

The RTX 5080 VENTUS 3X OC PLUS uses a PCI Express Gen 5 interface, providing a modern high-bandwidth connection between the graphics card and compatible motherboard.

DisplayPort 2.1b and HDMI 2.1b

The graphics card includes:

• 3 × DisplayPort 2.1b
• 1 × HDMI 2.1b

MSI specifies HDMI 2.1b support for up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, and HDR. The card supports up to four displays simultaneously and a maximum digital resolution of 7680 × 4320.

Power Requirements

The RTX 5080 VENTUS 3X OC PLUS has a rated power consumption of 360W. It uses one 16-pin power connector, with MSI recommending an 850W power supply and an ATX 3.1 PSU.
