| Display Features | ||
| Resolution | 7680 x 4320 | |
| BASIC Information | ||
| Size | 16GB | |
| Basic Information | ||
| Others | 2.5 Slot | |
| Type | GDDR7 | |
| Video Memory Specifications | ||
| BUS Type | 256-bit | |
| CUDA Cores (Nvidia) | 10752 | |
| Memory Clock | 30 Gbps | |
| Memory Interface | PCI Express 5.0 | |
| Features | ||
| Dimension | 306 x 126 x 50 mm 12 x 5 x 2 inch |
|
| Interface | ||
| Display Port | 3x Native DisplayPort 2.1a | |
| HDMI | 1x Native HDMI 2.1b | |
| HDCP | HDCP 2.3 | |
| Connectivity | ||
| Connectors | 1 x 16-pin | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| OpenGL | OpenGL®4.6 | |
| Physical Specification | ||
| Recommended PSU | 850W | |
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 years | |

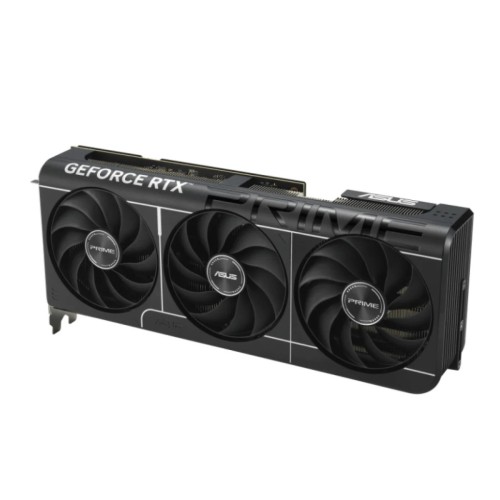

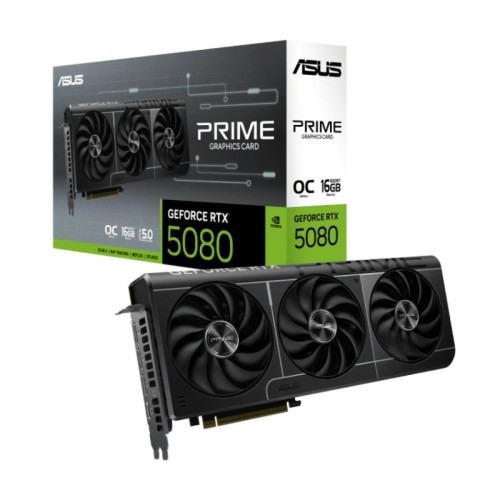

ASUS PRIME GeForce RTX 5080 16GB GDDR7 OC Edition Graphics Card
The ASUS PRIME GeForce RTX 5080 16GB GDDR7 OC Edition is a high-performance graphics card built on NVIDIA's Blackwell architecture, offering advanced features for gamers and professionals.
Key Features:
GPU Architecture: Blackwell
CUDA Cores: 10,752
Memory: 16GB GDDR7
Memory Bandwidth: 896 GB/s
Ray Tracing Cores: 84 (4th generation)
Tensor Cores: 336 (5th generation)
Display Outputs: 1× HDMI 2.1b, 3× DisplayPort 2.1b
Power Connector: 16-pin 12V2×6
TDP: 360W
Performance Highlights:
The RTX 5080's advanced ray tracing and AI capabilities enable realistic lighting, shadows, and reflections in real-time applications. The inclusion of GDDR7 memory ensures high-speed data transfer, reducing latency and enhancing overall performance. The card supports DLSS 4 technology, utilizing AI-driven upscaling to deliver higher frame rates without compromising image quality.
Design and Cooling:
The ASUS PRIME series emphasizes reliability and efficiency. The OC Edition comes factory-overclocked, providing a performance boost over standard models. Its robust cooling system ensures optimal thermal management, maintaining performance during extended use.
Compatibility and Power Requirements:
Featuring a PCIe 5.0 interface, the RTX 5080 ensures high-speed connectivity with modern motherboards. The 16-pin 12V2×6 power connector offers improved safety and reliability over previous designs. A power supply of at least 850W is recommended to ensure stable operation.
Conclusion:
The ASUS PRIME GeForce RTX 5080 16GB GDDR7 OC Edition is a top-tier graphics card suitable for demanding gaming and professional applications. Its advanced architecture, high-speed memory, and enhanced features make it a compelling choice for users seeking exceptional performance.
