| Graphics Card | ||
| Type | GDDR7 | |
| Size | 16GB | |
| Resolution | 4K at 480Hz or 8K at 165Hz with DSC | |
| Core Clock | Boost Clock: 2512MHz Base Clock: 2295MHz |
|
| Memory Clock | 28Gbps . . Memory Bandwidth (GB/sec): 896 GB/sec |
|
| BUS Type | PCI Express Gen 5 | |
| Memory Interface | 256-bit | |
| CUDA Cores | 8960 | |
| Display Port | 3x DisplayPort 2.1b | |
| HDMI | 1x HDMI 2.1b | |
| Connectors | 3x PCIe 8-pin cables (adapter in box) OR 1x 450 W or greater PCIe Gen 5 cable | |
| Recommended PSU | 800W | |
| Multi Display | 4 | |
| Dimensions | Length: 334mm Height: 148mm Width: 73mm |
|
| Others | NVIDIA DLSS 4 Real-Time Ray Tracing Ray Tracing Cores: 4th Generation, 133 TFLOPS Tensor Cores: 5th Generation, 1406 AI TOPS NVIDIA Architecture: Blackwell NVIDIA Ansel NVIDIA FreeStyle NVIDIA ShadowPlay OS Certification: Windows 11, Linux, FreeBSDx86 NVIDIA Highlights NVIDIA G-SYNC-Ready Game Ready Drivers NVIDIA Studio Drivers NVIDIA GPU Boost Vulkan API 1.4 NVIDIA Encoder: 1x Ninth Generation NVIDIA Decoder: 1x Sixth Generation HDCP: 2.3 DirectX: 12 Ultimate OpenGL: OpenGL 4.6 |
|
| Warranty | 3 Years | |

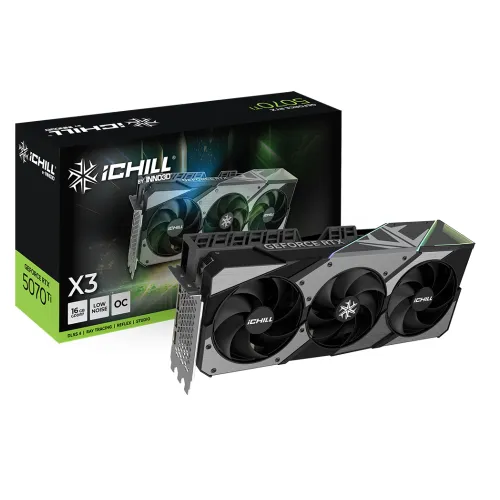

The INNO3D GeForce RTX 5070 Ti iCHILL X3 is a premium, high-performance graphics card built on NVIDIA’s Blackwell architecture. Released in early 2025, this iCHILL variant is designed for enthusiasts who demand superior cooling and aggressive factory overclocks for 4K gaming and AI-intensive workloads.

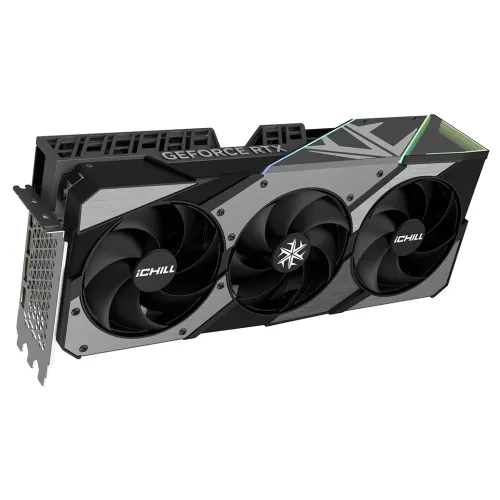

The "iCHILL X3" moniker refers to INNO3D’s flagship cooling solution. It features a massive triple-fan array using 98mm scythe blades. The outer fans rotate anticlockwise to reduce air turbulence, while a large vapor chamber and five 8mm heatpipes ensure the GB203 GPU stays cool even under heavy overclocked loads. This model is notably larger than the standard X3 series, measuring 334mm in length and occupying roughly 3.5 slots, necessitating a spacious chassis.
CUDA Power: The card boasts 8,960 CUDA cores, providing a nearly 30% performance uplift over the previous generation.
Factory OC: It features a boost clock of 2512 MHz, pushing the Blackwell architecture to its limits for maximum frame rates.
GDDR7 Advantage: Equipped with 16GB of GDDR7 memory on a 256-bit bus, it achieves an massive bandwidth of 896 GB/s. This ultra-fast VRAM is essential for DLSS 4.0 "Multi Frame Generation" and high-resolution texture processing.
The card is future-proofed with DisplayPort 2.1b and HDMI 2.1b outputs, supporting 8K resolution at 120Hz. It has a TGP of 300W and requires an 800W PSU. Power is delivered via the 12V-2x6 (16-pin) connector, though an adapter for three 8-pin PCIe cables is typically included.
