| Video Memory Specifications | ||
| Type | GDDR7 | |
| Size | 12GB | |
| Resolution | 4K at 480Hz or 8K at 165Hz with DSC | |
| Core Clock | Boost Clock: 2542MHz Base Clock: 2325MHz |
|
| Memory Clock | 28Gbps Memory Bandwidth (GB/sec): 672 GB/sec |
|
| BUS Type | PCI Express Gen 5 | |
| Memory Interface | 192-bit | |
| CUDA Cores | 6144 | |
| Others | NVIDIA DLSS 4 Real-Time Ray Tracing Ray Tracing Cores: 4th Generation, 94 TFLOPS Tensor Cores: 5th Generation, 988 AI TOPS NVIDIA Architecture: Blackwell NVIDIA Ansel NVIDIA FreeStyle NVIDIA ShadowPlay OS Certification: Windows 11, Linux, FreeBSDx86 NVIDIA Highlights NVIDIA G-SYNC-Ready Game Ready Drivers NVIDIA Studio Drivers NVIDIA GPU Boost Vulkan API 1.4 NVIDIA Encoder: 1x Ninth Generation NVIDIA Decoder: 1x Sixth Generation |
|
| Interface | ||
| Display Port | 3x DisplayPort 2.1b | |
| HDMI | 1x HDMI 2.1b | |
| HDCP | 2.3 | |
| Power Specifications | ||
| Connectors | 2x PCIe 8-pin cables (adapter in box) OR 300 W or greater PCIe Gen 5 cable | |
| Recommended PSU | 650W | |
| Display Option | ||
| Multi Display | 4 | |
| Programming Interfaces | ||
| DirectX | 12 Ultimate | |
| OpenGL | OpenGL 4.6 | |
| Physical Specifications | ||
| Dimensions | Length: 300mm Height: 116mm Width: 41mm |
|
| Warranty | ||
| Warranty | 3 Years Warranty | |

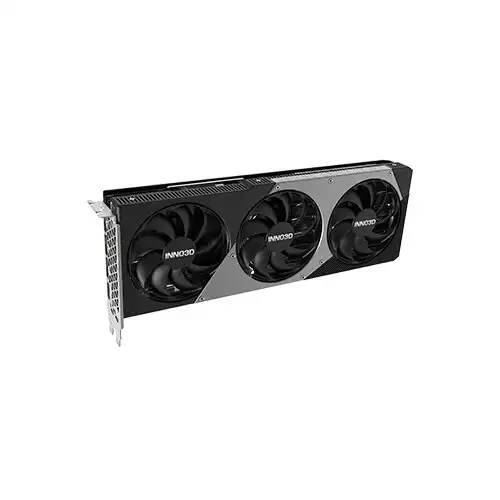

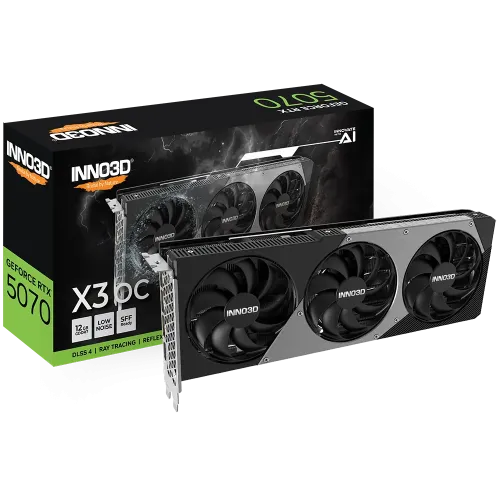

The INNO3D GeForce RTX 5070 X3 OC is a high-performance graphics card built on NVIDIA’s cutting-edge Blackwell architecture. Designed for 1440p and entry-level 4K gaming, it balances high-speed rendering with advanced AI features, making it a powerhouse for both competitive gamers and creative professionals.
At its core, the card features the GB205 GPU with 6,144 CUDA cores. As an "OC" model, it comes factory-overclocked with a boost clock of 2542 MHz (compared to the 2512 MHz reference). It introduces 5th Generation Tensor Cores and 4th Generation RT Cores, delivering up to 988 AI TOPS. This architecture enables NVIDIA DLSS 4, which leverages AI-powered multi-frame generation to significantly boost frame rates while maintaining crisp image quality.
The RTX 5070 X3 OC is equipped with 12GB of GDDR7 memory, a significant leap from the GDDR6X found in the previous generation. Running at an effective speed of 28 Gbps on a 192-bit bus, it provides a massive memory bandwidth of 672 GB/s. This speed ensures smooth performance when handling high-resolution textures and complex ray-traced environments.
X3 Triple-Fan Cooling: The card utilizes three high-performance fans and an optimized heatsink to maintain low temperatures under heavy loads. Its 300mm length and dual-slot design make it compatible with most mid-tower cases.
Power Efficiency: With a TGP of 250W, it requires a 650W PSU. Power is supplied via a single 16-pin (12V-2x6) connector.
Future-Proof I/O: It features three DisplayPort 2.1b ports and one HDMI 2.1b port, supporting resolutions up to 8K at 165Hz or 4K at 480Hz with DSC.
