| Graphics Card | ||
| Type | GDDR7 | |
| Size | 8GB | |
| Resolution | 4K at 480Hz or 8K at 165Hz with DSC | |
| Core Clock | Boost Clock: 2527MHz Base Clock: 2280MHz |
|
| Memory Clock | 28Gbps | |
| BUS Type | PCI Express Gen 5 | |
| Memory Interface | 128-bit | |
| Display Port | 3x DisplayPort 2.1b | |
| HDMI | 1x HDMI 2.1b | |
| Connectors | 1x PCIe 8-pin cables | |
| Recommended PSU | 550W | |
| Multi Display | 4 | |
| Dimensions | Length: 225mm Height: 116mm Width: 41mm |
|
| Others | NVIDIA DLSS 4 Real-Time Ray Tracing Ray Tracing Cores: 4th Generation 58 TFLOPS Tensor Cores: 5th Generation 614 AI TOPS NVIDIA Architecture: Blackwell NVIDIA Ansel NVIDIA FreeStyle NVIDIA ShadowPlay OS Certification: Windows 11, Linux, FreeBSDx86 NVIDIA Highlights NVIDIA G-SYNC-Ready Game Ready Drivers NVIDIA Studio Drivers NVIDIA GPU Boost Vulkan API 1.4 NVIDIA Encoder: 1x Ninth Generation NVIDIA Decoder: 1x Sixth Generation HDCP: 2.3 DirectX: 12 Ultimate OpenGL: OpenGL 4.6 |
|
| Warranty | 3 Years | |

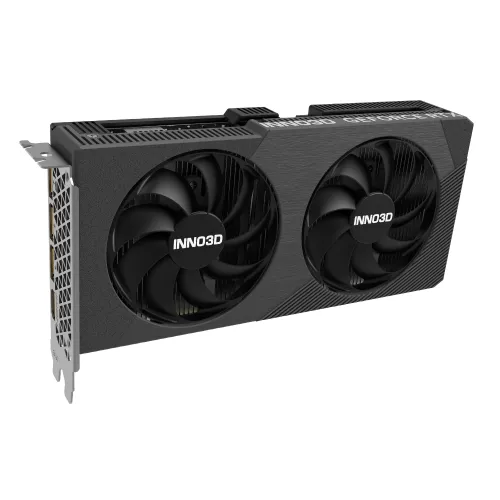

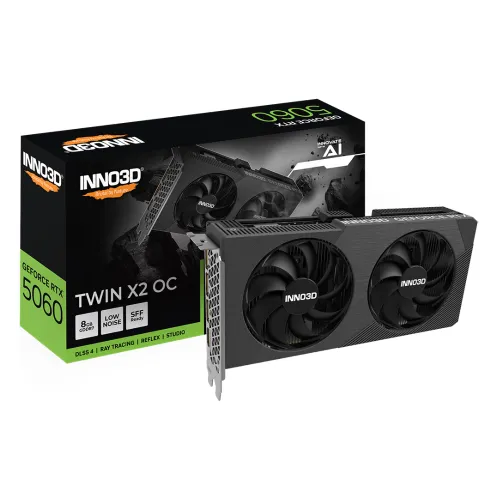

The INNO3D GeForce RTX 5060 TWIN X2 OC V2 is a high-efficiency, mainstream graphics card that introduces NVIDIA’s Blackwell architecture and the revolutionary GDDR7 memory standard to the 60-series. Released in mid-2025, this "V2" iteration optimizes the cooling shroud and PCB layout to deliver a more compact, space-saving design without compromising on factory-overclocked performance.
Built on the GB206 GPU (TSMC 4N process), the card features 3,840 CUDA cores, representing a significant core-count increase over its predecessor. As an "OC" model, it boasts a factory-tuned boost clock of 2527 MHz. It is equipped with 4th Gen Ray Tracing Cores and 5th Gen Tensor Cores, enabling NVIDIA DLSS 4. This latest AI suite utilizes "Multi Frame Generation" to provide massive framerate gains in modern AAA titles at 1080p and 1440p resolutions.
The standout feature of this card is the 8GB of GDDR7 VRAM. Operating at an effective speed of 28 Gbps on a 128-bit bus, it delivers a memory bandwidth of 448 GB/s. This 40% increase in bandwidth over the previous generation ensures the card can handle high-resolution textures and complex ray-traced lighting with significantly reduced latency.
TWIN X2 Cooling: The V2 design uses dual 88mm scythe fans and nickel-plated heat pipes. Its compact 250mm length and dual-slot thickness make it highly compatible with ITX and smaller mATX cases.
Connectivity: Future-proof I/O includes three DisplayPort 2.1b and one HDMI 2.1b, supporting up to 8K at 165Hz.
Power: Highly efficient with a TGP of 145W, it requires only a single 8-pin PCIe power connector and a 550W PSU.
