| Graphics Card | ||
| Type | GDDR7 | |
| Size | 8GB | |
| Resolution | 4K at 480Hz or 8K at 165Hz with DSC | |
| Core Clock | Boost Clock: 2527MHz Base Clock: 2280MHz |
|
| Memory Clock | 28Gbps | |
| BUS Type | PCI Express Gen 5 | |
| Memory Interface | 128-bit | |
| CUDA Cores | 3840 | |
| Display Port | 3x DisplayPort 2.1b | |
| HDMI | 1x HDMI 2.1b HDCP: 2.3 |
|
| Connectors | 1x PCIe 8-pin cables | |
| Recommended PSU | 550W | |
| Multi Display | 4 | |
| Dimensions | Length: 250mm Height: 116mm Width: 41mm |
|
| Others | NVIDIA DLSS 4 Real-Time Ray Tracing Ray Tracing Cores: 4th Generation, 58 TFLOPS Tensor Cores: 5th Generation, 614 AI TOPS NVIDIA Architecture: Blackwell NVIDIA Ansel NVIDIA FreeStyle NVIDIA ShadowPlay OS Certification: Windows 11, Linux, FreeBSDx86 NVIDIA Highlights NVIDIA G-SYNC-Ready Game Ready Drivers NVIDIA Studio Drivers NVIDIA GPU Boost Vulkan API 1.4 NVIDIA Encoder: 1x Ninth Generation NVIDIA Decoder: 1x Sixth Generation DirectX: 12 Ultimate OpenGL: OpenGL 4.6 |
|
| Warranty | 3 Years Warranty | |

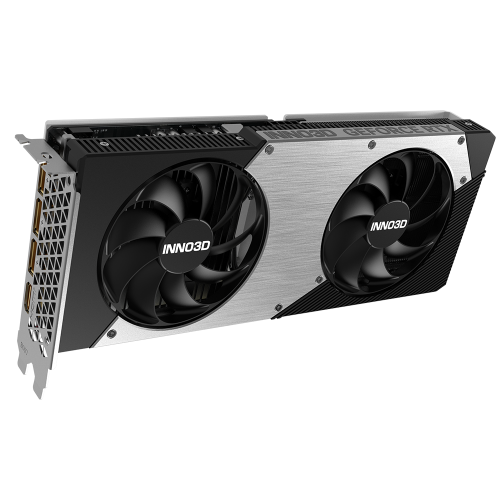

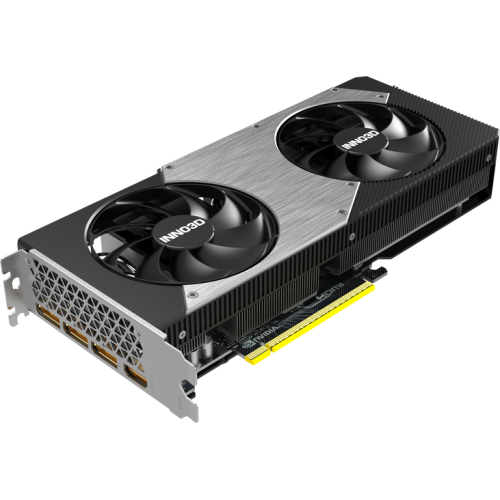

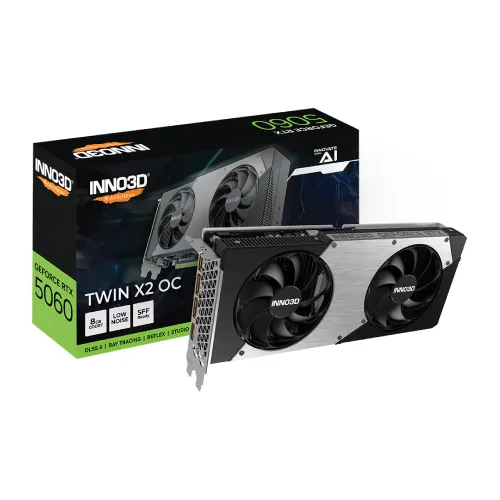

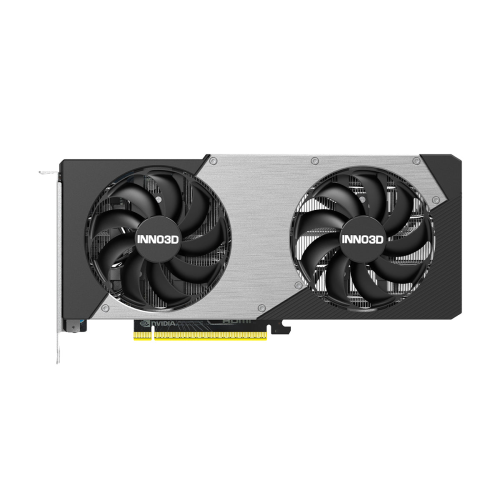

About INNO3D GeForce RTX 5060 TWIN X2 OC
The INNO3D GeForce RTX 5060 TWIN X2 OC is engineered to be the sweet spot for high-refresh-rate 1080p and capable 1440p gaming, leveraging NVIDIA's cutting-edge Blackwell architecture. This OC (Overclocked) variant features 3,840 CUDA Cores, a significant increase over the previous generation, and boasts a high boost clock up to 2527 MHz.
The card's most notable upgrade is its memory subsystem. It is one of the first mainstream GPUs to utilize 8GB of ultra-fast GDDR7 memory, clocked at an effective speed of 28 Gbps across a 128-bit bus. This translates to an impressive memory bandwidth of 448 GB/s, a substantial jump that enhances performance, particularly with ray tracing and high-resolution textures.
Built on the Blackwell architecture, the RTX 5060 includes 4th-generation Ray Tracing Cores and powerful 5th-generation Tensor Cores, delivering 614 AI TOPS for accelerated features. This power is dedicated to technologies like NVIDIA DLSS 4 with Multi Frame Generation and Neural Rendering, which multiply performance and realism in modern AAA titles.
The INNO3D TWIN X2 OC cooling solution ensures stability under its factory overclock. It employs a compact, dual-slot design (~250mm long) with two optimized fans, making it an excellent fit for smaller and standard ATX chassis. The GPU is power-efficient, requiring a single 8-pin PCIe power connector with a recommended 550W PSU. Connectivity is future-proofed with three DisplayPort 2.1b and one HDMI 2.1b output.
