| Graphics Card | ||
| Type | GDDR7 | |
| Size | 16GB | |
| Resolution | 4K at 480Hz or 8K at 165Hz with DSC | |
| Core Clock | Boost Clock: 2602MHz Base Clock: 2235MHz |
|
| Memory Clock | 28Gbps | |
| BUS Type | PCI Express Gen 5 | |
| Memory Interface | 128-bit | |
| CUDA Cores | 3840 | |
| Display Port | 3x DisplayPort 2.1b | |
| HDMI | 1x HDMI 2.1b HDCP: 2.3 |
|
| Connectors | 1x PCIe 8-pin cables | |
| Recommended PSU | 650W | |
| Multi Display | 4 | |
| Dimensions | Length: 250mm Height: 116mm Width: 41mm |
|
| Others | NVIDIA DLSS 4 Real-Time Ray Tracing Ray Tracing Cores: 4th Generation, 72 TFLOPS Tensor Cores: 5th Generation, 759 AI TOPS NVIDIA Architecture: Blackwell NVIDIA Ansel NVIDIA FreeStyle NVIDIA ShadowPlay OS Certification: Windows 11, Linux, FreeBSDx86 NVIDIA Highlights NVIDIA G-SYNC-Ready Game Ready Drivers NVIDIA Studio Drivers NVIDIA GPU Boost Vulkan API 1.4 NVIDIA Encoder: 1x Ninth Generation NVIDIA Decoder: 1x Sixth Generation DirectX: 12 Ultimate OpenGL: OpenGL 4.6 |
|
| Warranty | 3 Years Warranty | |
About INNO3D GeForce RTX 5060 Ti

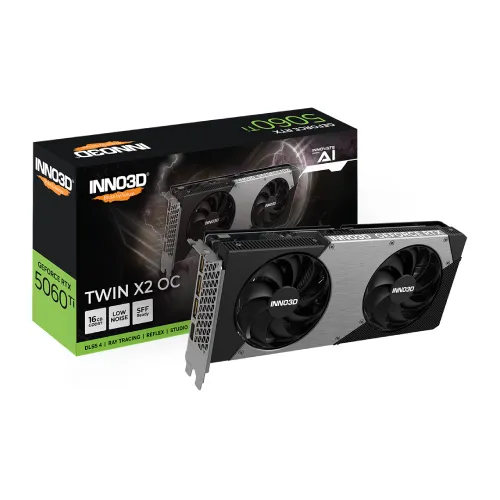

The INNO3D GeForce RTX 5060 Ti 16GB TWIN X2 OC establishes itself as a highly capable mid-to-high-range graphics card, designed to deliver exceptional performance for high-refresh-rate 1440p gaming and serious content creation. Built on NVIDIA's advanced Blackwell architecture, this model leverages significant core and memory advancements.
The GPU is equipped with 4,608 CUDA Cores and features a factory Boost Clock of up to 2602 MHz. Crucially, it comes with a massive 16GB of ultra-fast GDDR7 memory. Operating on a 128-bit bus, this GDDR7 memory runs at an effective speed of 28 Gbps, yielding a substantial memory bandwidth of 448 GB/sec. The combination of high core count and abundant, high-speed VRAM ensures smooth performance, even in the most demanding titles with maxed-out texture settings.
The Blackwell architecture introduces enhanced capabilities like 4th-generation Ray Tracing Cores and 5th-generation Tensor Cores, enabling state-of-the-art features such as NVIDIA DLSS 4 with Multi Frame Generation and Neural Rendering. With 759 AI TOPS of performance, it delivers a massive AI boost for both gaming and creative applications like video editing and 3D rendering.
INNO3D's TWIN X2 OC cooling system is optimized for thermal efficiency, featuring a compact, two-slot design (approx. 250mm long) with dual fans and a dense heatsink array. This ensures the card runs cool and quiet under its overclocked conditions. Power is supplied via a single 8-pin PCIe connector, with a recommended 600W-650W PSU. This 16GB variant is the clear choice for users prioritizing long-term future-proofing and high-fidelity 1440p resolution.
