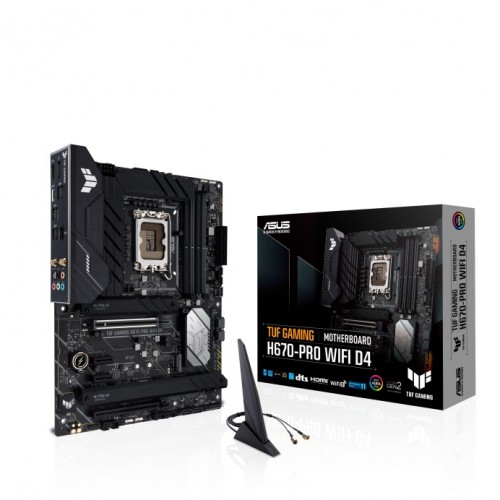

ASUS TUF H670-PRO WIFI D4 INTEL 12TH GEN ATX GAMING MOTHERBOARD

Best ASUS TUF H670-PRO WIFI D4 INTEL 12TH GAMING MOTHERBOARD In BD

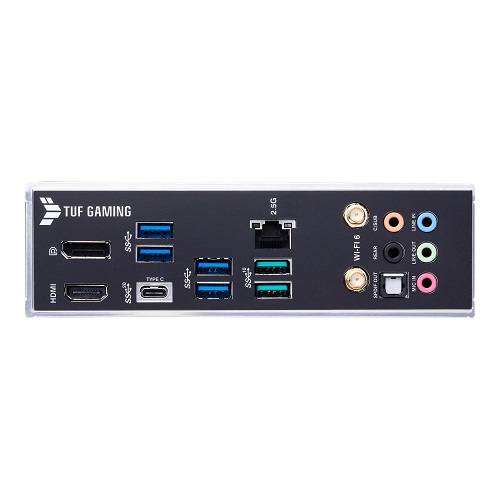

Utilize The Power Of 12th Generation Of Intel Processors With The ASUS TUF Gaming H670-PRO WIFI D4 LGA 1700 ATX Motherboard From ASUS. This Motherboard Features The Intel H670 Chipset And LGA 1700 Socket. Install Up To 128GB Of Dual-Channel DDR4 RAM Across Four Memory Slots, With Speeds Up To 5333 MHz Supported When Overclocking. Four SATA III And Four M.2 Connectors Allow You To Install A Wide Array Of Storage Drives, While The PCIe 5.0 X16 Slot Allows You To Install High-End Graphics Cards. The Rear I/O Panel Sports A USB 3.2 Gen 2x2 Type-C Port, Two USB 3.2 Gen 2 Type-A Ports And Four Gen 1 Type-A Ports. The Rear I/O Also Features An RJ45 Port That Supports A Wired 2.5 Gigabit Ethernet Connection And Two Wi-Fi Antenna Connectors That Can Be Used With The Included Antenna. There Is Also Five 3.5mm Audio Jacks As Well As An Optical S/PDIF Output. The ASUS TUF GAMING H670-PRO WIFI D4 LGA 1700 ATX Motherboard Is Compatible With The Windows 10 And Windows 11 64-Bit Operating Systems.

Asus TUF Gaming H670-Pro WIFI D4 Motherboard comes with upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core processors, plus support for faster memory and storage. The Asus TUF GAMING H670 motherboard is the perfect choice for your next high-core-count battle rig. In this Asus TUF Gaming H670-Pro WIFI D4, the innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. This Asus TUF GAMING motherboard provides a high-performance gaming package with a long list of features and also includes ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming. This motherboard has 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly.

Power Design

The Onboard VRMs Feature 14+1 DRMOS Power Stages That Combine High-Side And Low-Side MOSFETs And Drivers Into A Single Package Delivering The Power Efficiency That 12th Gen Intel Core Processors Demand. The Power Stages Are Each Rated To Handle 50 Amperes To Provide Stable Performance For Current And Future Intel Processors. Additionally, The Digi+ Voltage-Regulator Module, Or VRM, Ensures Smooth And Clean Power Delivery To The CPU At All Times.

Six-Layer PCB Design

Six Printed Circuit Board (PCB) Layers Optimize Heat Management For Critical Components, Providing More Headroom To Push CPUs Beyond Stock Speeds.

Built TUF

Military-Grade TUF Chokes Deliver Steady Power To The CPU, Helping To Improve System Stability, While TUF Capacitors Deliver +20% Temperature Tolerance And 2.5 Times Longer Lifespan.

ProCool Connectors

Enhanced EATX 4- And 8-Pin Sockets Are Designed To Be More Durable, Preventing Hotspots And Connector Failures. Furthermore, ProCool Sockets Are Built To Tight Specifications To Ensure Flush Contact With The PSU Power Lines.

Multi-Layered PCB

Six Printed Circuit Board (PCB) Layers Optimize Heat Management For Critical Components, Providing More Headroom To Push CPUs Beyond Stock Speeds.

VRM Heatsink & M.2 Heatsinks

The Extensive Surface Area Of The VRM Heatsink Covers The VRMs And Chokes To Improve Heat Dissipation. In Addition, Three Out Of Four M.2 Slots Have Dedicated Heatsinks, Keeping M.2 SSDs At Optimal Operating Temperatures To Ensure Consistent Performance And Reliability.

Comprehensive Fan Controls

Each Cooling Header Can Be Set To Monitor And React To Three User-Configurable Thermal Sensors For Workload-Based Cooling, And All Settings Can Be Managed By Fan Xpert4 Or Via The UEFI. An Integrated AIO System Enables Full Control Of PWM Or DC Water Pumps, Making It Ideal For Custom Or Self-Contained Cooling Setups. All Onboard Chassis Fan Headers Support Auto-Detection Of PWM Or DC Fans In Addition To AIO, And A Dedicated Integrated Circuit Protects Each Fan Header From Excess Heat And Electrical Currents.

SafeSlot & SafeDIMM

PCIe 5.0 Is 2x Faster Than PCIe 4.0, So ASUS Has Adapted Their SMT Manufacturing Process For The Faster SafeSlot To Ensure The Highest Data Speeds. SafeSlot Is A Reinforced Metal Sheath Added To PCIe Slots To Keep Cards Firmly Installed. Meanwhile, ASUS SafeDIMM Sheathes Support And Protect Memory Modules On Select ASUS Motherboards, Empowering You To Insert Your Modules With Speed, Accuracy, And Confidence.

ESD Guards & DRAM Overvoltage Protection

ESD Guards Prolong The Life Of Components While Preventing Damage From Electrostatic Discharge, Providing Protection For Up To +/- 10 KV Of Air Discharge And +/- 6 KV Of Contact Discharge. Surface-Mounted TVS Diodes In A Dual-Line Package Help Protect Your PC From Voltage Spikes. In Addition, Onboard Resettable Fuses Prevent Overcurrent And Short-Circuit Damage. This Extends Beyond I/O Ports To DRAM To Safeguard The Lifespan Of Your System And Connected Devices.

Wi-Fi 6 & 2.5Gb Ethernet

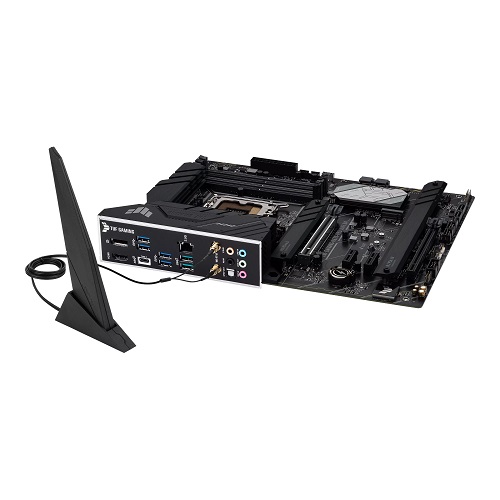

The Intel Wi-Fi 6 Module Is Compatible With The 802.11ax Standard And Pushes Theoretical Peak Bandwidth Up To An Incredible 2.4 Gb/S. It's Optimized For More Efficient Operation On Crowded Networks With A Lot Of Competing Traffic. The Included Wi-Fi Antenna Designs With Four-Way Positioning That Enables Better Signal Reception, And A Magnetic Base To Secure The Antenna On The Top Or Side Of The PC Case. Additionally, Onboard 2.5Gb Ethernet Gives Your Wired Connection A Boost With Speeds That Are Up To 2.5x Faster Than Standard Ethernet Connections. This Translates To Fast File Transfers, Low-Lag Online Gaming, And High-Res Video Streaming.

Two-Way AI Noise Cancelation

This ASUS-Exclusive Utility Leverages A Massive Deep-Learning Database To Reduce Background Noise From The Microphone And Incoming Audio While Preserving Voices. Distracting Keyboard Clatter, Mouse Clicks, And Other Ambient Noises Are Removed So You Can Hear And Be Heard With Clarity While Gaming Or During Calls.
