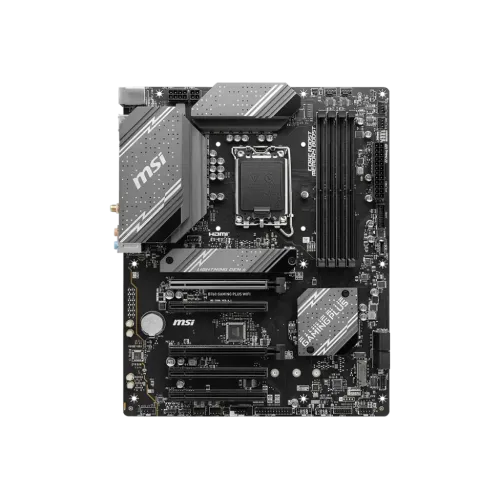

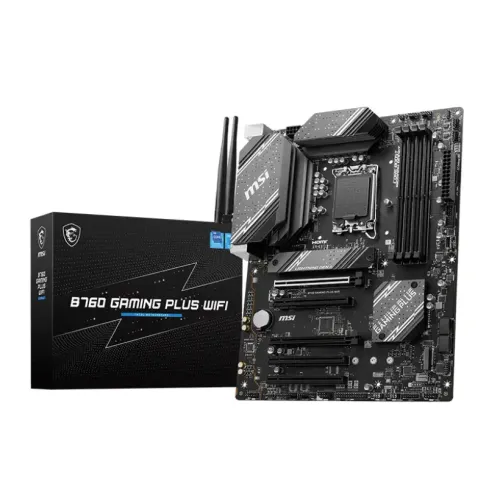

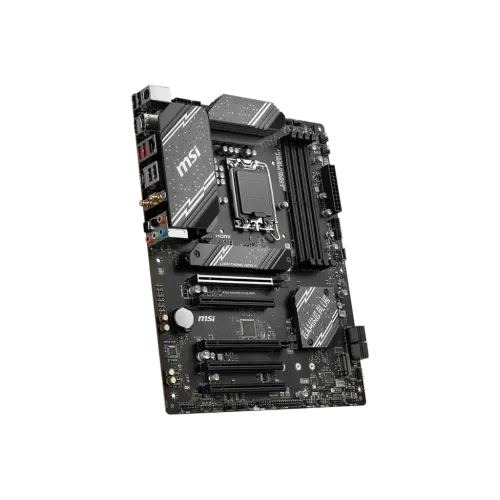

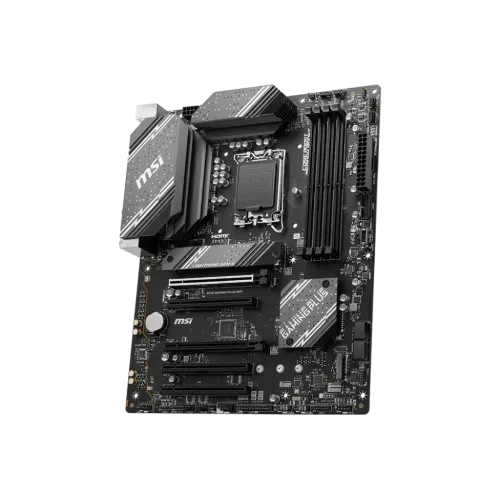

-500x500.png "MSI B760 GAMING PLUS WIFI ATX Motherboard")
-500x500.png "MSI B760 GAMING PLUS WIFI ATX Motherboard")
-500x500.png "MSI B760 GAMING PLUS WIFI ATX Motherboard")
-500x500.png "MSI B760 GAMING PLUS WIFI ATX Motherboard")
-500x500.png "MSI B760 GAMING PLUS WIFI ATX Motherboard")
| BASIC INFORMATION | ||
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700 |
|
| Form Factor | ATX 243.84mmx304.8mm |
|
| Basic Information | ||
| Chipset | INTEL B760 | |
| Expansion Slots | ||
| PCI | 5x PCI-E x16 slot |
|
| Memory | ||
| Memory Type | DDR5 | |
| Slots | 4 | |
| Supported Memory | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
|
| Maximum Memory | 192GB | |
| Storage | 2x M.2 |
|
| Graphics | ||
| Graphics | 1x HDMI |
|

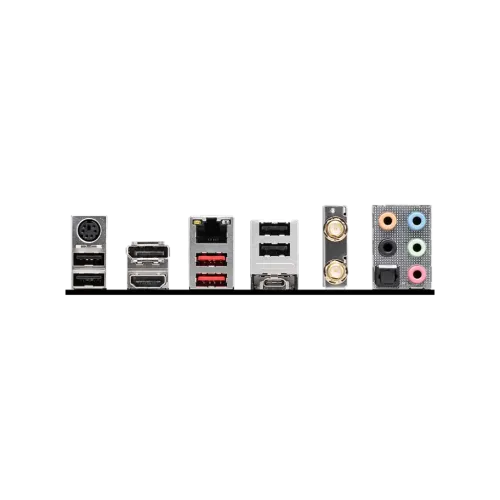

| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Audio | Realtek ALC897 Codec |
|
| Display Port | 1x DisplayPort | |
| LAN | Realtek RTL8125BG 2.5G LAN | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) |
|
| USB Port | 4x USB 2.0 (Rear) |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | 4x EZ Debug LED | |
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |
The MSI B760 GAMING PLUS WIFI ATX Motherboard is a high-performance motherboard designed for gaming enthusiasts. It supports both 14th 13th and 12th Gen Intel Core, Pentium Gold, and Celeron processors for the LGA 1700 socket, ensuring compatibility with a wide range of processors. The MSI B760 GAMING PLUS WIFI Motherboard supports DDR5 memory with a dual-channel configuration, allowing for fast and efficient data transfer at speeds of 6800+MHz (OC). It features an enhanced power design with a 12+1 Duet Rail Power System, P-PAK, and 8-pin + 4-pin CPU power connectors, ensuring stable power delivery and optimal performance. The 14th Gen Motherboard also incorporates Core Boost and Memory Boost technologies to enhance performance further. For improved thermals, the motherboard includes an extended heatsink and MOSFET thermal pads rated for 7W/mK, ensuring efficient heat dissipation. Additional choke thermal pads are also included to support high-performance systems and provide a reliable gaming experience. The MSI B760 GAMING PLUS WIFI offers lightning-fast gaming experiences with a PCIe 4.0 slot, Lightning Gen 4 x4 M.2 slot with M.2 Shield Frozr, and Turbo USB 3.2 Gen 2 10G for high-speed data transfer. It also features a 2.5G LAN with Wi-Fi 6E solution, providing upgraded network connectivity for professional and multimedia use. The high-quality PCB is constructed with a 6-layer design using 2oz thickened copper for improved durability and performance. The MSI B760 GAMING PLUS WIFI Motherboard offers Audio Boost technology, and delivers studio-grade sound quality for an immersive gaming experience.
