| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 8000 / 7000 Series Desktop Processors |
|
| Chipset | AMD A620 Chipset | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
|
| Form Factor | Micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot AMD A620 Chipset 2 x PCIe 3.0 x1 slots |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II |
|
| Maximum Memory | 128GB |
|
| Graphics | ||
| Graphics | 2 x DisplayPort** 1 x HDMI port*** ** Support max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
|
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD A620 Chipset 4 x SATA 6Gb/s ports |
|
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10 | |
| Audio | 3 x Audio jacks |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| Display Port (s) | 2 x DisplayPort | |
| Others | ||
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED Aura Sync - Aura RGB header - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z Norton 360 for Gamers (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Warranty | 3 Years | |

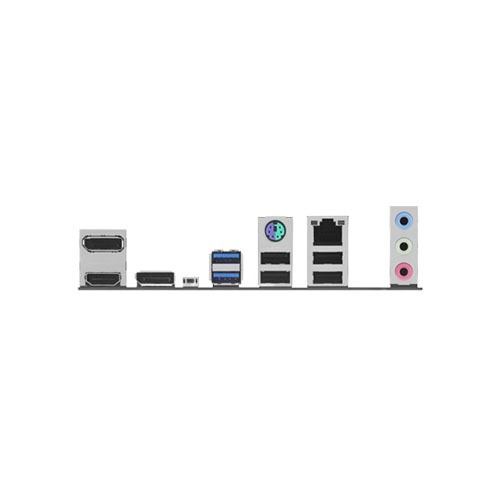

TUF GAMING A620M-PLUS motherboard, designed for high-end gaming enthusiasts. Powered by the latest AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors and AMD A620 Chipset, this motherboard supports up to 128GB of DDR5 memory with a maximum speed of 6400+(OC). The OptiMem II technology ensures stable and reliable performance, even under heavy loads. Equipped with advanced graphics support, this motherboard features 2 x DisplayPort and 1 x HDMI™ port that enable you to enjoy stunning visuals at a resolution of up to 8K@60Hz and 4K@60Hz, respectively. Additional expansion slots include 1 x PCIe 4.0 x16 slot and 2 x PCIe 3.0 x1 slots, and storage options include 2 x M.2 slots and 4 x SATA 6Gb/s ports supporting both PCIe RAID 0/1/10 and SATA RAID 0/1/10. TUF GAMING A620M-PLUS also features Realtek 7.1 Surround Sound High Definition Audio CODEC providing crystal clear audio output through dedicated audio PCB layers, premium audio capacitors, and audio shielding. The back panel I/O ports feature 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 2 x DisplayPort, 1 x HDMI™ port, and 1 x Realtek 2.5Gb Ethernet port. Designed with this motherboard is equipped with DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, and Stainless-Steel Back I/O. EZ DIY features like BIOS FlashBack™ button, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, and ASUS UEFI BIOS EZ Mode make it easy to customize your system. Additionally, Armoury Crate software provides features like Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving, and Two-Way AI Noise Cancellation. This micro-ATX form factor measures 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) and comes with a 3-year replacement warranty.
