GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard

GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard
GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard
GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard
GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard
-5 %
GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard
GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard
GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard
GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard
GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard
Product Price23,650৳
Special Price22,500৳
Stock Status
In Stock
Product code
10583
Brand
Gigabyte
Product model B760M GAMING X AX DDR5
Warranty 3 years
Total Reviews

Cash Discount Price

22,500৳
Check available payment method
Contact for bulk quantity: 01973167985

EMI Price

23,670৳
Starting from 7,890৳/month. For Discount
Price Click here to view 25 banks EMI Plans
Ex Tax: 22,500৳
***অর্ডার করার পূর্বে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে।
BASIC INFORMATION
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Basic Information
Chipset Intel B760 Express Chipset
Audio 1 x front panel audio header 3 x audio jacks
Expansion Slots
PCI

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Memory
Memory Type DDR5
Slots 4
Supported Memory

Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory 192GB
Storage

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors

Graphics
Graphics

Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Connector & Ports
HDMI 1x HDMI
Display Port 1x DisplayPort
LAN

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
1 x RJ-45 port

Wireless

Intel Wi-Fi 6E AX210 (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel Wi-Fi 6E AX211 (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.2)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Audio

Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Internal I/O Ports

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

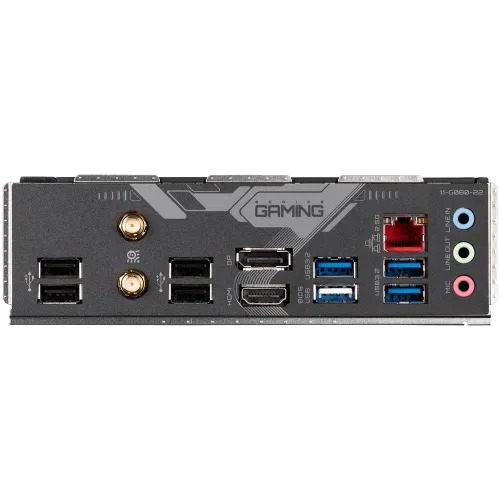

Back Panel Connectors
3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI 2.0 port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks

USB Port

Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Bundled Software

Norton Internet Security (OEM version)
LAN bandwidth management software

Special Features

Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus

WARRANTY INFORMATION
Warranty 3 years

GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard

The GIGABYTE B760M GAMING X AX is a high-performance motherboard designed for gaming enthusiasts and power users. It supports both 14th, 13th and 12th-generation Intel processors with its LGA 1700 socket, ensuring compatibility with the latest CPU technologies. This 14th Gen Motherboard is its Hybrid 8+1+1 Phases Digital VRM solution, which provides exceptional power delivery and stability for optimal performance. This ensures that the motherboard can handle demanding tasks and overclocking without any issues. The motherboard supports Dual Channel DDR5 memory, allowing for faster data transfer rates and improved multitasking capabilities. With four DIMM slots and XMP memory module support, users can easily install and configure high-speed RAM for smooth and responsive system performance. The GIGABYTE B760M GAMING X AX motherboard. It features two PCIe 4.0 x4 M.2 connectors, enabling lightning-fast storage solutions. Additionally, the motherboard incorporates an advanced thermal design and M.2 Thermal Guard to maintain VRM power stability and optimize M.2 SSD performance, preventing thermal throttling and ensuring reliable operation. The EZ-Latch feature of the PCIe 4.0x16 slot allows for easy installation and removal of graphics cards, making it convenient for users who frequently upgrade their GPUs. The motherboard also offers fast networking capabilities with 2.5GbE LAN and Wi-Fi 6E 802.11ax support, ensuring low latency and high-speed connectivity for online gaming and other network-intensive tasks. The GIGABYTE B760M GAMING X AX provides a front USB-C® port with a 10Gb/s transfer speed, as well as DisplayPort (DP) and HDMI ports for multiple display setups. This allows users to connect various peripherals and external devices with ease. The Smart Fan 6 feature is designed to keep the system cool and quiet. It includes multiple temperature sensors and hybrid fan headers with FAN STOP technology, enabling precise control over fan speeds and optimizing cooling performance while minimizing noise levels. The Q-Flash Plus, allows users to update the motherboard's BIOS firmware without the need to install the CPU, memory, and graphics card. This feature provides a convenient and hassle-free method for keeping the system up to date with the latest firmware releases. The GIGABYTE B760M GAMING X AX DDR5 motherboard offers a comprehensive range of features and technologies for gamers and power users seeking exceptional performance, reliable connectivity, and convenient upgradability.


see more

Quick Compare

Product Details
Product GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard ASUS ROG STRIX B560-A GAMING WIFI 10th and 11th Gen ATX Motherboard MSI MAG B760M MORTAR DDR5 mATX Motherboard GIGABYTE B760M GAMING X AX DDR4 mATX Motherboard
Image GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard ASUS ROG STRIX B560-A GAMING WIFI 10th and 11th Gen ATX Motherboard MSI MAG B760M MORTAR DDR5 mATX Motherboard GIGABYTE B760M GAMING X AX DDR4 mATX Motherboard
Price 23,650৳ 22,500৳ 23,800৳ 22,690৳ 24,400৳ 22,200৳ 22,934৳ 21,800৳
Model B760M GAMING X AX DDR5 ASUS ROG STRIX B560-A GAMING MAG B760M MORTAR B760M GAMING X AX
Brand Gigabyte ASUS MSI Gigabyte
Availability In Stock In Stock In Stock In Stock
Rating
Based on 0 reviews.

Based on 1 reviews.

Based on 0 reviews.

Based on 0 reviews.

Write a review

Note: HTML is not translated!
Bad Good

What is the GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard price in bd 2024?

The Gigabyte B760M GAMING X AX DDR5 Motherboard price in BD is 22,500৳. In today's market on 27-02-2024. PC House offers you the lowest price of Gigabyte B760M GAMING X AX DDR5 Motherboard: 22,500৳ instead of 23,650৳ regular price. The Gigabyte B760M GAMING X AX DDR5 Motherboard is In Stock now in our store (Call us to know about details of this product). 7 customer buy this product From 1404 visitors. Follow us on Facebook to stay updated with the latest offers. Subscribe our YouTube channel for product reviews. You can Order Gigabyte B760M GAMING X AX DDR5 online, pay with online payment gateway or Cash on delivery (in Dhaka city) and get 2-3 day Express delivery anywhere in Bangladesh or visit our Showroom for more gift.
