| Basic Information | ||
| Others | Socket: AM5 | |
| BASIC INFORMATION | ||
| Chipset | AMD B840 | |
| Memory | 4x DDR5 UDIMM, Max 256GB Memory Support: DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s |
|
| Operating System | Windows® 11 64-bit | |
| Storage | 2x M.2 slots (M.2_1: PCIe 4.0 x4, M.2_2: PCIe 4.0 x4) 4x SATA 6G |
|
| Audio | Realtek® ALC897, 7.1-Channel High Definition Audio | |
| Feature | Expansion Slots: 5x PCI-E x16 slots Slot Details: PCI_E1: PCIe 4.0 x16 (CPU) PCI_E2: PCIe 3.0 x1 (Chipset) PCI_E3: PCIe 3.0 x1 (Chipset) PCI_E4: PCIe 3.0 x4 (Chipset) PCI_E5: PCIe 3.0 x1 (Chipset) |
|
| LED FEATURE | 4x EZ Debug LEDs | |
| ONBOARD GRAPHICS | 1x HDMI™ (HDMI 2.1, 4K @ 60Hz) | |
| BASIC Information | ||
| Memory | Supports AMD POR Speed & JEDEC Speed Memory Overclocking & AMD EXPO™ Dual-Channel, Non-ECC, Unbuffered CUDIMM Clock Driver Bypass |
|
| Basic Information | ||
| CPU | AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors | |
| Key Feature | ||
| Frequency | Overclocking Frequency: 1DPC 1R: Up to 8000+ MT/s 1DPC 2R: Up to 6400+ MT/s 2DPC 1R: Up to 6400+ MT/s 2DPC 2R: Up to 4800+ MT/s |
|
| Key Features | ||
| Form Factor | ATX (243.84mm x 304.8mm) | |
| Connectivity | ||
| Bluetooth | 5.4 | |

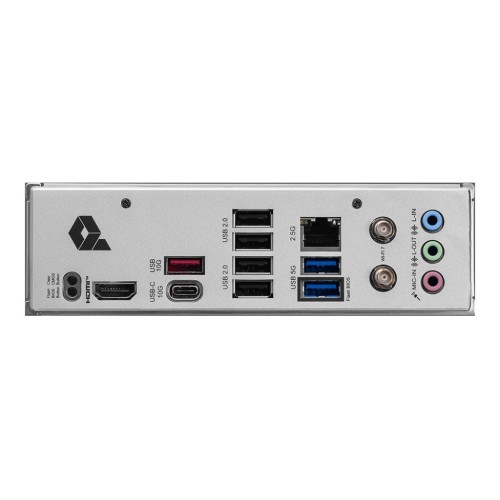

| USB | Rear: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C |
|
| Connector & Ports | ||
| LAN | Realtek® 8125D 2.5G LAN | |
| RAID | RAID 0, RAID 1, RAID 10 | |
| Internal I/O Ports | 1x ATX_PWR, 1x CPU_PWR 1x CPU Fan, 1x Combo Fan, 4x System Fans 2x Front Panel, 1x JCI, 1x JAUD, 1x JCOM 2x RGB, 2x ARGB |
|
| WiFi | Wi-Fi 7 (MU-MIMO, 2.4GHz/5GHz/6GHz, up to 5.8Gbps) | |
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

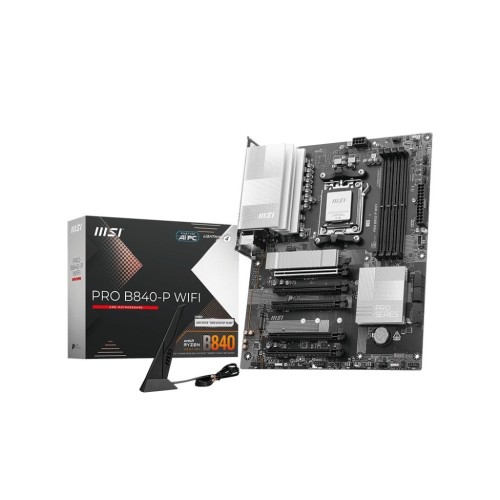

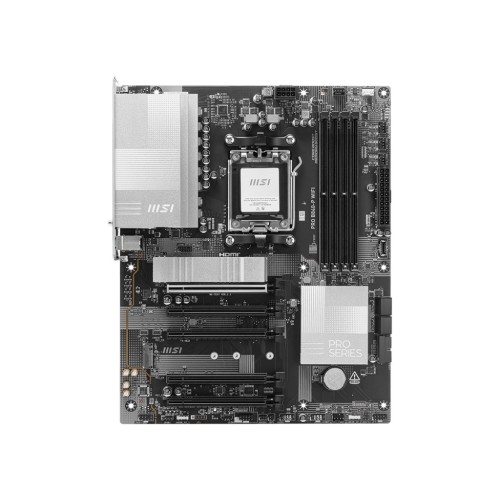

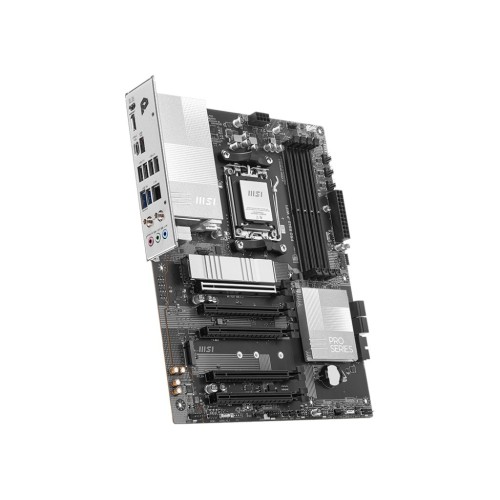

MSI PRO B840-P WIFI AMD AM5 ATX Motherboard
