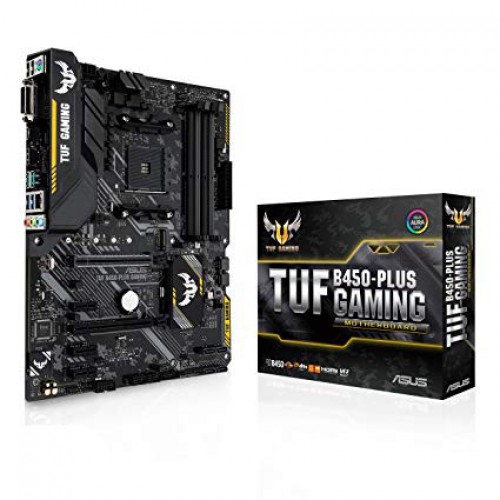

ASUS TUF B450-PLUS AMD RGB GAMING MOTHERBOARD

ASUS TUF B450-PLUS AMD RGB GAMING MOTHERBOARD

Price: Out Of Stock
Status: Out Of Stock
Product Code: 1238
Brand: ASUS
Key Features
  • Model: Asus TUF B450M-PLUS Gaming
  • AMD AM4 Socket for 3rd/2nd/1st AMD Ryzen
  • Military-grade TUF components
  • TUF Protection with SafeSlot
  • ASUS exclusive Aura Sync RGB lighting
View More Info

Payment Options

Quantity :
  • Specification
  • Description
  • Reviews ( 0)

Specification:

BASIC INFORMATION
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ
Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA
ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor ATX Form Factor

12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Basic Information
Chipset AMD B450
Audio Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2

Audio Feature :

- Exclusive DTS Custom for GAMING Headsets.

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral
interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of
the sensitive audio signals

- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with
exceptional clarity and fidelity

- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
CPU AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™
with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors

Supports CPU up to 8 cores
Memory
Memory Type:

Dual Channel DDR4 Memory Technology

Slots:

4 x DIMM

Supported Memory:

DDR4 3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

Maximum Memory:

64 GB
Storage AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation
Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA &
PCIE 3.0 x 4 mode)*1

AMD Athlon™ with Radeon™ Vega Graphics Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*1

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™
Vega Graphics/ Ryzen™ 1st Generation Processors :

2 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10

AMD B450 chipset :

4 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10
Graphics
Graphics Multi-VGA output support : HDMI/DVI-D ports

- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz

- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Connector & Ports
HDMI 1 x HDMI port
LAN Realtek® RTL8111H

TUF LANGuard
Internal I/O Ports 1 x Aura RGB Strip Header

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1
Gen 1 port(s) (19-pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA &
PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

3 x Chassis Fan connector(s) (3 x 4 -pin)

1 x AIO_PUMP connector (1 x 4 -pin)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Clear CMOS jumper(s)

1 x COM port header
USB Port AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™
Vega Graphics/ Ryzen™ 1st Generation Processors :

2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™
Vega Graphics/ Ryzen™ 1st Generation Processors :

1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM)

AMD B450 chipset :

2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)

AMD B450 chipset :

2 x USB 3.1 Gen 1 port(s) (2 at mid-board)

AMD B450 chipset :

6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
WARRANTY INFORMATION
Manufacturing Warranty 03 years

Description :

ASUS TUF B450-PLUS AMD RGB GAMING MOTHERBOARD

  • Fan Xpert 4 Core: Ensures every fan achieves the best balance of cooling performance and acoustics
  • TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
  • Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
  • Exclusive DTS® Custom audio: Delivers positional cues to stereo headphones, helping you to pinpoint enemies and action
  • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear

    • TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.
    When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.

    TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships
    with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.
