| Basic Information | ||
| Special Features | ASUS TUF PROTECTION |
|
| BASIC INFORMATION | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors | |
| Chipset | AMD B650 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
|
| Audio | 3 x Audio jacks | |
| Expansion Slots | ||
| PCI | AMD Ryzen 7000 Series Desktop Processors |
|
| Memory | ||
| Slots | 4 DIMMs | |
| Supported Memory | DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory |
|
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | 2 x DisplayPort 1 x HDMITM port |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port | 2x DisplayPort | |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
|
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. | |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports |
|
| Internal I/O Ports | Fan and Cooling related |
|
| Others | ||
| Bundled Software | ASUS Exclusive Software |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

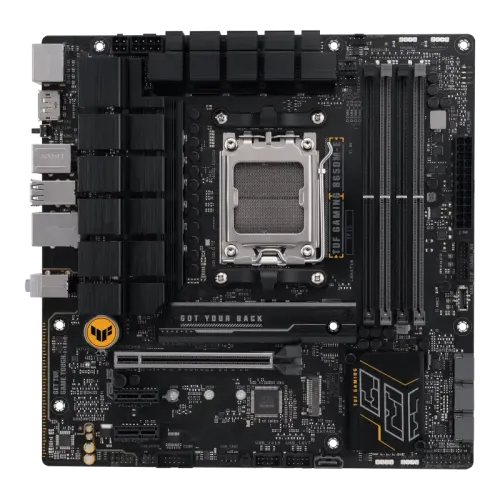

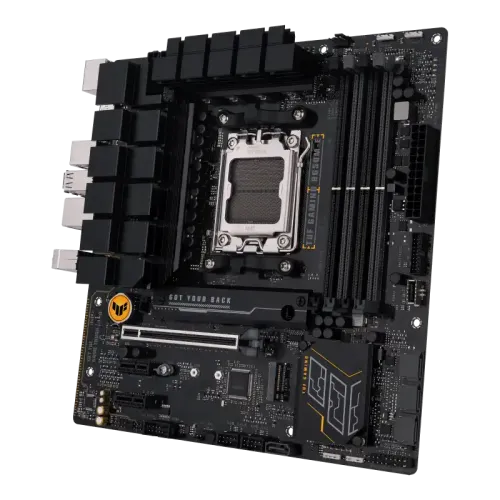

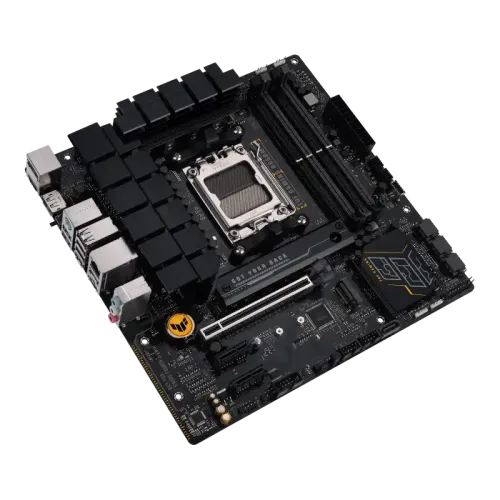

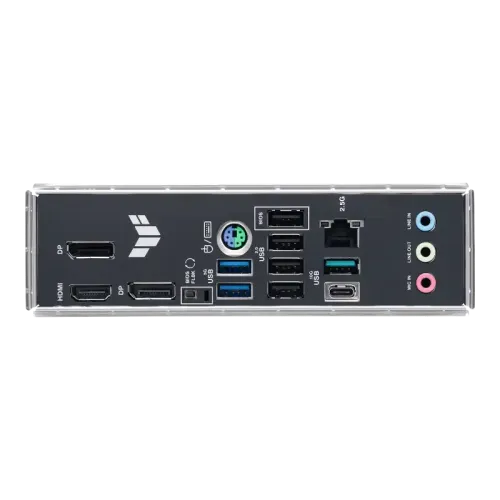

The ASUS TUF GAMING B650M-E motherboard is compatible with the latest AMD Ryzen 7000-series processors. This motherboard is built with military-grade components, an upgraded power solution, and an extensive cooling system, ensuring rock-solid and stable performance during marathon gaming sessions. It's not just about performance; this motherboard undergoes rigorous endurance testing to ensure it can withstand challenging conditions. Asus TUF GAMING B650M-E Motherboard features 8+2 power stages, PCIe 5.0 for M.2 storage, DDR5 memory module support, USB 3.2 Gen 2 Type-C, 2.5 Gb Ethernet. This motherboard also offers intelligent control, allowing you to fine-tune and optimize various aspects of your system, including CPU performance, power savings, and more. The UEFI BIOS provides easy configuration options for both beginners and experienced users. It even features advanced tuning capabilities for serious tweakers. The TUF GAMING B650M-E motherboard has an enlarged VRM heatsink, optimized M.2 heatsink design, and comprehensive fan controls. Asus TUF GAMING B650M-E Motherboard comes with ESD Guards, TUF LANGuard, and a stainless steel back I/O panel. It also offers convenient features like M.2 Q-Latch, which simplifies M.2 SSD installation, and Q-LED troubleshooting lights. The motherboard offers ultrafast networking, AI noise cancellation, and high-quality audio with DTS Audio Processing. Its RGB lighting can be customized through Aura Sync, creating a personalized gaming atmosphere.
