| BASIC INFORMATION | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors | |
| Chipset | AMD B650 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot AMD B650 Chipset 2 x PCIe 4.0 x1 slots |
|
| Memory | ||
| Memory Type | DDR5 | |
| Slots | 4 DIMMs | |
| Supported Memory | DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II |
|
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | 2 x DisplayPort 1 x HDMITM port |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port | 2x DisplayPort | |
| Wireless Communication module | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
|
| LAN | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
|
| Audio | 3 x Audio jacks | |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. | |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function |
|

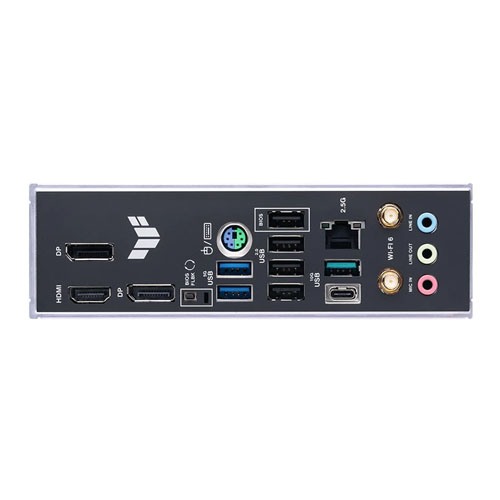

| USB Port | Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| Others | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers(60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot Core+ - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 Years | |

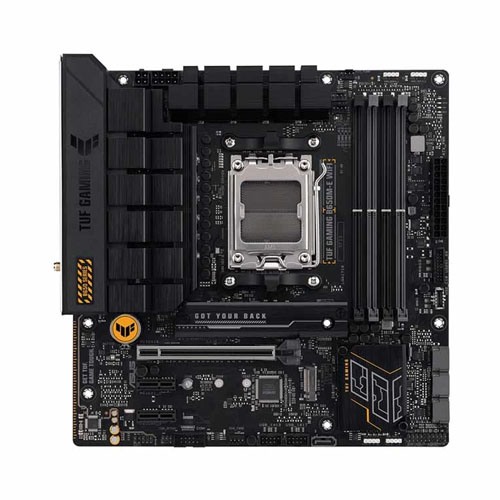

The Asus TUF GAMING B650M-E WIFI AMD AM5 micro-ATX Motherboard is a powerful and reliable option designed to meet the demands of gamers and PC enthusiasts. Built for the latest AMD Ryzen 7000 Series Desktop Processors and featuring the AMD B650 chipset, this motherboard delivers excellent performance and stability for gaming and multitasking. With its micro-ATX form factor measuring 9.6 inches by 9.6 inches, this motherboard provides a compact yet feature-rich platform for building your gaming rig. It supports DDR5 memory with overclocking capabilities, offering a maximum capacity of 192GB across four DIMM slots. The inclusion of OptiMem II and AMD EXTended Profiles ensures enhanced memory performance and overclocking flexibility. Graphics options are plentiful, with two DisplayPort and one HDMI port allowing for versatile display configurations. The PCIe 4.0 x16 slot supports high-performance graphics cards, while the AMD B650 chipset provides additional PCIe 4.0 x1 slots for expansion cards. Connectivity is comprehensive, with multiple USB ports including USB 3.2 Gen 2 and USB Type-C connectors for high-speed data transfer. The inclusion of Wi-Fi 6 and Bluetooth v5.2 ensures fast and reliable wireless communication, while the Realtek 2.5Gb Ethernet port offers high-speed wired networking. Storage options abound with support for two M.2 slots and four SATA 6Gb/s ports, allowing for fast and flexible storage configurations. RAID support via AMD RAIDXpert2 Technology further enhances data redundancy and performance. The motherboard is equipped with ASUS TUF PROTECTION features, including DIGI+ VRM for stable power delivery, ESD Guards for protection against electrostatic discharge, and TUF LANGuard for reliable networking. ASUS Q-Design elements such as M.2 Q-Latch and Q-LED indicators simplify installation and troubleshooting, while ASUS Thermal Solution ensures effective heat dissipation for optimal performance.
Asus TUF GAMING B650M-E WIFI Motherboard Features
Asus TUF GAMING B650M-E WIFI Price in BD
Looking for a reliable motherboard to power your gaming rig or workstation? Look no further than the Asus TUF GAMING B650M-E WIFI AMD AM5 micro-ATX Motherboard. Packed with features and built to withstand the demands of intense gaming sessions or heavy workloads, this motherboard offers exceptional performance at an affordable price. With support for AMD Ryzen 7000 Series Desktop Processors and DDR5 memory, along with PCIe 4.0 expansion slots and comprehensive connectivity options, it's the perfect choice for enthusiasts and professionals alike. Visit PC House today to get the latest price on this top-tier motherboard in Bangladesh.
