| BASIC INFORMATION | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors | |
| Chipset | AMD B650 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0/3.0 x16 slot(s) AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 4.0/3.0 x1 slots |
|
| M.2 Socket | Total supports 3 x M.2 slots | |
| Memory | ||
| Memory Type | DDR5 | |
| Slots | 4 DIMMs | |
| Supported Memory | 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort* 1 x HDMI port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port | 1x DisplayPort | |
| Wireless Communication module | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
|
| LAN | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
|
| Audio | 5 x Audio jacks | |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. | |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header |
|

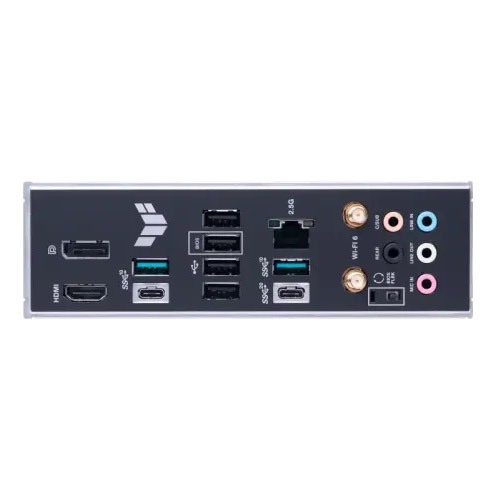

| USB Port | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
|
| Others | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header(s) - Addressable Gen 2 header(s) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 Years | |

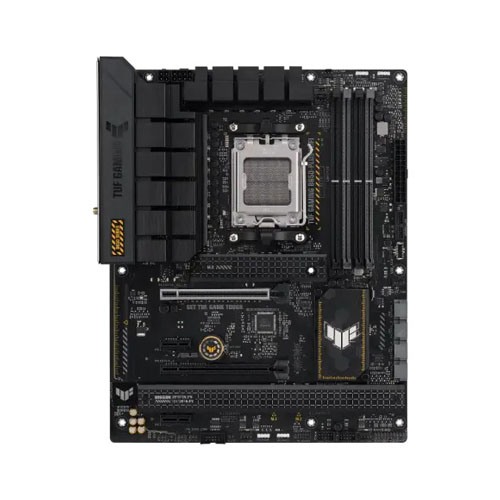

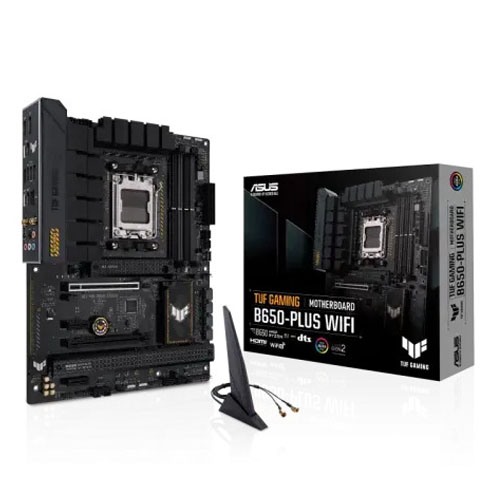

The Asus TUF GAMING B650-PLUS WIFI DDR5 AM5 ATX Motherboard is a powerhouse designed to elevate your gaming experience and productivity to new heights. Built to support AMD Ryzen 7000 Series Desktop Processors and equipped with the AMD B650 chipset, this motherboard offers exceptional performance, stability, and versatility for enthusiasts and professionals alike. With its ATX form factor measuring 12 inches by 9.6 inches, the Asus TUF GAMING B650-PLUS WIFI provides ample space for expansion and customization while fitting seamlessly into standard-sized PC cases. The inclusion of DDR5 memory support with four DIMM slots ensures lightning-fast data access and transfer speeds, making it ideal for gaming, content creation, and multitasking. Graphics capabilities are robust, with support for high-resolution displays through the DisplayPort and HDMI ports. The PCIe 4.0/3.0 expansion slots enable you to install powerful graphics cards for immersive gaming experiences or demanding professional applications. Connectivity options are comprehensive, featuring USB 3.2 Gen 2x2, USB 3.2 Gen 2, USB 2.0, Realtek 2.5Gb Ethernet, Wi-Fi 6, and Bluetooth v5.2. Whether you're gaming online, streaming content, or transferring files, you can count on reliable and high-speed connections. Storage solutions are abundant, with support for three M.2 slots and four SATA 6Gb/s ports, allowing you to configure your system with fast SSDs or high-capacity HDDs to suit your storage needs. AMD RAIDXpert2 Technology enhances data protection and performance through RAID configurations. The Asus TUF GAMING B650-PLUS WIFI is equipped with ASUS TUF PROTECTION features, including DIGI+ VRM, Enhanced DRAM Overcurrent Protection, ESD Guards, TUF LANGuard, Overvoltage Protection, and SafeSlot Core+, ensuring durability and reliability under demanding conditions.
Asus TUF GAMING B650-PLUS WIFI Price In BD
Dive into the world of gaming and productivity with the Asus TUF GAMING B650-PLUS WIFI DDR5 AM5 ATX Motherboard, now available at PC House. Discover the latest price for this cutting-edge motherboard designed for gamers, professionals, and enthusiasts alike. With its advanced features, including DDR5 support and AM5 compatibility, it's the perfect choice for building a high-performance PC setup. Don't miss out on this opportunity to elevate your computing experience with the Asus TUF GAMING B650-PLUS WIFI motherboard.
The B650 motherboard is a sought-after choice in Bangladesh for those building or upgrading their PCs. Known for its support of AMD Ryzen processors, this motherboard features DDR5 memory compatibility, PCIe 4.0 support, and multiple M.2 slots for high-speed storage. It also includes USB 3.2 ports for fast data transfer and robust connectivity options. While prices can vary based on features and retailers, it typically offers a good balance of performance and affordability for its class. For the most current and accurate pricing, it’s best to consult local electronics stores or online shopping platforms.
