| BASIC INFORMATION | ||
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 23.5cm | |
| Basic Information | ||
| Chipset | AMD B450 | |
| Audio | Realtek® ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out | |
| CPU | AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Athlon™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors |
|
| Memory | ||
| Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots |
|
| Memory | 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
|
| Connector & Ports | ||
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB LED strip header 2 x addressable LED strip headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
|

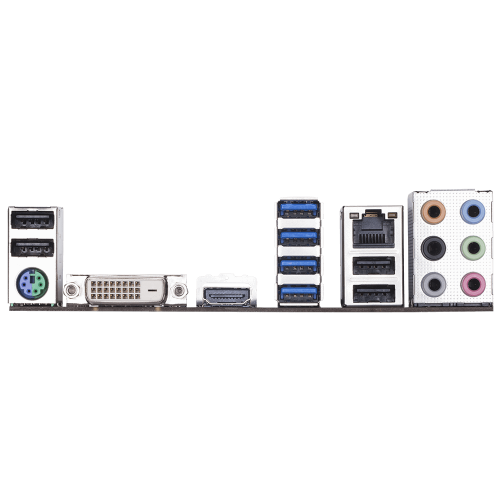

| USB Port | 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 3.1 Gen 1 ports on the back panel |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

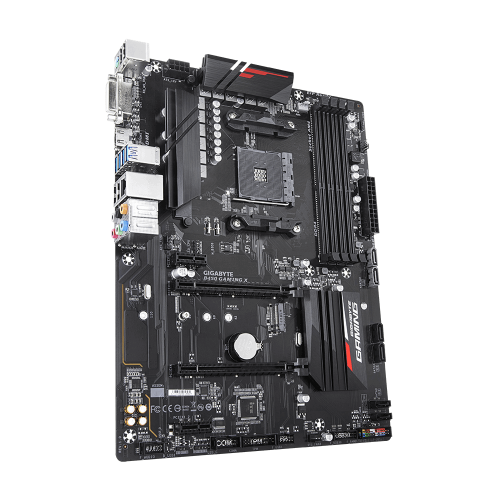

The GIGABYTE B450 Gaming X Motherboard from Gigabyte. Designed for primarily gaming and content creation, this ATX motherboard uses the B450 chipset to power demanding applications. Up to 64GB of dual-channel DDR4 RAM at 3600 MHz when overlocking can be installed across four memory slots for efficient multitasking and to run high-end games. The durable motherboard also features an M.2 SSD slot and supports up to six SATA III storage drives, which can be put into RAID 0, 1, or 10 configurations. Peripherals such as keyboards and mice can be plugged into the rear panel’s USB 2.0 Type-A ports while the USB 3.1 ports support speeds up to 5 Gb/s with compatible storage drives.
You can connect displays to the GIGABYTE B450 Gaming X Motherboard HDMI and DVI-D ports, which are driven by the Ryzen CPU’s integrated Radeon Vega graphics. Or install dedicated graphics cards to the PCIe x16 slots, which support AMD Quad-GPU and 2-Way Cross Fire configurations to boost video game frame rates, speed up video rendering, and more. Additional compatible expansion cards may be installed onto the GIGABYTE B450 Gaming X’s two available PCI Express x1 slots.
GIGABYTE B450 Gaming X Motherboard Connect to the internet using the wired Gigabit Ethernet port, GIGABYTE B450 Gaming X Motherboard use which relies on the Realtek 8118 Gaming LAN chip to automatically allocate bandwidth for optimal online game performance. The Realtek ALC892 7.1-channel audio creates an immersive gaming and video streaming entertainment experience, and you can customize your experience further with the system’s RGB lighting headers through the Gigabyte Fusion 2.0 utility. Windows 7 or 10 64-bit is required to take advantage of all of the motherboard’s features
