| Basic Information | ||
| Chipset | AMD B450 | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| BASIC INFORMATION | ||
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series Processors/ AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 4000 G-Series Processors/ 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd Generation Ryzen with Radeon Vega Graphics processors/ 1st Generation Ryzen with Radeon Vega Graphics processors/ Athlon with Radeon Vega Graphics Processors | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 19.5cm | |
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 2.0 and running at x1 |
|
| MEMORY SPECIFICATIONS | ||
| Type | DDR4 | |
| Memory | ||
| Slots | 2 x DIMM | |
| Supported Memory | Support for DDR4 3600(O.C.)/ 3466(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 64 GB (32 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |

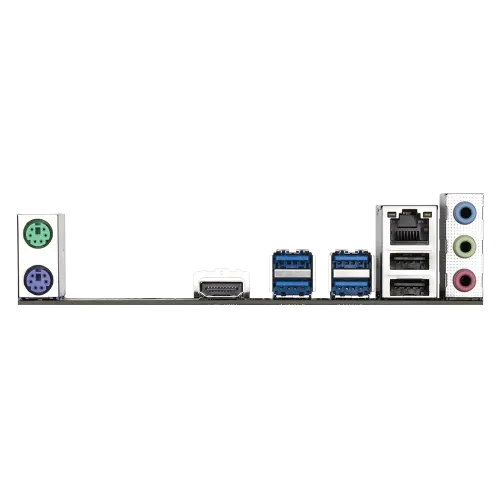

| USB (s) | Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.2 Gen 1 ports on the back panel |
|
| LAN | Realtek GbE LAN chip (1 Gbps/ 100 Mbps) |
|
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe 3.0 x4/x2(Note) SSD support) * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 connector. 4 x SATA 6Gb/s connectors |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

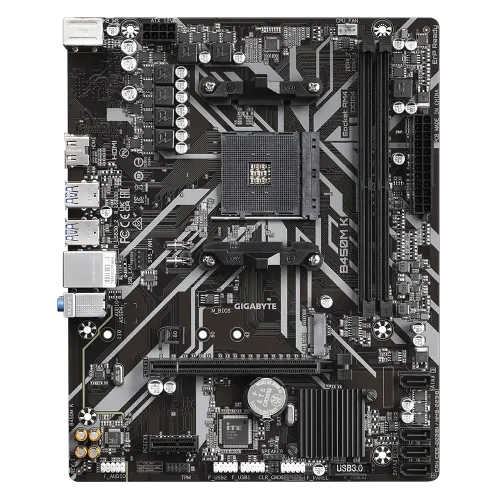

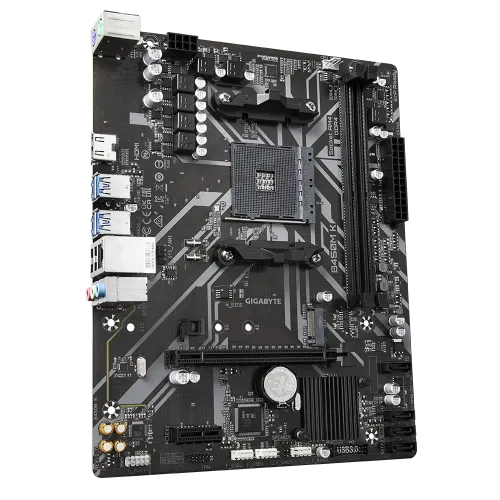

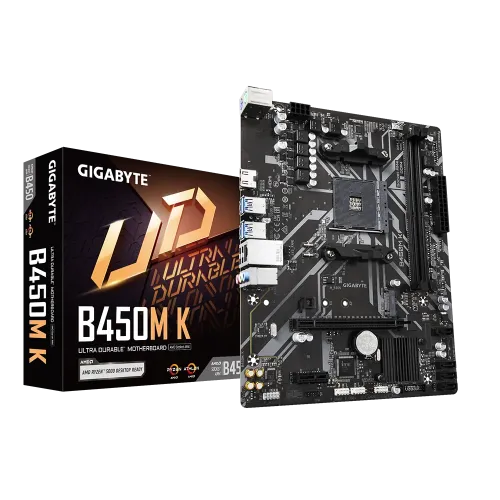

The GIGABYTE B450M K AMD AM4 Micro ATX Motherboard is a versatile and reliable motherboard designed to support AMD processors, making it an excellent choice for budget-conscious gamers, content creators, and general PC users. This feature-packed motherboard offers a solid foundation for building a powerful and efficient system.With its AMD B450 chipset, the motherboard ensures stable performance and compatibility with a wide range of AMD Ryzen processors, including the Ryzen 5000 Series, Ryzen 4000 G-Series, 3rd Generation Ryzen, and 2nd Generation Ryzen, among others. This socket AM4 motherboard also supports Athlon processors with Radeon Vega Graphics, providing flexibility for various computing needs.Memory-wise, the motherboard supports DDR4 RAM with a maximum capacity of 64GB. It accommodates memory modules with frequencies ranging from 2133MHz up to a blazing-fast 3600MHz (when overclocked). The dual-channel memory architecture improves data access speeds, enhancing overall system performance.In terms of storage, the GIGABYTE B450M K motherboard has ample connectivity options. It features a versatile M.2 connector that supports both SATA and PCIe 3.0 x4/x2 SSDs, allowing for lightning-fast storage solutions. Additionally, it provides four SATA 6Gb/s connectors, enabling users to connect multiple traditional SATA storage devices such as HDDs and SSDs.The integrated graphics processor on the motherboard includes an HDMI port that supports a maximum resolution of 4096x2160@60Hz, with HDMI 2.0 version and HDCP 2.2 support, ensuring smooth and high-quality video output. Gamers can also add a dedicated graphics card through the PCIe x16 slot for enhanced gaming and graphic-intensive tasks.Audio quality is not overlooked, as the motherboard boasts a Realtek Audio CODEC, providing High Definition Audio with support for 2/4/5.1/7.1-channel configurations, delivering an immersive sound experience for movies, music, and gaming.The inclusion of USB 3.2 Gen 1 and USB 2.0 ports on the back panel and internal headers ensures that users have plenty of connectivity options for peripherals and other devices.Moreover, the motherboard comes with useful software utilities, such as the APP Center, @BIOS, EasyTune, and System Information Viewer, among others. These applications enhance user experience, enabling easy system management, BIOS updates, and performance optimization.The GIGABYTE B450M K motherboard's compact Micro ATX form factor (24.4cm x 19.5cm) allows for easy integration into smaller PC cases without compromising on functionality. Its 3-year warranty provides peace of mind, ensuring that users can rely on the motherboard's performance and quality.
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.
