| Basic Information | ||
| Chipset | AMD B550 | |
| Audio | 3 x audio jacks | |
| BASIC INFORMATION | ||
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors |
|
| BIOS | 1 x 128 Mbit flash |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, integrated in the CPU: |
|
| Memory | ||
| Memory Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules |
|
| Maximum Memory | 128 GB | |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor: |
|
| Connector & Ports | ||

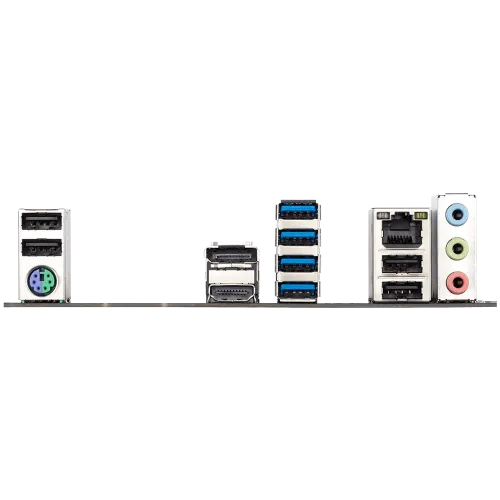

| HDMI | 1 x HDMI | |
| Display Port | 1 x DisplayPort | |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps) | |
| RAID | Support for RAID 0, RAID 1, and RAID 10 | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector |
|
| USB Port | CPU: |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) |
|
| Special Features | Support for APP Center |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 years | |

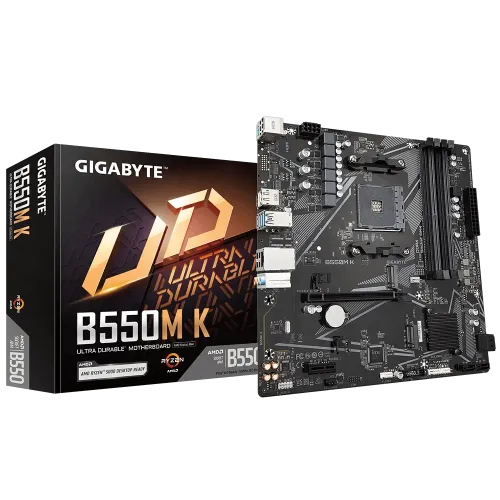

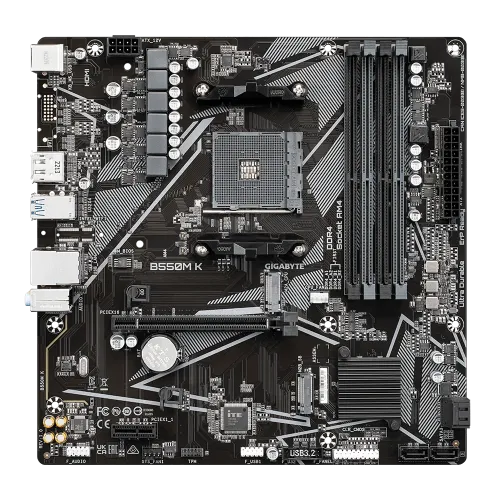

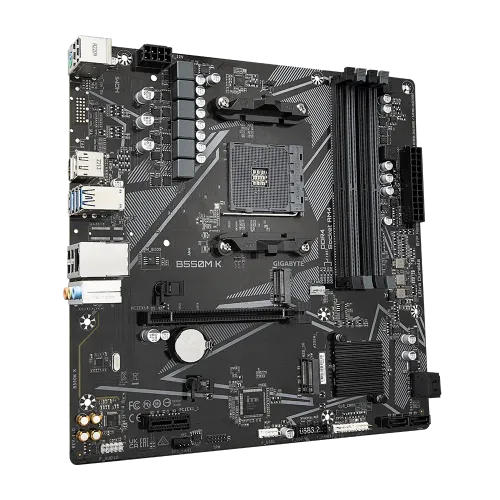

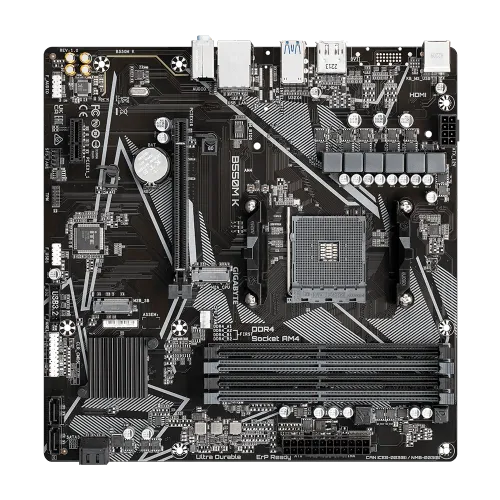

The Gigabyte B550M K is an AMD B550 Ultra Durable Motherboard designed with a digital VRM solution and advanced features for a seamless computing experience. It boasts a PCIe 4.0 x16 slot, providing high-speed data transfer for demanding applications. The motherboard supports a wide range of AMD processors, including Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, and Ryzen 3000 Series Processors. With support for dual-channel ECC/Non-ECC unbuffered DDR4 memory (4 DIMMs), it ensures efficient and stable system performance. The Gigabyte B550M K Motherboard is PCIe 4.0 ready, offering an ultra-fast x16 slot for graphics cards. Additionally, it features dual ultra-fast NVMe PCIe 4.0/3.0 M.2 connectors, providing lightning-fast storage options. To deliver exceptional audio quality, the Gigabyte B550M K is equipped with high-quality audio capacitors and audio noise guard. It also features a GbE LAN with bandwidth management for efficient networking, rear DisplayPort and HDMI support for multi-display setups, and Smart Fan 5 with FAN STOP technology. An anti-sulfur resistor design is also incorporated into the motherboard to increase its reliability and durability. The Gigabyte B550M K is a great option for assembling a potent and effective micro ATX system powered by AMD.
