| BASIC INFORMATION | ||
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | microATX 24.4cm x 24.4cm |
|
| Basic Information | ||
| Chipset | A520 | |
| Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots |
|
| MEMORY SPECIFICATIONS | ||
| Type | DDR4 | |
| Memory | ||
| Slots | 4 x DIMM | |
| Supported Memory | 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory Dual Channel Memory Architecture |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60Hz) 1 x D-Sub |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Display Port | 1 x DisplayPort | |

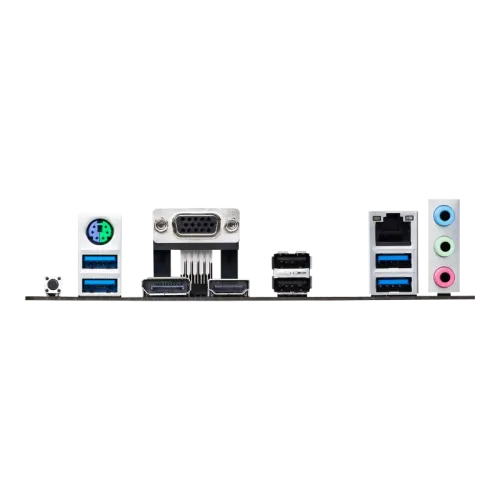

| USB (s) | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports |
|
| LAN | 1 x Realtek 1Gb Ethernet TUF LANGuard |
|
| Supported Storage | AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset: 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 |
|
| Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ - EZ update - PC Cleaner - System Information TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

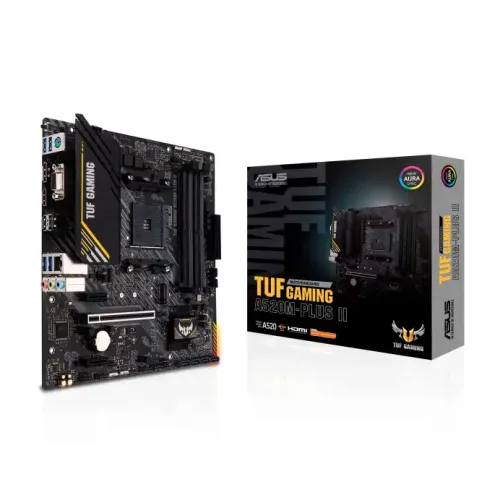

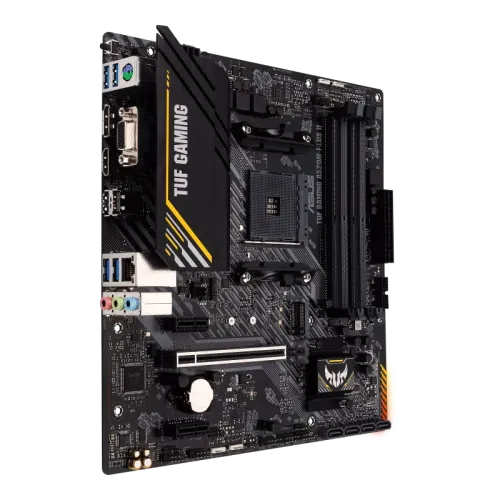

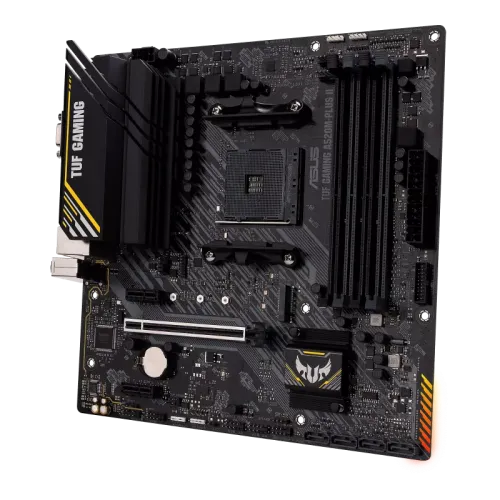

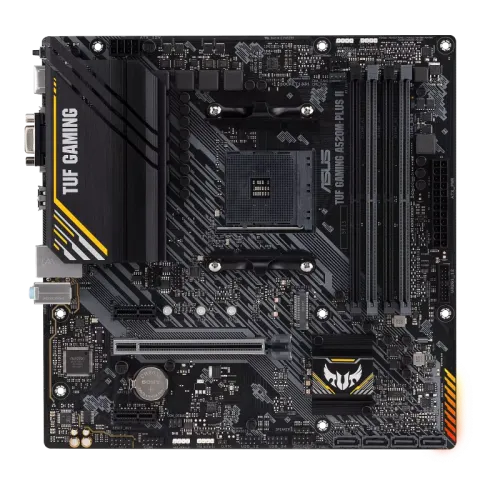

The Asus TUF GAMING A520M-PLUS II is an AMD AM4 microATX motherboard that offers reliable performance and essential features for gamers and PC enthusiasts. Designed to support a wide range of AMD processors, including Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors, this motherboard provides a solid foundation for building a powerful and efficient system.The audio capabilities of the Asus TUF GAMING A520M-PLUS II are powered by the Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC. With support for jack detection, multi-streaming, and front panel jack-retasking, users can enjoy immersive audio experiences while gaming or watching multimedia content. The motherboard features audio shielding and premium Japanese audio capacitors to ensure high-fidelity sound with reduced interference.In terms of BIOS and software, the motherboard comes with a 128 Mb Flash ROM, UEFI AMI BIOS, and a collection of exclusive ASUS software. The Armoury Crate allows users to customize RGB lighting with Aura Creator and synchronize lighting effects with Aura Sync. AI Suite 3 offers performance and power-saving utilities, while TurboV EVO and DIGI+ VRM allow fine-tuning of CPU performance. Fan Xpert 2+ helps manage fan speeds for optimal cooling, and EZ update and PC Cleaner provide system maintenance convenience. Additional software includes TUF GAMING CPU-Z, AI Charger, ASUS Turbo LAN, DAEMON Tools, Norton Anti-virus (Free Trial version), and WinRAR.The motherboard's chipset is AMD A520, providing support for the latest AMD processors and ensuring seamless compatibility with various components. It comes in a microATX form factor, measuring 24.4cm x 24.4cm, making it suitable for compact PC builds.For graphics connectivity, the motherboard features 1 x DisplayPort 1.2, 1 x HDMI 2.1 (4K@60Hz), and 1 x D-Sub port, providing options for connecting multiple displays and enjoying high-quality visuals.Internal I/O ports include CPU and Chassis Fan headers for efficient cooling, USB 3.2 Gen 1 and USB 2.0 headers for additional USB connectivity, and an M.2 slot for high-speed storage devices. The motherboard supports up to 128GB of DDR4 memory in Dual Channel Memory Architecture, ensuring fast and responsive multitasking performance.The Asus TUF GAMING A520M-PLUS II features ASUS TUF PROTECTION, which includes DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage Protection, and SafeSlot Core+ for enhanced durability and protection against electrical surges.Connectivity options include a Realtek 1Gb Ethernet port for reliable network connectivity, and the motherboard also supports RAID 0, 1, and 10 configurations for storage flexibility.With a 3-year warranty, users can trust in the durability and quality of the Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard. Overall, it offers a well-rounded and dependable platform for building a budget-friendly gaming or productivity-focused system.
With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, TUF Gaming A520M-Plus II is the perfect foundation for your next high-core-count battle rig.
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
TUF GAMING A520M-Plus II provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
