| BASIC INFORMATION | ||
| Brand | ASUS | |
| Chipset | AMD B450 |
|
| Graphics | Integrated Graphics In The 2nd And 1st Gen AMD Ryzen™ With Radeon™ Vega Graphics/ Athlon™ With Radeon™ Vega Graphics Processors 1 X HDMI™ Port 1 X DVI-D |
|
| Memory | 3rd/2nd/1st Gen AMD Ryzen™/ 2nd And 1st Gen AMD Ryzen™ With Radeon™ Vega Graphics/ Athlon™ With Radeon™ Vega Graphics Processors 4 X DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3533(O.C)/3466(O.C.)/3400(O.C.)/ 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-Buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC Mode) Support Varies By CPU. |
|
| Model | TUF GAMING B450M-PLUS II |
|
| Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking, Up To 24-Bit/192kHz Playback Audio Feature : - Exclusive DTS Custom For GAMING Headsets. - Audio Cover - Audio Shielding - Dedicated Audio PCB Layers - Premium Japanese Audio Capacitors |
|
| Key Features | ||
| Form Factor | MATX | |
| Other Features | ||
| Special Features | ASUS TUF PROTECTION - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum Heatsink Design ASUS EZ DIY - BIOS FlashBack™ Button - BIOS FlashBack™ LED AURA Sync - AURA RGB Header |
|
| Features | ||
| Others | Accessories User´S Manual I/O Shield 2 X SATA 6Gb/S Cable(S) 1 X Supporting DVD 1 X TUF Gaming Sticker 1 X TUF Certification Card(S) 1 X M.2 SSD Screw Package(S) Manageability: WOL By PXE Operating System: Windows® 10 64-Bit, Windows® 7 64-Bit |
|
| Memory | ||
| Slots | 3rd/2nd/1st Gen AMD Ryzen™ Processors 1 X PCIe 3.0/2.0 X16 (X16 Mode) 2nd And 1st Gen AMD Ryzen™ With Radeon™ Vega Graphics Processors 1 X PCIe 3.0/2.0 X16 (X8 Mode) Athlon™ With Radeon™ Vega Graphics Processors 1 X PCIe 3.0/2.0 X16 (Max At X4 Mode) AMD B450 Chipset 1 X PCIe 2.0 X16 (X4 Mode) 1 X PCIe 2.0 X1 |
|
| Connector & Ports | ||
| HDMI | 1 X HDMI Port |
|
| LAN | Realtek RTL8111H 1Gb Ethernet TUF LANGuard |
|
| Supported Storage | Total Supports 1 X M.2 Slot(S) And 6 X SATA 6Gb/S Ports 3rd/2nd/1st Gen AMD Ryzen™/ 2nd And 1st Gen AMD Ryzen™ With Radeon™ Vega Graphics : 1 X M.2 Socket 3, With M Key, Type 2242/2260/2280/22110(PCIE 3.0 X4 And SATA Modes) Storage Devices Support*1 Athlon™ With Radeon™ Vega Graphics Processors : 1 X M.2 Socket 3, With M Key, Type 2242/2260/2280/22110 Storage Devices Support (SATA Mode)*1 3rd/2nd/1st Gen AMD Ryzen™/ 2nd And 1st Gen AMD Ryzen™ With Radeon™ Vega Graphics/ Athlon™ With Radeon™ Vega Graphics Processors : 2 X SATA 6Gb/S Port(S), Support Raid 0, 1, 10 AMD B450 Chipset : 4 X SATA 6Gb/S Port(S), Support Raid 0, 1, 10 |
|
| Internal I/O Ports | 1 X CPU Fan Connector(S) 2 X Chassis Fan Connector(S) 1 X Aura RGB Strip Header 1 X USB 3.2 Gen 1(Up To 5Gbps) Connector(S) Support(S) Additional 2 USB 3.2 Gen 1 Port(S) 2 X USB 2.0 Connector(S) Support(S) Additional 4 USB 2.0 Port(S) 1 X M.2 Socket 3 With M Key, Type 2242/2260/2280/22110 Storage Devices Support (SATA & PCIE 3.0 X 4 Mode) 1 X SPI TPM Header 6 X SATA 6Gb/S Connector(S) 1 X S/PDIF Out Header(S) 1 X 24-Pin EATX Power Connector(S) 1 X 8-Pin EATX 12V Power Connectors 1 X Front Panel Audio Connector(S) (AAFP) 1 X Clear CMOS Jumper(S) 1 X System Panel Connector 1 X COM Port Header 1 X Speaker Connector |
|

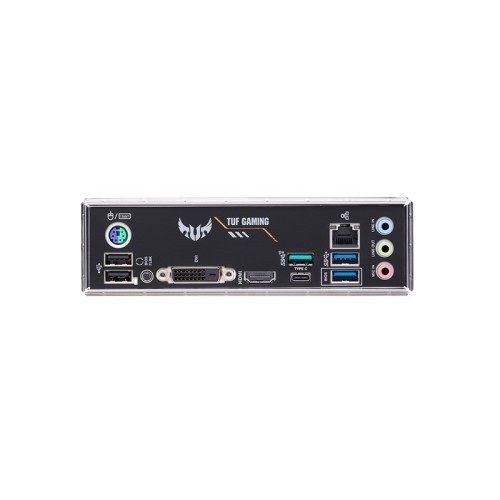

| USB Port | Rear USB Port ( Total 6 ) 1 X USB 3.2 Gen 2 Port(S)(1 X Type-A) 3 X USB 3.2 Gen 1 Port(S)(2 X Type-A +1 X Type-C) 2 X USB 2.0 Port(S)(2 X Type-A) Front USB Port ( Total 6 ) 2 X USB 3.2 Gen 1 Port(S)(2 X Type-A) 4 X USB 2.0 Port(S)(4 X Type-A) |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 Years Warranty |
|

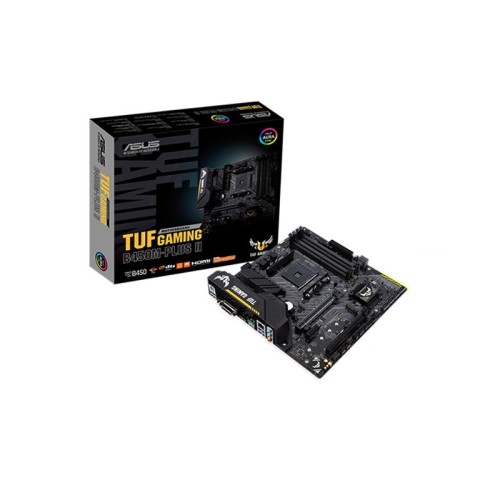

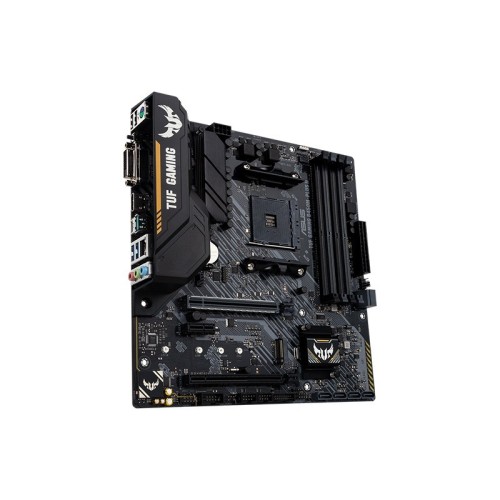

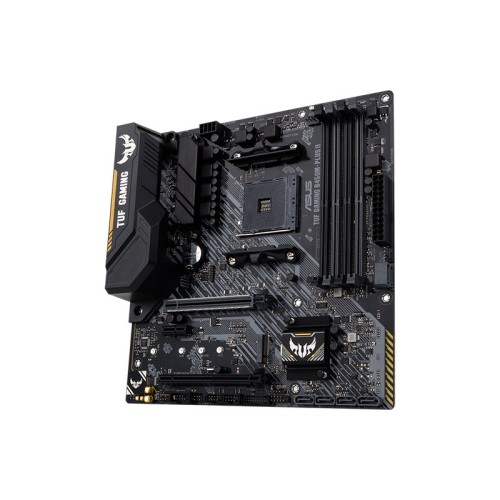

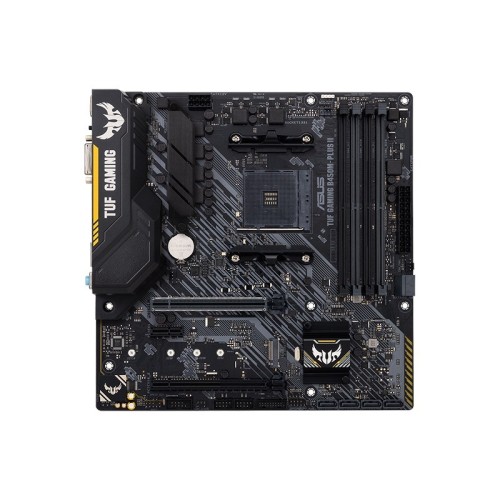

ASUS TUF Gaming B450M-PLUS II AMD Ryzen Micro-ATX Motherboard is a versatile and reliable choice for building a gaming PC. It's designed for AMD AM4 Socket processors, including Ryzen 5000 Series, 4000 G-Series, and various other models. With support for up to 128GB of DDR4 memory and dual-channel memory architecture, it ensures smooth multitasking and gaming performance. The motherboard provides robust graphics options with an HDMI and DVI-D port, as well as support for AMD 2-Way CrossFireX Technology. Storage is flexible, featuring M.2 slots and SATA 6Gb/s ports. It offers excellent audio quality with a Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC, and ASUS exclusive software like Armoury Crate and Aura Sync for customization. The board is equipped with various ASUS TUF protections, ensuring durability, and comes with a range of I/O ports for connectivity. With its compact mATX form factor and a 3-year warranty, it's an ideal choice for budget-conscious gamers.
