| BASIC INFORMATION | ||
| Supported CPU | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | MicroATX 24.4cm X 24.4cm | |
| Basic Information | ||
| Chipset | Intel B550 Chipset | |
| Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers |
|
| Memory | ||
| Slots | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1 X PCIe 4.0 X16 Slot (Supports X16 Mode) AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors 1 X PCIe 3.0 X16 Slot (Supports X16 Mode) AMD B550 Chipset 2 X PCIe 3.0 X1 Slots |
|
| Memory | 4 X DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC) /4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC) /3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/ 2800/2666/2400/2133 MHz, Un-Buffered Memory |
|
| Graphics | ||
| Graphics | 1 X DisplayPort 1.2 1 X D-Sub | |
| Connector & Ports | ||
| HDMI | 1 X HDMI™ Port | |
| LAN | ASUS Turbo LAN | |
| Supported Storage | Supports 2 X M.2 Slots And 4 X SATA 6Gb/S Ports AMD Ryzen™ 5000 Series/ 3000 Series Desktop ProcessorsM.2_1 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4 & SATA Modes)AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop ProcessorsM.2_1 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 3.0 X4 & SATA Modes) AMD B550 Chipset M.2_2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 3.0 X4 & SATA Modes) 4 X SATA 6Gb/S Ports Support RAID 0, RAID 1, RAID 10 |
|
| Internal I/O Ports | Fan And Cooling Related 1 X 4-Pin CPU Fan Header 1 X 4-Pin CPU OPT Fan Header 2 X 4-Pin Chassis Fan Headers Power Related 1 X 24-Pin Main Power Connector 1 X 8-Pin +12V Power Connector Storage Related 2 X M.2 Slots (Key M) 4 X SATA 6Gb/S Ports USB 1 X USB 3.2 Gen 1 Connector (Supports USB Type-C®) 1 X USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports 2 X USB 2.0 Headers Support Additional 4 USB 2.0 Ports Miscellaneous 2 X AURA Addressable Gen 2 Headers 2 X AURA RGB Headers 1 X Clear CMOS Header 1 X COM Port Header 1 X Front Panel Audio Header (AAFP) 1 X S/PDIF Out Header 1 X Speaker Header 1 X SPI TPM Header (14-1pin) 1 X 10-1 Pin System Panel Header |
|

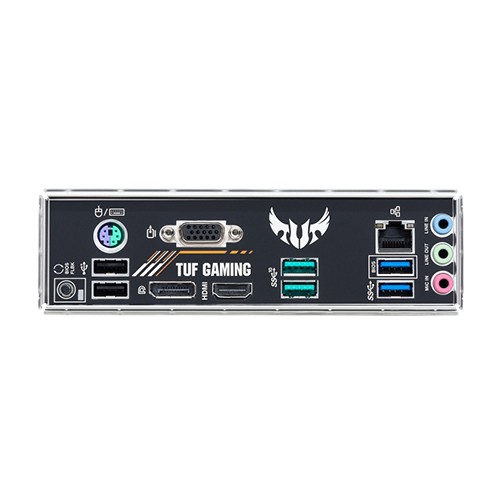

| USB Port | Rear USB:Total 6 Ports 2 X USB 3.2 Gen 2 Ports (2 X Type-A) 2 X USB 3.2 Gen 1 Ports (2 X Type-A) 2 X USB 2.0 Ports (2 X Type-A) Front USB:Total 7 Ports 1 X USB 3.2 Gen 1 Connector (Supports USB Type C®) 1 X USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports 2 X USB 2.0 Headers Support Additional 4 USB 2.0 Ports |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 Years | |

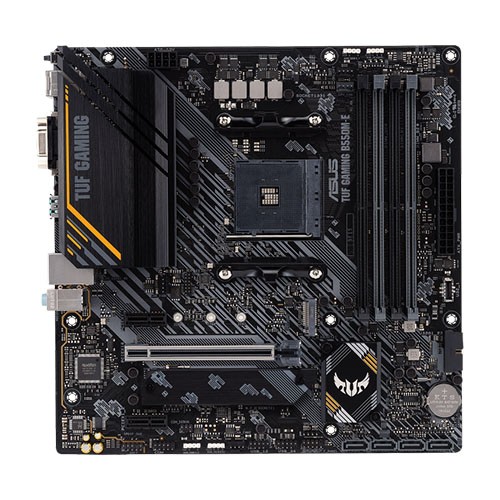

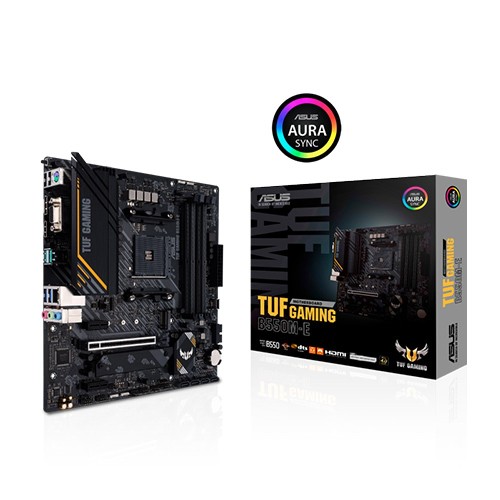

ASUS TUF GAMING B550M-E Distills Essential Elements Of The Latest AMD Platform And Combines Them With Game-Ready Features And Proven Durability. Engineered With Military-Grade Components, An Upgraded Power Solution And A Comprehensive Set Of Cooling Options, This Motherboard Delivers Rock-Solid Performance With Unwavering Gaming Stability. When You Build With A TUF Gaming Motherboard, You Also Benefit From The TUF Gaming Alliance An ASUS Collaboration With Trusted Industry Partners That Ensures Easier Building, Best Compatibility, And Complementary Aesthetics From Components To Case.
With Upgraded Power Delivery And Comprehensive Cooling Options To Fuel The Latest AMD RyzenTM CPUs, Plus Support For Faster Memory And Storage, ASUS TUF GAMING B550M-E Is The Perfect Foundation For Your Next High-Core-Count Battle Rig.
TUF Gaming Motherboards Are Designed To Be Easy To Set Up And Configure Just The Way You Want — Even For First-Time Builders. The TUF Gaming Alliance Ecosystem Makes Selecting Compatible Parts Easy, While Armoury Crate Software Offers Full Control Of System Settings Via A Single Dashboard. TUF Gaming Motherboards Give You Everything You Need To Build Your Dream Gaming Rig Without Adding Complexity.
ASUS TUF Gaming B550M-E Provides A Complete, High-Performance Gaming Package With A Long List Of Features To Improve Your Experience, Including Ultrafast Networking For Smoother Online Gameplay, Pristine Audio With Positional Cues For FPS Gaming, And Onboard RGB Lighting That Syncs With Attached Accessories To Help You Create A Personalized Gaming Atmosphere.
NETWORK-OPTIMIZATION SOFTWARE FOR CUSTOMIZABLE PACKET PRIORITIZATION, Turbo LAN Is A Network-Optimization Software For Customizable Packet Prioritization. With CFosSpeed Traffic-Shaping Technology, It Allows You To Configure Application Priority Via An Intuitive Interface, And Reduces Network Lag.
A Well-Tuned System Deserves A Matching Aesthetic. ASUS Aura Offers Full RGB Lighting Control With A Variety Of Functional Presets For The Built-In RGB LEDs As Well As Strips Connected To The Onboard RGB Headers. And It Can All Be Synced With An Ever-Growing Portfolio Of Aura-Capable Hardware.
