| BASIC INFORMATION | ||
| Supported CPU | AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors Supports CPU up to 8 cores |
|
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information | |
| Form Factor | ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Basic Information | ||
| Chipset | AMD B450 | |
| Audio | Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2 Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. |
|
| Expansion Slots | ||
| PCI | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x4 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode) 3 x PCIe 2.0 x1 |
|
| M.2 Socket | 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode) |
|
| Memory | ||
| Memory Type | Dual Channel DDR4 Memory Technology | |
| Slots | 4 x DIMM | |
| Supported Memory | DDR4 3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory | |
| Maximum Memory | 64 GB | |
| Graphics | ||
| Graphics | Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |

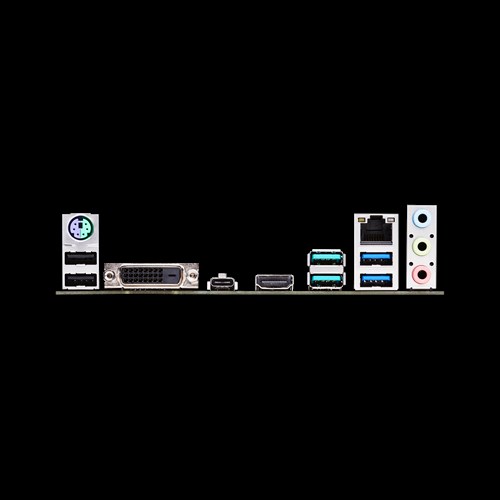

| USB (s) | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A) AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM) AMD B450 chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A) AMD B450 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD B450 chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) |
|
| LAN | Realtek® RTL8111H TUF LANGuard |
|
| Supported Storage | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 AMD Athlon™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*1 AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 2 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 AMD B450 chipset : 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
|
| Internal I/O Ports | 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 years | |

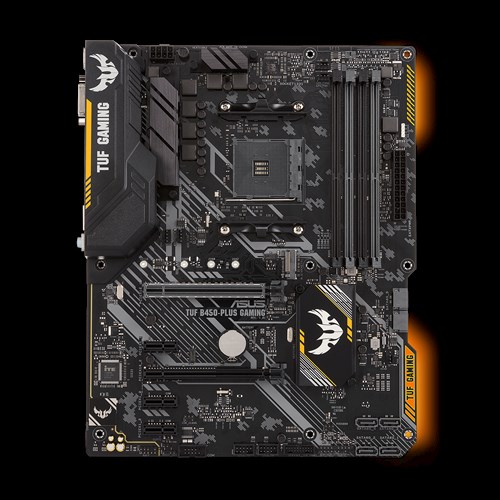

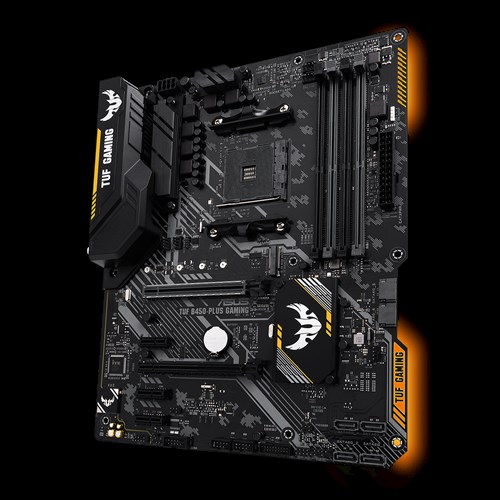

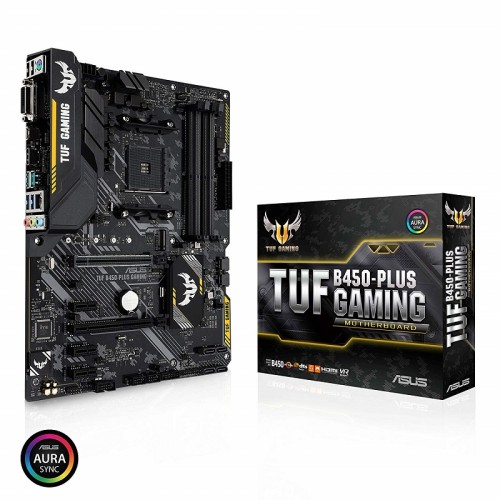

The Asus TUF B450-PLUS GAMING is an AMD ATX motherboard designed for gamers and PC enthusiasts seeking a reliable and high-performance platform. This particular version is tailored for the Chinese market, featuring an AMD B450 chipset and an AM4 socket, making it compatible with a wide range of AMD processors, including Ryzen 2nd Generation, Ryzen with Radeon Vega Graphics, Athlon with Radeon Vega Graphics, and Ryzen 1st Generation processors, supporting CPUs with up to 8 cores.The motherboard boasts impressive audio capabilities with the Realtek ALC887-VD2 8-Channel High Definition Audio CODEC. It comes equipped with various audio features, including exclusive DTS Custom for Gaming Headsets, audio shielding, dedicated audio PCB layers, premium Japanese-made audio capacitors, and an audio cover to ensure superior audio quality. These features provide gamers with an immersive and crystal-clear sound experience, enhancing the overall gaming and multimedia enjoyment.The BIOS of the Asus TUF B450-PLUS GAMING is user-friendly, featuring a 128 Mb Flash ROM with UEFI AMI BIOS. It supports various functionalities such as PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search, and ASUS DRAM SPD (Serial Presence Detect) memory information. This makes BIOS configuration and updates simple and convenient.The motherboard offers multiple options for graphics connectivity, including HDMI 2.0b with a maximum resolution of 4096 x 2160 @ 60 Hz and DVI-D with a maximum resolution of 1920 x 1200 @ 60 Hz, providing gamers with crisp and vibrant visuals.For internal I/O ports, the motherboard provides a range of connectors, such as Aura RGB Strip Header, USB 3.1 Gen 1, USB 2.0, M.2 Socket 3, SATA 6Gb/s, CPU Fan, Chassis Fan, AIO_PUMP, S/PDIF out, 24-pin EATX Power, 8-pin ATX 12V Power, Front panel audio, System panel, Clear CMOS jumper, and COM port header, offering flexibility in component connections and expansion options.The Asus TUF B450-PLUS GAMING supports Dual Channel DDR4 Memory Technology with a maximum memory capacity of 64 GB. It includes one PCIe 3.0/2.0 x16 slot (x16 mode) for Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics processors, one PCIe 3.0/2.0 x16 slot (x8 mode) for Ryzen with Radeon Vega Graphics processors, one PCIe 3.0/2.0 x16 slot (x4 mode) for Athlon with Radeon Vega Graphics processors, and one PCIe 2.0 x16 slot (max at x4 mode) and three PCIe 2.0 x1 slots from the AMD B450 chipset, offering ample room for expansion cards and add-ons.The Asus TUF B450-PLUS GAMING AMD ATX Motherboard (China Version) comes with a 3-year warranty, providing users with peace of mind and assurance of its durability and quality.
