| BASIC INFORMATION | ||
| Supported CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Basic Information | ||
| Chipset | AMD B550 | |
| Audio | ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback* Audio Features - SupremeFX Shielding Technology - Dual OP Amplifiers - Premium audio capacitors - Audio cover |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors 1 x PCIe 4.0 x16 SafeSlot (supports x16 mode) AMD B550 chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 3 x PCIe 3.0 x1 slots |
|
| MEMORY SPECIFICATIONS | ||
| Type | DDR4 | |
| Memory | ||
| Slots | 4 x DIMM | |
| Supported Memory | AMD Ryzen 5000 and 3000 Series Desktop Processors 4800(O.C.)/4666(O.C.)/4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory * AMD Ryzen 5000 and 4000 G-Series Processors 5100(O.C)/4866(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1.2 1 x HDMI 2.1 |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1 | |
| Display Port | 1 x DisplayPort 1.2 | |
| USB (s) | Rear USB: Total 8 ports 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports Front USB: Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN | 1 x Intel 2.5Gb Ethernet 1 x Intel I225-V 2.5Gb Ethernet ASUS LANGuard |
|
| Wireless | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 |
|
| Supported Storage | Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports AMD Ryzen 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD B550 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports Support RAID 0, 1, 10 |
|
| Internal I/O Ports | Fan and cooling related 1 x 4-Pin AIO_Pump header 1 x 4-Pin CPU fan header 1 x 4-Pin CPU_OPT fan header 3 x 4-Pin Chassis fan headers Power related 1 x 24-pin main power connector 1 x 8-pin +12V power connector 1 x 4-pin +12V power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front panel audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal sensor header 1 x Thunderbolt header |
|
| Others | ||
| Bundled Software | ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Two-Way AI Noise Cancelation AI Suite 3: - Performance And Power Saving Utility EPU DIGI+ VRM Fan Xpert 4 TurboV EVO - EZ update WinRAR DAEMON Tools Norton Anti-virus software (Free Trial version) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Special Features | ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - M.2 heatsink AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 Years Warranty | |

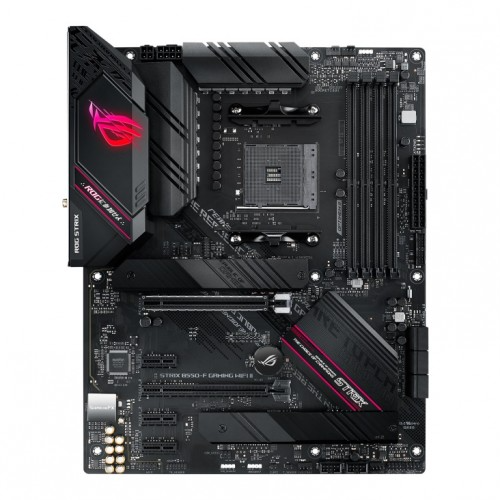

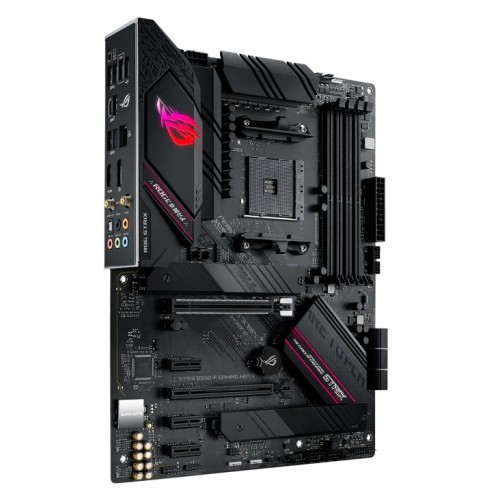

The ASUS ROG STRIX B550-F GAMING WIFI II is PCIe 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give users a massive advantage, allowing them to pick up on the subtlest of cues for a completely immersive gaming experience. In addition, ASUS ROG STRIX B550-F GAMING WIFI II features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express RAID for a performance boost. By pairing the rig with other products from the diverse ROG ecosystem, users can create a fully customized gaming setup that reflects their personal style. ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements allowing to configure the gaming build the way one wants. Each section of the UEFI's Advanced mode is intuitively organized, and a built-in search feature makes it easy to find the options user needs. To make it note-worthy, advanced functions are coded with the intelligence to adapt to the user's settings. The ASUS ROG STRIX B550-F GAMING WIFI II motherboard comes with 03 years of warranty.
