| BASIC INFORMATION | ||
| Supported CPU | AMD AM4 Socket for 3rd/ 2nd/ 1st Gen AMD Ryzen /2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th Generation A-series/ Athlon X4 Processors | |
| Chipset | AMD A320 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control | |
| Form Factor | mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ) | |
| Expansion Slots | ||
| PCI | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors- 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors - 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon™ with Radeon™ Vega Graphics Processors- 1 x PCIe 3.0/2.0 x16 (x4 mode) AMD A320 chipset- 2 x PCIe 2.0 x1 |
|
| M.2 Socket | 1 x M.2 Socket 3 | |
| Memory | ||
| Memory Type | DDR4 | |
| Slots | 2 x DIMM, | |
| Supported Memory | 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory AMD 7th Generation A-Series/Athlon X4 Processors 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
|
| Maximum Memory | Max. 64GB | |
| Graphics | ||
| Graphics | Multi-VGA output support : HDMI/RGB ports Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports RGB with max. resolution 1920 x 1200 @ 60 Hz |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| LAN | 1 x LAN (RJ45) port(s) | |
| Audio | Back I/O Ports 3 x Audio jack(s) 1 x Front panel audio connector(s) (AAFP) |
|
| D-Sub (s) | 1 x D-Sub | |
| Supported Storage | AMD A320 chipset : 4 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10 AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-Series/ Athlon™ X4 Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) AMD Athlon™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) |
|
| Internal I/O Ports | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector |
|
| USB Port | 4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 Years | |

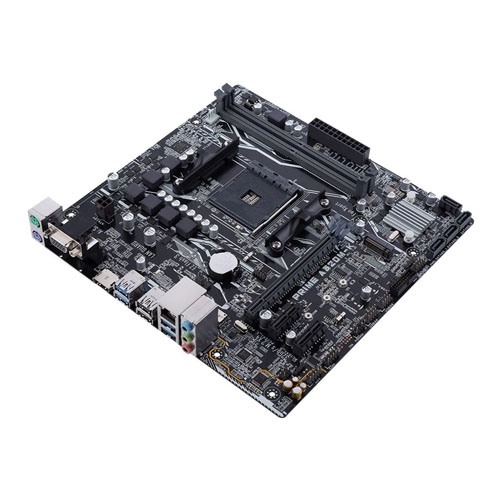

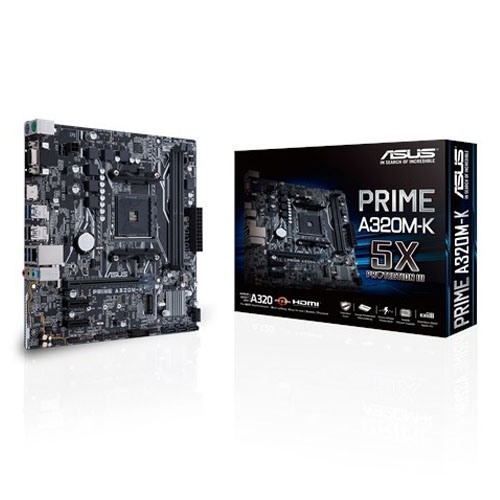

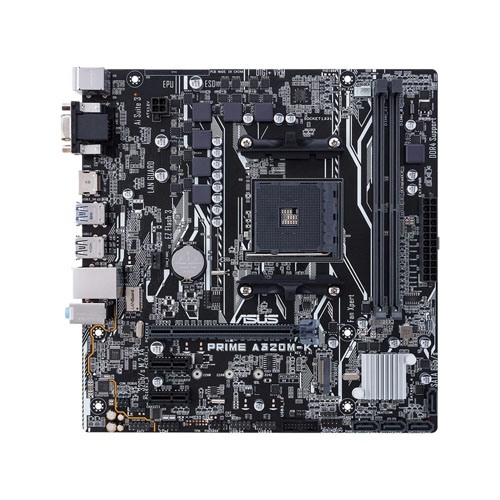

The Asus Prime A320M-K AMD AM4 uATX Motherboard is a reliable and versatile motherboard designed to cater to a wide range of computing needs. Supporting AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen processors, as well as Ryzen with Radeon Vega Graphics and Athlon with Radeon Vega Graphics, this motherboard offers excellent compatibility and performance for various CPU configurations. The AMD A320 chipset ensures stable and efficient operation, making it suitable for office, home, and light gaming use. With a compact micro-ATX form factor measuring 8.9 inches by 8.7 inches, the Asus Prime A320M-K motherboard is ideal for space-constrained builds without compromising on functionality. The motherboard features 2 DIMM slots supporting up to 64GB of DDR4 memory, allowing for smooth multitasking and system responsiveness. In terms of expansion slots, the Asus Prime A320M-K offers flexibility with one PCIe 3.0/2.0 x16 slot for high-speed graphics cards and two PCIe 2.0 x1 slots for additional expansion cards such as sound cards or networking adapters. The inclusion of one M.2 socket allows for fast storage solutions, enhancing system performance. Connectivity options abound with HDMI and D-Sub ports for multi-display setups, as well as USB 3.1 Gen 1 and USB 2.0 ports for peripheral connectivity. Additionally, the motherboard features LAN and audio ports for networking and audio output, ensuring a complete computing experience. The Asus Prime A320M-K motherboard also boasts convenient internal connectors, including SATA 6Gb/s ports for traditional storage drives and USB headers for additional USB ports. The inclusion of ASUS EZ Flash 3 and ASUS CrashFree BIOS 3 ensures easy BIOS updates and system recovery, adding to the overall user-friendly experience of this motherboard.
Asus Prime A320M-K AMD Motherboard Features
