| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
|
| Chipset | AMD B650 Chipset |
|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
|
| M.2 Socket | Total supports 2 x M.2 slots AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | p to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
|
| Maximum Memory | 96GB | |
| Graphics | ||
| Graphics | 1 x HDMI port * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| USB (s) | Rear USB (Total 8 ports) 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet | |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset 4 x SATA 6Gb/s ports |
|
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. | |
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Back Panel I/O Ports 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x 10-1 pin System Panel header |
|
| Wireless Communication module | WiFi 6 | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design Aura Sync - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Warranty | 3 Years | |

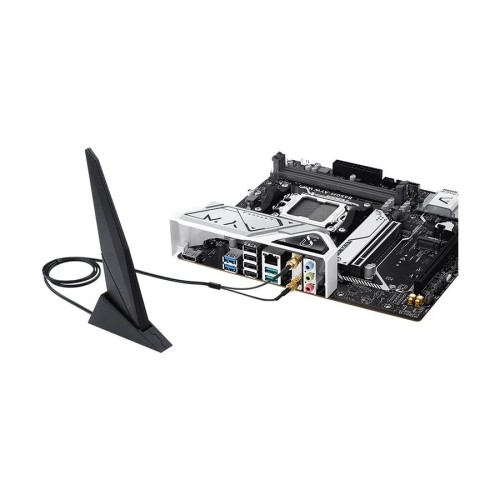

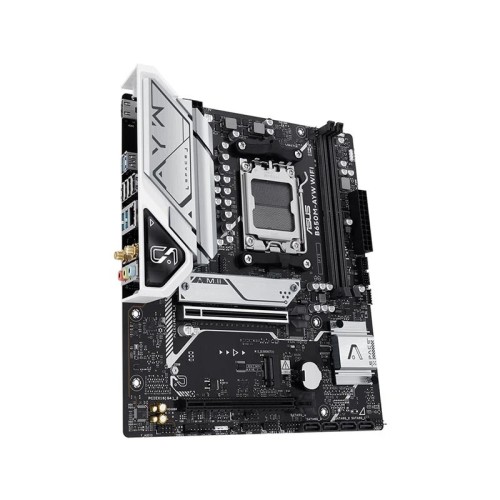

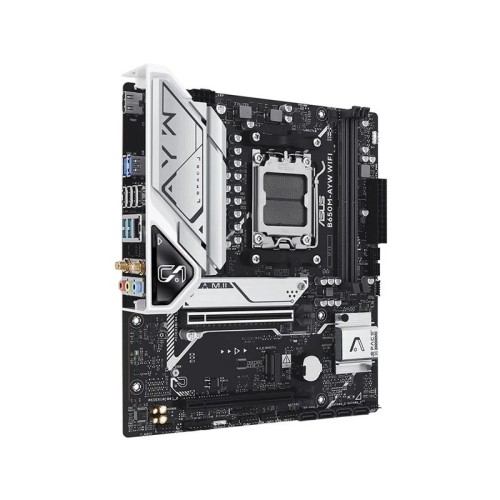

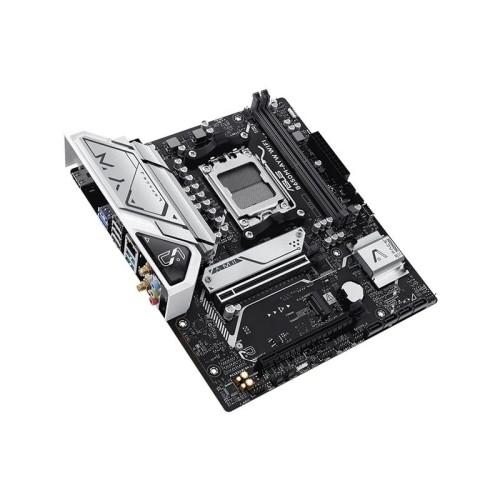

Asus B650M-AYW Wi-Fi 6 DDR5 AMD Motherboard
The Asus B650M-AYW Wi-Fi 6 DDR5 AMD Motherboard is likely a motherboard designed for AMD Ryzen processors using the AM5 socket, built with the B650 chipset. Here's a breakdown of the main features you can expect from a motherboard of this specification:
Key Features:
Chipset and Socket:
B650 chipset: Mid-range chipset for AMD, offering support for PCIe 5.0, USB 4.0, and other modern connectivity features.
AM5 socket: Compatible with AMD Ryzen 7000 series processors.
Memory Support:
DDR5 RAM support: Faster memory performance compared to DDR4.
Likely supports dual-channel memory with speeds up to or exceeding 6000 MHz (overclocked).
Wireless Connectivity:
Wi-Fi 6: High-speed wireless internet with low latency and support for MU-MIMO.
Bluetooth support: Typically included, allowing for connectivity with wireless peripherals.
Expansion and Storage:
PCIe 4.0/5.0 slots: For graphics cards and high-speed SSDs.
M.2 slots: Likely includes multiple slots for NVMe SSDs, supporting PCIe 4.0/5.0 for ultra-fast storage speeds.
Multiple SATA ports for traditional SSDs/HDDs.
Connectivity:
USB Ports: A mix of USB 3.2, USB-C, and possibly USB 4.0.
Audio Output: High-definition audio codecs for enhanced sound quality.
LAN: High-speed Ethernet, usually 2.5GbE or 1GbE.
Form Factor:
Micro-ATX: Compact size, ideal for mid-sized PC builds without sacrificing too much expandability.
Cooling and Aesthetics:
VRM heatsinks: Ensures stable power delivery for overclocking.
RGB lighting: Likely includes RGB or headers for customizable lighting.
BIOS and Software:
User-friendly UEFI BIOS for easy setup and tuning.
Tools for overclocking, fan control, and system monitoring.
