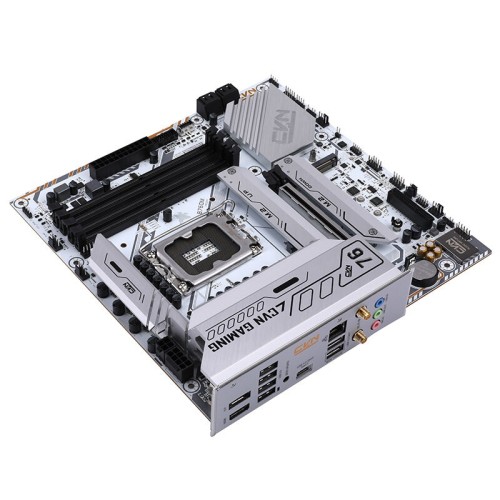

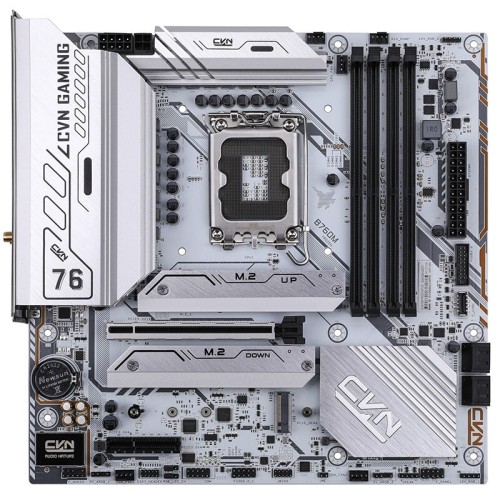

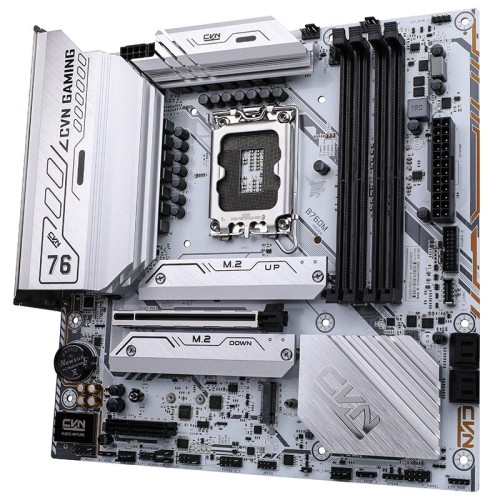

Colorful CVN B760M FROZEN WIFI V20 Motherboard

Colorful CVN B760M FROZEN WIFI V20 Motherboard

The Colorful CVN B760M FROZEN WIFI V20 motherboard is a feature-rich and high-performance motherboard designed to cater to the demands of gaming and content creation enthusiasts. Supporting the latest 13th and 12th generation Intel processors and utilizing the LGA 1700 slot, this motherboard ensures compatibility with a wide range of Intel Core TM, Pentium, and Cylon processors, providing users with versatile options for building a powerful system. The motherboard boasts an Intel B760 chipset and a 128M UEFI BIOS that supports multiple languages, providing a user-friendly interface and seamless customization options. Its M-ATX form factor with dimensions of 245mm x 245mm makes it a compact yet powerful choice for those looking to build a high-performance system in a smaller form factor. In terms of memory, the CVN B760M supports DDR4 memory technology with four memory sockets that can accommodate up to 128 GB of RAM. The motherboard supports a wide range of memory speeds, including overclocked frequencies like DDR4-4800, offering users the flexibility to optimize their system's performance. The expansion slots include a PCIe 5.0 x16 slot and a PCIe 3.0 x4 slot, providing options for graphics cards and other expansion cards. Storage options are abundant, with support for three M.2 slots and four SATA 6Gb/s interfaces, allowing users to create RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays. CVN series customized frost cooling armor with full coverage condensing fins to enhance heat dissipation 12+1 phase reinforced power supply, F.C.C ferrite inductor (Dr MOS 55A) Provide 3 PCIe 4.0 x4 M.2 SSD slots Provide one USB 3.2 Gen 2 Type-C and two USB 3.2 Gen 1 Type-A high-speed rear interfaces Equipped with Realtek 2.5G high-speed wired network card and AX201/AX200 WiFi 6 wireless network card, supporting Bluetooth 5.2 Support the iGame Center light efficiency control software, which can synchronously adjust the light efficiency of the radiator, cooling fan and memory The I/O backplane supports one click BIOS upgrade Six protection technologies, more stable product operation 200 processes are strictly tested with guaranteed quality PCB atomization process comprehensively upgraded "410" high-quality service and guaranteed after-sales service.

Colorful CVN B760M FROZEN WIFI V20 Motherboard Features

• 13th and 12th Gen Intel Processor Support: The motherboard supports the latest 13th and 12th generation Intel processors, including Core TM, Pentium, and Cylon processors, adapting to the LGA 1700 slot.
• Intel B760 Chipset: Powered by the Intel B760 chipset, this motherboard ensures stable and efficient performance, catering to the demands of modern computing.
• 128M UEFI BIOS with Multilingual Support: The motherboard features a 128M UEFI BIOS that supports multiple languages, providing users with a user-friendly interface and easy customization options.
• M-ATX Form Factor: The M-ATX form factor (245mm x 245mm) strikes a balance between compact design and expandability, making it suitable for various PC builds.
• 5.1 Channel Sound Card: Equipped with a 5.1 channel sound card, the motherboard delivers immersive audio for an enhanced gaming and multimedia experience.
• PCIe 5.0 and PCIe 3.0 Expansion Slots: The motherboard offers 1x PCIe 5.0 x16 slot and 1x PCIe 3.0 x4 slot, providing high-speed expansion capabilities for graphics cards and other PCIe devices.
• DDR4 Memory Support: Supporting DDR4 memory, the motherboard features four memory sockets that can handle up to 128GB of RAM. It supports memory speeds up to DDR4-4800 (OC), ensuring efficient multitasking and system responsiveness.
• High-Speed Networking: The motherboard features an RTL8125 2.5Gbit network card, AX201/AX200 WiFi 6 wireless network card, and Bluetooth 5.2 for high-speed and reliable connectivity options.
• Multiple Storage Options: With 3 M.2 slots and 4 SATA 6Gb/s interfaces, the motherboard supports the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices.

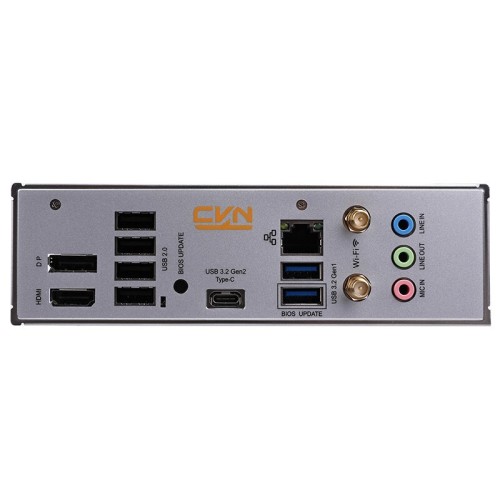

• Comprehensive Rear I/O Ports: The rear I/O interface includes USB 2.0 and USB 3.2 Gen 1 Type-A interfaces, a USB 3.2 Gen 2 Type-C interface, DP 1.2, HDMI 2.0, a 2.5G network interface, Wi-Fi 6 antenna interfaces, audio interfaces, and more.
• Expansion and Connectivity Pins: The motherboard offers various internal I/O ports, including CPU and system fan pins, water-cooled pump pin, USB pins, RGB pins, ARGB pins, and more, providing extensive customization and expansion options.
• Onboard Features: The onboard features include a BIOS update button, clear CMOS jumper, COM port pin, BIOS burner pin, POST card pin, ME write protection jumper, and an RGB light effect control jumper, enhancing user convenience and system management.

Overall, the Colorful CVN B760M FROZEN WIFI V20 motherboard combines powerful performance, expandability, and connectivity features, making it an ideal choice for gaming and content creation enthusiasts seeking a reliable and feature-packed foundation for their PC build.
