| Motherboard Info | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) LGA 1851 |
|
| Chipset | INTEL H810 | |
| Form Factor | mATX 220mmx243.84mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| PCI | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
|
| M.2 Socket | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
|
| Memory Type | DDR5 | |
| Memory Slots | 2 | |
| Supported Memory | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
|
| Maximum Memory | 128GB | |
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
|
| HDMI | 1x HDMI 2.1 | |
| Display Port (s) | 1x DisplayPort 1.4 | |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
|
| LAN Port (s) | Realtek 8126 5Gbps LAN | |
| Wireless Communication module | Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
|
| Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Special Features | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty | 3 Year | |

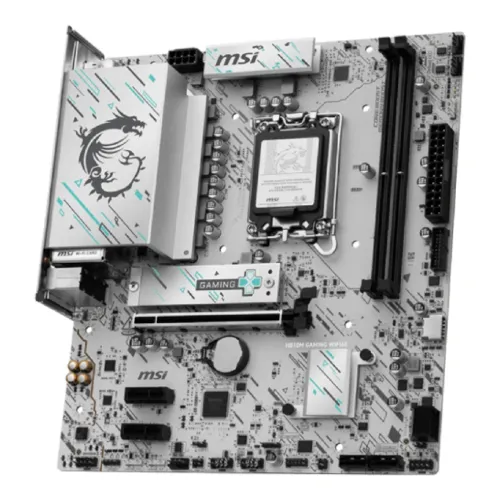

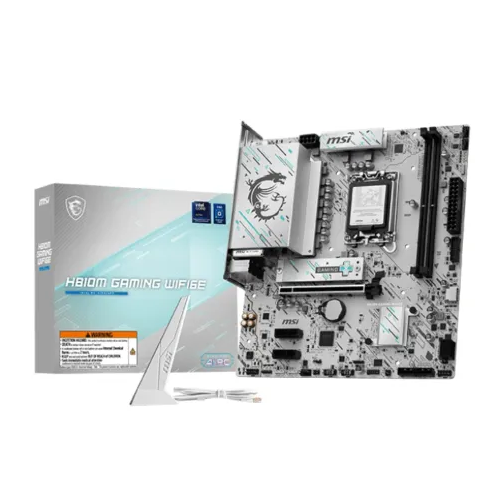

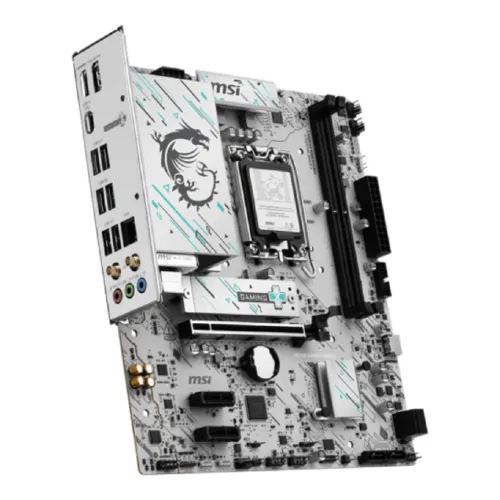

The MSI H810M GAMING WIFI6E is an entry-to-mid-range micro-ATX (mATX) motherboard designed for Intel’s LGA 1851 socket. It is specifically built to support the Intel Core Ultra (Series 2) processors, focusing on a balance between "AI PC" readiness and essential gaming performance.
The transition to the LGA 1851 socket marks a shift toward high-efficiency computing. This motherboard utilizes the Intel H810 chipset, providing a stable foundation for users who want the benefits of the latest architecture without the premium cost of Z890 boards. It features a robust power design with MSI's Core Boost technology to ensure steady power delivery to the CPU.
DDR5 Support: The board includes two DDR5 DIMM slots, supporting up to 128GB of memory with overclocking speeds reaching 6400+ MT/s.
Next-Gen Slots: It is equipped with a PCIe 5.0 x16 slot, providing massive bandwidth for high-end GPUs.
Storage: For NVMe drives, it offers a Lightning Gen4 x4 M.2 slot (64Gbps), supplemented by four SATA 6Gb/s ports for traditional drives.
The "GAMING" branding is backed by high-speed networking and specialized audio:
Networking: It features Wi-Fi 6E (supporting the 6GHz band) and a 5Gbps LAN port (some variants may feature 2.5Gbps), ensuring low-latency online gaming and fast file transfers.

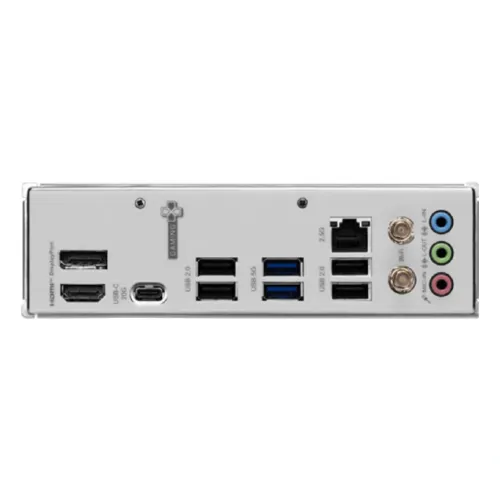

USB Ports: The rear I/O includes a USB 20Gbps Type-C port for high-speed peripherals.
DIY Friendly: Includes MSI’s EZ DIY features like the EZ PCIe Clip II (for easy GPU removal) and EZ Debug LEDs for quick troubleshooting.
