| BASIC INFORMATION | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
|
| Chipset | Intel B760 Express Chipset | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
|
| BIOS | 1 x 256 Mbit flash |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | 3 x audio jacks | |
| Basic Information | ||
| Type | DDR5 | |
| Expansion Slots | ||
| PCI | CPU: |
|
| Memory | ||
| Slots | 4 | |
| Maximum Memory | Up to 192 GB (48 GB single DIMM capacity) of system memory | |

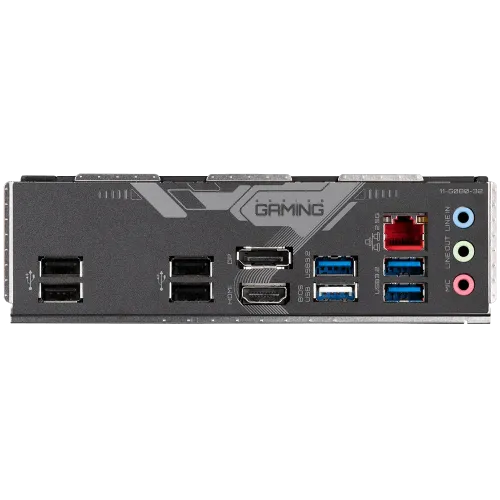

| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port | 1x DisplayPort | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port |
|
| USB (s) | Chipset: |
|
| Supported Storage | CPU: |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

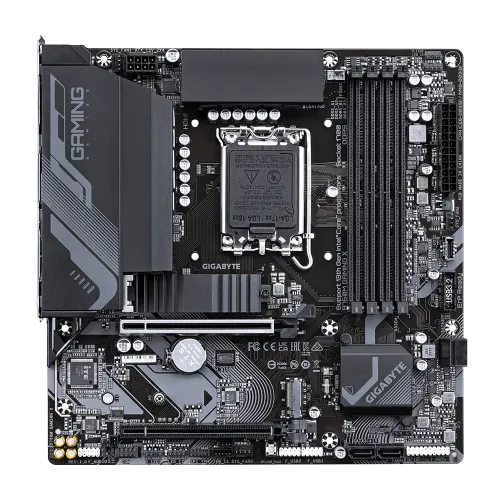

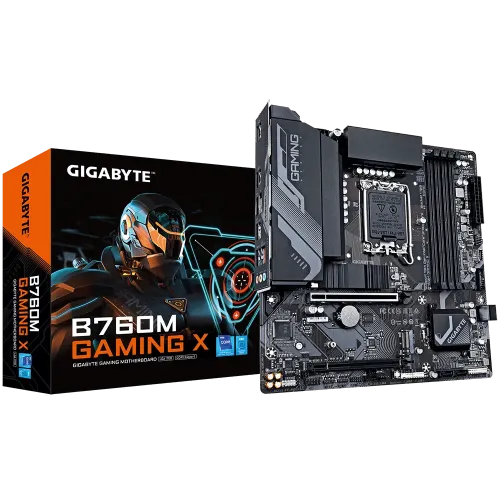

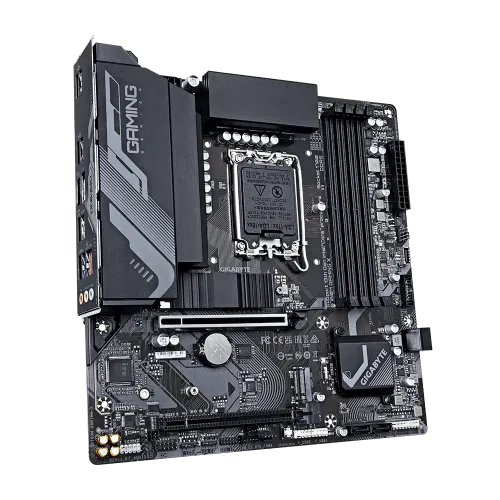

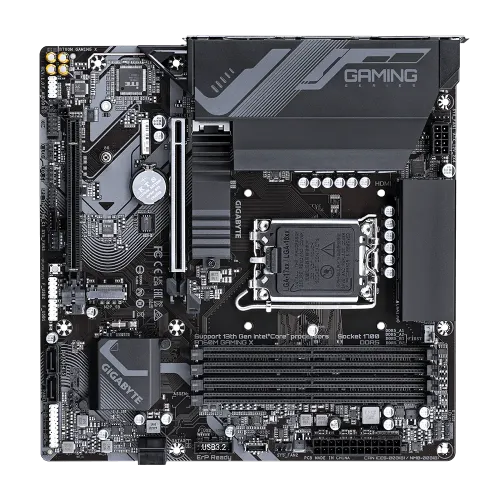

The GIGABYTE B760M GAMING X is a high-performance motherboard designed for gaming enthusiasts and power users. It supports both 14th 13th and 12th-generation Intel processors with its LGA 1700 socket, ensuring compatibility with the latest CPU technologies. This motherboard is its Hybrid 8+1+1 Phases Digital VRM solution, which provides exceptional power delivery and stability for optimal performance. This ensures that the motherboard can handle demanding tasks and overclocking without any issues. The motherboard supports Dual Channel DDR5 memory, allowing for faster data transfer rates and improved multitasking capabilities. With four DIMM slots and XMP memory module support, users can easily install and configure high-speed RAM for smooth and responsive system performance. The GIGABYTE B760M GAMING X motherboard. It features two PCIe 4.0 x4 M.2 connectors, enabling lightning-fast storage solutions. Additionally, the motherboard incorporates an advanced thermal design and M.2 Thermal Guard to maintain VRM power stability and optimize M.2 SSD performance, preventing thermal throttling and ensuring reliable operation. The EZ-Latch feature of the PCIe 4.0x16 slot allows for easy installation and removal of graphics cards, making it convenient for users who frequently upgrade their GPUs. The 14th Gen Motherboard provides a front USB-C® port with a 10Gb/s transfer speed, as well as DisplayPort (DP) and HDMI ports for multiple display setups. This allows users to connect various peripherals and external devices with ease. The Smart Fan 6 feature is designed to keep the system cool and quiet. It includes multiple temperature sensors and hybrid fan headers with FAN STOP technology, enabling precise control over fan speeds and optimizing cooling performance while minimizing noise levels. The Q-Flash Plus, allows users to update the motherboard's BIOS firmware without the need to install the CPU, memory, and graphics card. This feature provides a convenient and hassle-free method for keeping the system up to date with the latest firmware releases. The GIGABYTE B760M GAMING X motherboard offers a comprehensive range of features and technologies for gamers and power users seeking exceptional performance, reliable connectivity, and convenient upgradability.
