| BASIC INFORMATION | ||
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support, - Supports "Plug and Play", - ACPI 5.1 compliance wake up events, - Supports jumperfree, - SMBIOS 2.3 support, - CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment |
|
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm | |
| Basic Information | ||
| Chipset | AMD X570 | |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec), - Premium Blu-ray Audio support, - Supports Surge Protection, - Supports Purity Sound™ 4, - Nichicon Fine Gold Series Audio Caps, - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets), - Pure Power-In, - Direct Drive Technology, - PCB isolate shielding, - Impedance Sensing on Rear Out port, - Individual PCB Layers for R/L Audio Channel, - Gold Audio Jacks, - 15μ Gold Audio Connector |
|
| CPU | - AMD AM4 socket, - Intersil Digital PWM, - 10 Power Phase design |
|
| Memory | ||
| Memory | Type: Dual Channel DDR4 Memory Technology, Slots: 4 x DDR4 DIMM Slots, Supported Memory: -AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory, - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory, - AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory, Maximum Memory: 128GB |
|
| Storage | - 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)*, - 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) |
|
| Graphics | ||
| Graphics | - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU, - DirectX 12, Pixel Shader 5.0, - Shared memory default 2GB. Max Shared memory supports up to 16GB. - Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers, - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required), - Supports HDR (High Dynamic Range) with HDMI 2.0, - Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports, - Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports, - Supports Microsoft PlayReady |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| LAN | - Gigabit LAN 10/100/1000 Mb/s, - Giga PHY Intel® I211AT, - Supports Wake-On-LAN, - Supports Lightning/ESD Protection, - Supports Energy Efficient Ethernet 802.3az, - Supports PXE, Slots |
|
| Internal I/O Ports | - 2 x Antenna Ports (on I/O Panel Shield), - 1 x PS/2 Mouse/Keyboard Port, - 1 x HDMI Port, - 1 x DisplayPort 1.2, - 1 x Optical SPDIF Out Port, - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)*, - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
|
| USB Port | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years | |

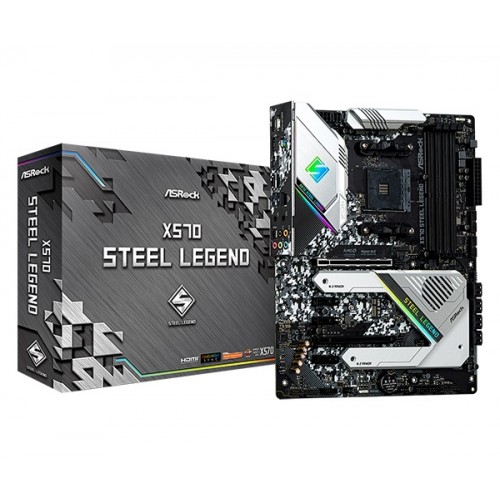

The ASRock Steel Legend Motherboard is built on the AMD X570 chipset, This ASRock X570 Motherboard supporting second- and third-generation AMD Ryzen processors with an AM4 socket. ASRock Steel Legend Motherboard has four memory slots for up to 128GB of dual-channel DDR4 RAM, ASRock X570 Motherboard can be overclocked to up to 4666 MHz. For storage, it's equipped with eight SATA III ports and two M.2 slots. There are two PCIe 4.0 x16 slots for graphics cards and three PCIe 4.0 x1 slots for other PCI-based hardware. Other integrated features include Intel I211AT Gigabit Ethernet and Realtek ALC1220 7.1-channel HD audio. Users can install an optional M.2 E-key module for Wi-Fi and Bluetooth connectivity.
AMD X570 Chipset
The ASRock Steel Legend Motherboard built with The AMD X570 chipset is designed around 3rd generation AMD Ryzen 3000-series processors. Along with multiple improvements, its most noteworthy one is the addition of PCIe 4.0. PCIe 4.0 has roughly double the bandwidth of PCIe 3.0, which is beneficial for graphics cards, networking devices, NVMe drives, and more.
Steel Slot
In This ASRock Steel Legend Motherboard has Steel Slot is a metal reinforced PCIe slot for extra stability and retention force, so heavy graphics cards are secured in place.
Hyper M.2 Slots
The M.2 slots are equipped with heatsink top cover that improves heat dissipation, preventing the cards from overheating and throttling.
ASRock Polychrome Sync & RGB
ASRock Polychrome RGB offers users with a variety of color options and lighting effects to personalize their build with. Users can also sync compatible RGB products for a unified theme.
Active Chipset Cooling
This motherboard features a built-in fan positioned to cool the chipset and prevent overheating and throttling.
10 Power Phase Design, Dr.Mos, and 60A Power Chokes
A 10 power phase design plus Dr.Mos mosfets and 60A power chokes help to deliver stable power to the CPU for more efficient overclocking.
Purity Sound 4
Purity Sound 4 is a combination of hardware and software audio solutions designed to provide users with a better audio experience. These include the Realtek ALC1220 7.1-channel HD audio codec, individual R/L PCB audio layers, a 120dB SNR DAC, and more.
Thunderbolt 3 AIC Header
Users can add Thunderbolt 3 connectivity to their system with the Thunderbolt 3 AIC (Add-In Card) header, which is compatible with the optional Thunderbolt 3 AIC R2.0 card.
Full Spike Protection
ASRock Full Spike Protection includes power regulating technologies to protect the system from unexpected voltage spikes.
