GIGABYTE X470 AORUS ULTRA GAMING RGB MOTHERBOARD
  • GIGABYTE X470 AORUS ULTRA GAMING RGB MOTHERBOARD
  • GIGABYTE X470 AORUS ULTRA GAMING RGB MOTHERBOARD

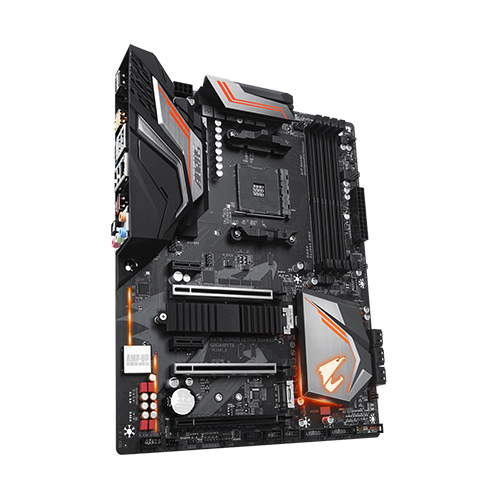

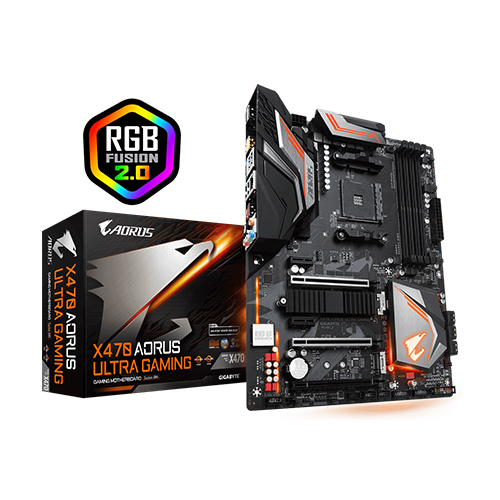

GIGABYTE X470 AORUS ULTRA GAMING RGB MOTHERBOARD

Price: Up Coming
Status: Up Coming
Product Code: 1355
Brand: Gigabyte
Key Features
  • X470 AORUS ULTRA GAMING
  • Supports AMD Ryzen Processor
  • CPU Sockets - AM4
  • Chipset - AMD X470
View More Info

Payment Options

Quantity :
  • Specification
  • Description
  • Reviews ( 0)

Specification:

BASIC INFORMATION
BIOS 2 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Basic Information
Chipset AMD X470
Audio 1 x HDMI port
CPU Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with
Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-series/ Athlon X4 Processors
Memory
Memory Type:

Dual channel memory architecture

Slots:

4 x DDR4 DIMM sockets

Supported Memory:

Support for DDR4 3200(O.C.) / 3000(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory:

64 GB
Graphics
Graphics Graphics:

Integrated Graphics Processor

Max Shared Memory:

2 GB
Connector & Ports
LAN Intel® GbE LAN chip (10/100/1000 Mbit)
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water cooling pump headers

2 x digital LED strip headers

2 x digital LED strip power select jumpers

1 x CPU cooler LED strip/RGB LED strip header

1 x RGB (RGBW) LED strip header

2 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB Type-C™ port, with USB 3.1 Gen 2 support

2 x USB 3.1 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

1 x temperature sensor header

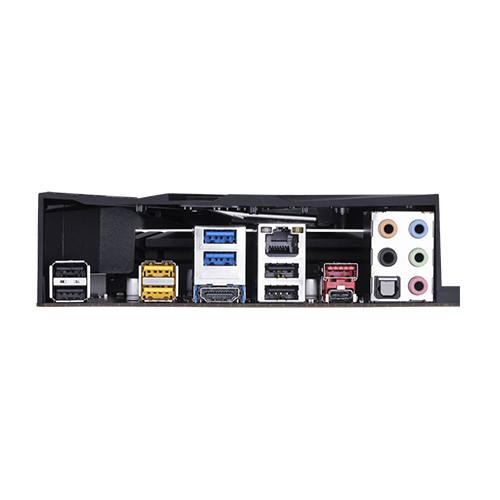

USB Port 4 x USB 2.0/1.1 ports

4 x USB 3.1 Gen 1 ports

1 x USB Type-C™ port, with USB 3.1 Gen 2 support

1 x USB 3.1 Gen 2 Type-A port (red)
WARRANTY INFORMATION
Manufacturing Warranty 03 years

Description :

GIGABYTE X470 AORUS ULTRA GAMING

  • Supports AMD Ryzen™ 5000 series / Ryzen 5000 G-Series / 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 8+3 Phase Hybrid Digital PWM Design
  • 2-Way CrossFire/ SLI Graphics Support with Dual Armor and Ultra Durable™ Design
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
  • Dual Ultra-Fast M.2 with NVMe PCIe X4 with One Thermal Guard
  • RGB FUSION 2.0 with Multi-zone LED Light Show Design, Supports Digital LED & RGB LED Strips
  • Intel® Ethernet LAN with cFOS Speed Internet Accelerator
  • USB DAC-UP 2 with Adjustable Voltage
  • Anti-Sulfur Resistors Design
  • Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
  • CEC 2019 Ready, Save Power with a Simple Click

AORUS X470 Gaming Motherboards feature a design concept inspired by the wings of an eagle. The sleek design of the I/O armor resembles the shape of the wing while the claw marks and airflow design are inspired by the wing’s impressive aerodynamic features.
GIGABYTE motherboards are ready to support the latest AMD Ryzen™ 5000 Series Processors and are backwards compatible with AMD Ryzen™ 4000, 3000, 2000 and 1000 Series Processors. With a rich list of features on GIGABYTE motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design on selected models, GIGABYTE motherboards are perfect for users looking to build the best AMD platform systems.
