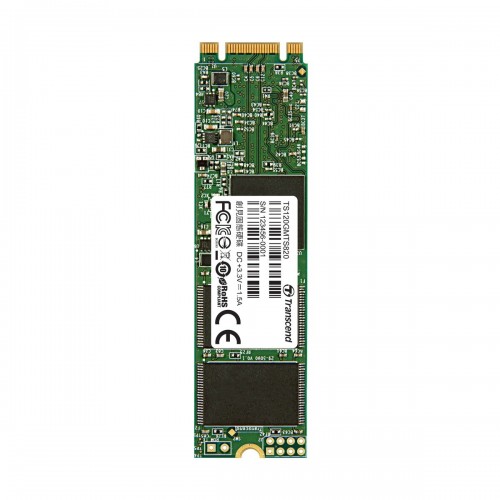

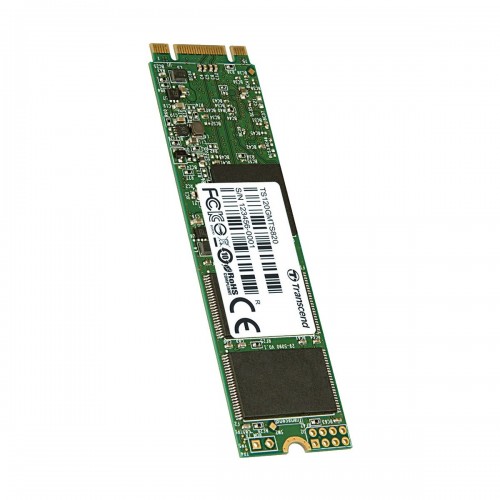

Transcend 820s 120GB M.2 2280 SATA SSD

Transcend 820s 120GB M.2 2280 SATA SSD

Transcend's ultra-compact SATA III 6Gb/s M.2 SSD addresses the high-performance needs and strict size limitations of small form factor devices, best suited for Ultrabooks and thin, light notebooks. This SSD has 120GB capacity. The Boasting high-quality flash chips and enhanced firmware algorithms, Transcend's M.2 SSD delivers optimal reliability. I n this SSD,3D NAND flash unlike the existing planar NAND chips is a type of flash memory in which the memory cells are stacked vertically in multiple layers. The 3D NAND is developed to break through density limitations of the 2D planar NAND, and thus can deliver a greater level of performance and endurance, it is also compliant with M.2 form factors Type 2242 and 2280, Transcend's 3D NAND M.2 SSDs are perfect for use in Ultrabooks and lightweight notebooks. Measured at just 80mm in length, the M.2 SSD makes for an easy upgrade to your computer, taking up little space while giving it a much needed energy boost. Featuring the M.2 standard (80mm), the next generation SATA III 6Gb/s interface and a powerful controller, Transcend's M.2 SSD 820S reaches incredible read and write speeds of up to 550MB/s and 500MB/s. When used as a cache, the M.2 SSD 820S provides 1.5 times faster boot time than conventional hard drives. Dedicated to maximizing high-performance computing, the M.2 SSD 820S features 4k random file read and write speeds up to 75,000 IOPS that deliver incredibly short loading times and almost instant response for heavy graphics and multimedia applications. The M.2 form factor enables expansion and integration of functions onto a single form factor module solution. M.2 SSDs include a smaller form factor but with larger capacities than that of mSATA and half-slim SSDs. Despite its extra-small dimensions, the M.2 SSD 820S contains advanced features to enhance the performance of the SSD. Engineered with a RAID engine and featuring built-in SLC caching technology, it utilizes LDPC coding to correct errors and ensure data integrity.

Features:

• M.2 Type 2280-D2-B-M (Double-sided)
• Bus Interface SATA III 6Gb/s
• Flash Type 3D NAND flash
• Operating Temperature 0 degree centrigate (32 degree Fahrenheit) ~ 70 degree centrigate (158 degrees Fahrenheit)
• Operating Voltage 3.3V+- 5%
• Drive Writes Per Day (DWPD) 0.3 (3 yrs)
