| Key Features | ||
| Capacity | 512 GB | |
| Sequential R/W | Up to 1,700/1,400 MB/s | |
| Flash Type | 3D NAND flash | |
| Interface | NVMe PCIe Gen3 x4 | |
| MTBF | 2,000,000 hour(s) | |
| Form Factor | M.2 2280 | |
| Physical Specification | ||
| Weight | 8 g | |
| Physical Specifications | ||
| Operating Temperature | 0°C (32°F) ~ 70°C (158°F) | |
| WARRANTY INFORMATION | ||
| Warranty | 5 Years | |

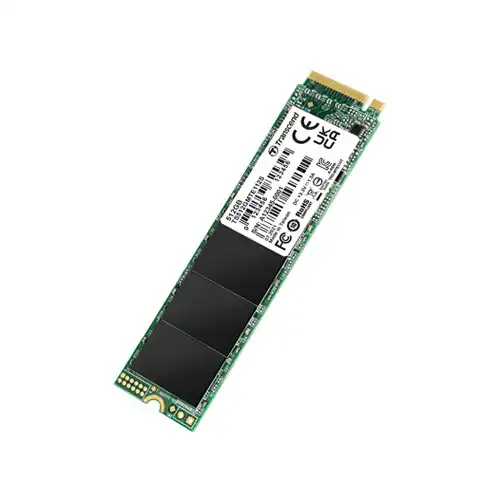

Transcend PCIe 112S 512GB SSD uses the PCI Express Gen3 x4 interface, which is compatible with the newest NVMe standard, to deliver next-generation performance. The PCIe SSD 110S/112S is designed for high-end applications such as digital audio/video creation, gaming, and enterprise use, which demand consistent processing of large workloads with no system delays or slowdowns. The PCIe SSD 110S/112S, which is powered by 3D NAND flash memory, provides not only rapid transfer speeds but also unrivaled durability.
Transcend PCIe 112S 512GB SSD is a significantly quicker interface than SATA (or Serial ATA) for connecting a host computer to solid-state storage devices via one or more lanes, with one transmit and one receive serial interface in each lane, allowing it to meet new performance requirements.
NVMe (or NVM Express) is a host controller interface standard designed to address the needs of enterprise and client applications that utilize PCI Express-based solid-state storage. NVMe calls for better performance vectors than AHCI (Advanced Host Controller Interface), including scalable bandwidth, increased IOPS, and low latency.
Unlike the existing planar NAND chips, 3D NAND flash is a type of flash memory in which the memory cells are stacked vertically in multiple layers. 3D NAND is developed to break through density limitations of the 2D planar NAND, and thus can deliver a greater level of performance and endurance.
Transcend's PCIe 112S 512GB SSD is engineered with LDPC (Low-Density Parity Check) coding, a powerful ECC algorithm, to keep data secure. Manufactured with high-quality NAND flash chips, and engineered dynamic thermal throttling mechanism, the PCIe SSD 110S/112S guarantees superior endurance and stability for high-end applications.
To keep your Transcend SSD running fast and error-free, Transcend PCIe 112S 512GB SSD Scope software application is available for download free of charge. Monitor your SSD's health status with S.M.A.R.T. technology, enable the TRIM command for optimum write speeds, keep your SSD's firmware up-to-date, and migrate data from your original drive to a new SSD with just a few clicks.
