| Basic Information | ||
| Others | Sapphire Features: Dual BIOS TriXX Software Switch Premium Digital Power Design Ultra High-Performance Conductive Polymer Aluminum Capacitors Fuse Protection Tri-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipe Intelligent Fan Control Precision Fan Control Metal Backplate with ARGB ARGB Light Bar Two-Ball Bearing Fans Angular Velocity Fan Blade Assistive System Fan Control Aluminum Alloy Frame Dedicated VRM Cooling Wave Fin Design V Shape Fin Design for GPU Cooling TriXX Supported Fan Check Fan Quick Connect TriXX Boost NITRO Glow External RGB LED MB Synchronization AMD Features: AMD RDNA™ 3 Architecture 54 AMD RDNA 3 Compute Units 48MB AMD Infinity Cache™ Technology DisplayPort 2.1 Support AMD Radiance Display Engine 12GB GDDR6 on 192-Bit Memory Bus PCI® Express 4.0 ready AMD FidelityFX™ Super Resolution technology Microsoft DirectX 12 Ultimate Support Microsoft DirectStorage Support Vulkan Optimized AMD Smart Technologies AMD Software: Adrenalin Edition AMD Noise Suppression AMD Privacy View AMD Radeon Super Resolution technology AMD Link AMD FreeSync Technology |
|
| Type | GDDR6 | |
| Basic Information | ||
| Resolution | 7680×4320 | |
| BASIC Information | ||
| Size | 12GB | |
| Video Memory Specifications | ||
| BUS Type | 192 bit | |
| Memory Clock | 18 Gbps Effective | |
| Stream Processors | 3456 | |
| Memory Interface | PCI-Express 4.0 x16 | |
| Features | ||
| Dimension | 320(L)X 134.85(W)X 61.57 (H)mm | |
| Connectivity | ||
| Connectors | 2 x 8-pin Power Connector | |
| Power Specifications | ||
| Consumption | 252W Total Board Power | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| DirectX | 12 Ultimate | |
| Connector & Ports | ||
| HDMI | 2 x HDMI | |
| Display Port | 2 x DisplayPort | |
| Physical Specification | ||
| Recommended PSU | Minimum 700 Watt Power Supply | |
| WARRANTY INFORMATION | ||
| Warranty | 2 years Warranty | |

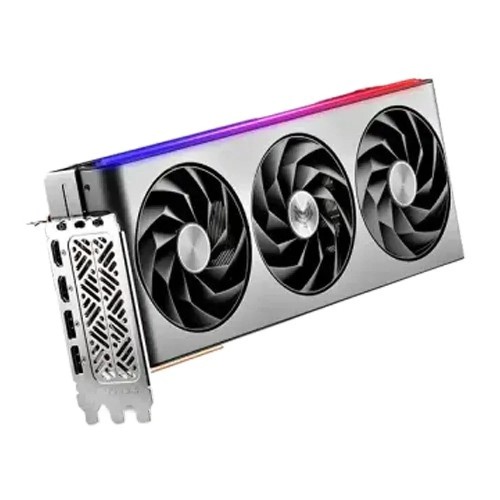

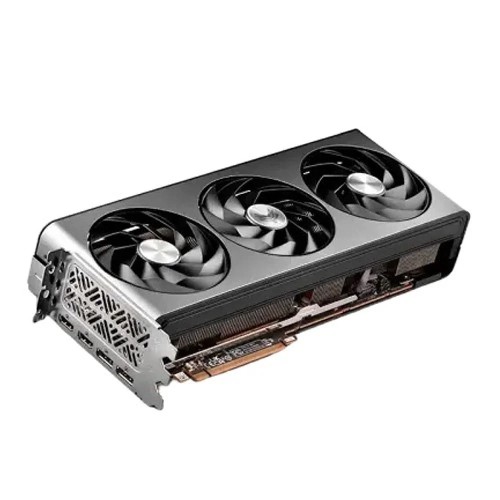

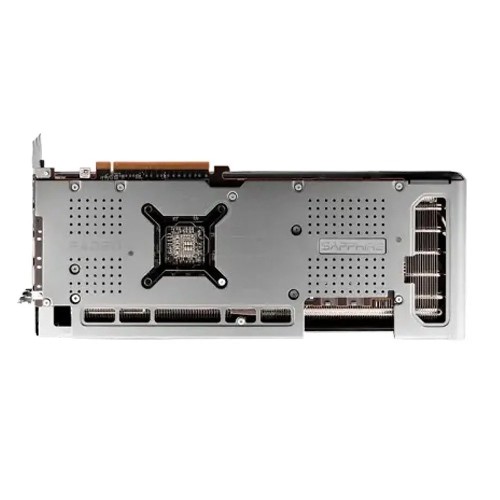

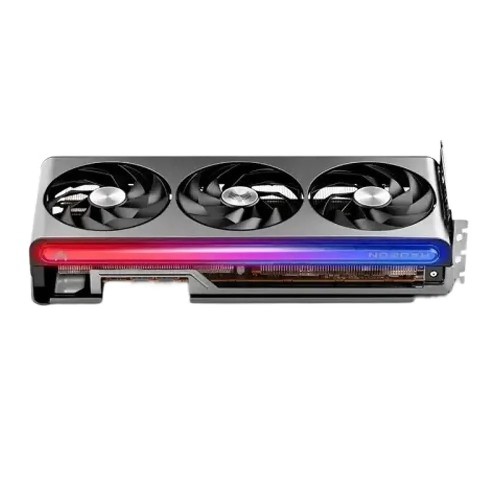

SAPPHIRE NITRO+ AMD Radeon RX 7700 XT Gaming OC 12GB GDDR6 Graphics Card
The SAPPHIRE NITRO+ AMD Radeon RX 7700 XT Gaming OC 12GB GDDR6 is a high-performance graphics card designed for 1440p gaming with excellent cooling and overclocking capabilities. Here are its key specs and features:
Specifications:
GPU: AMD Radeon RX 7700 XT (RDNA 3 architecture)
Memory: 12GB GDDR6
Memory Bus: 192-bit
Boost Clock: Around 2600 MHz (varies based on OC profile)
Stream Processors: 3456
Ray Accelerators: 54
Infinity Cache: 48MB
Power Consumption: ~245W
Recommended PSU: 750W
Connectors: 2x 8-pin PCIe power connectors
Outputs: 3x DisplayPort 2.1, 1x HDMI 2.1
Cooling: Tri-X triple-fan cooling system with robust heat dissipation
Key Features:
Factory Overclocked: Higher clock speeds than reference models for improved performance.
Tri-X Cooling: Advanced cooling with three fans and high-efficiency heat pipes.
ARGB Lighting: Customizable RGB effects.
Dual BIOS: Switch between performance and silent modes.
AMD Features: FSR 3, Radeon Anti-Lag, Smart Access Memory (SAM), and AV1 encoding support.
Performance:
1440p Gaming: Great performance in modern AAA games with high settings.
Ray Tracing: Decent RT performance but not as strong as NVIDIA RTX.
Content Creation: Good for video editing, streaming, and productivity tasks.
