| BASIC INFORMATION | ||
| Supported CPU | Supports 12th/13th Gen Intel Core Processors, Pentium Gold And Celeron Processors LGA 1700 |
|
| Chipset | INTEL B760 |
|
| Graphics | 1x HDMI 1x DisplayPort 1x VGA Support HDMI 1.4, Maximum Resolution Of 4K 30Hz Support DP 1.4, Maximum Resolution Of 4K 60Hz Support VGA, Maximum Resolution Of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
|
| Memory | 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. Overclocking Frequency: • 1DPC 1R Max Speed Up To 4800+ MHz • 1DPC 2R Max Speed Up To 4600+ MHz • 2DPC 1R Max Speed Up To 4400+ MHz • 2DPC 2R Max Speed Up To 4000+ MHz Supports Dual-Channel Mode Supports Non-ECC, Un-Buffered Memory Supports Intel Extreme Memory Profile (XMP) |
|
| Form Factor | MATX 243.84mmx243.84mm |
|
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|
| Memory | ||
| Slots | 1x PCI-E X16 Slot (Qty) 2x PCI-E X1 Slot (Qty) PCI_E1 Gen PCIe 4.0 Supports Up To X16 (From CPU) PCI_E2 Gen PCIe 4.0 Supports Up To X1 (From Chipset) PCI_E3 Gen PCIe 4.0 Supports Up To X1 (From Chipset) |
|

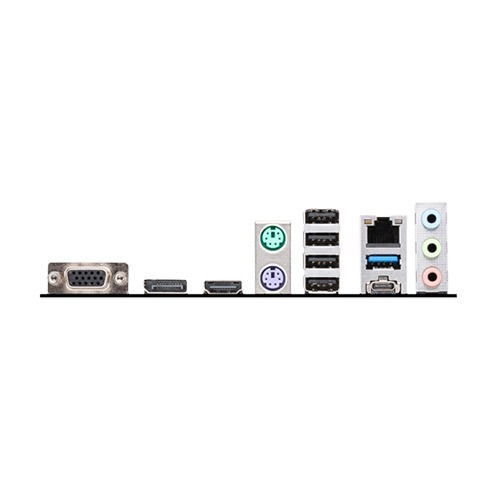

| Connector & Ports | ||
| HDMI | 1x HDMI |
|
| LAN | Realtek® RTL8111H Gigabit LAN |
|
| Supported Storage | 2x M.2 Slot M.2_1 (From CPU) Supports Up To PCIe 4.0 X4 , Supports 2280/2260/2242 Devices M.2_2 (From Chipset) Supports Up To PCIe 4.0 X4 / SATA Mode, Supports 2280/2260/2242 Devices 4x SATA 6G Port |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR)R> 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED Connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 Years |
|
