| Video Memory Specifications | ||
| Type | GDDR7 | |
| Size | 32GB | |
| Resolution | up to 7680 x 4320p | |
| BUS Type | 512-bit | |
| Memory Interface | 28 Gbps | |
| CUDA Cores | 21760 | |
| Interface | ||
| Display Port | 3 x DisplayPort 2.1a |
|
| HDMI | 1x HDMI | |
| HDCP | Yes | |
| Power Specifications | ||
| Connectors | 16-pin x 1 | |
| Display Option | ||
| Multi Display | 4 | |
| Programming Interfaces | ||
| DirectX | 12 Ultimate | |
| OpenGL | 4.6 | |
| Warranty | ||
| Warranty | 3 years | |

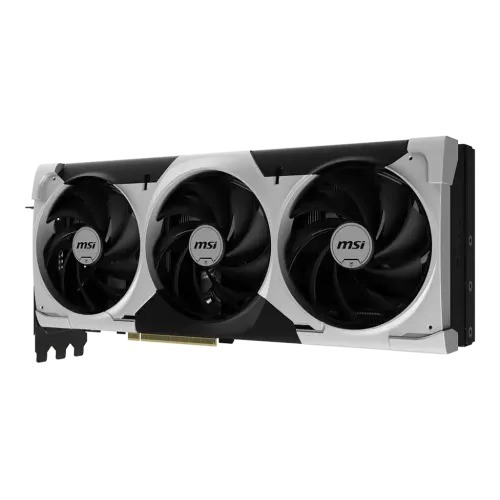

The MSI GeForce RTX 5090 32G VENTUS 3X OC graphics card is based on NVIDIA's Blackwell technology. It has 32GB of GDDR7 memory, a lightning-fast 512-bit memory bus, 28 Gbps speed, 21760 CUDA cores, and DLSS 4 for ground-breaking AI-enhanced graphics. The MSI GeForce RTX 5090 32G VENTUS 3X OC GPU delivers future-proof performance for future applications thanks to its PCI Express Gen 5 x16 interface, which ensures smooth compatibility with the most modern systems. The advanced HYPER FROZR thermal design incorporates innovative cooling technologies to provide silent operation and optimal heat management. The STORMFORCE fan, which comes with the MSI GeForce RTX 5090 32G VENTUS 3X OC graphics card, has seven precisely designed blades with circular arcs and claw texturing to deliver excellent airflow. An integrated Vapor Chamber efficiently transfers heat from the GPU and VRAM to the square-shaped Core Pipes. The Core Pipes have filled fins to improve heat dissipation. The V-shaped cuts in the Air Antegrade Fin 2.0, which increase thermal efficiency, and the skillfully designed wave edges in the Wave Curved 4.0 system of the RTX 50 Series GPU provide superior airflow and turbulence reduction. This MSI GeForce RTX 5090 32G VENTUS 3X OC GPU supports up to four monitors and has three DisplayPort 2.1a outputs, an HDMI 2.1b connection, 4K at 120Hz HDR, 8K at 60Hz HDR, and a customizable refresh rate for an immersive experience. Cooling is enhanced and structural strength is added with a metal backplate with airflow vents and thermal pads. Dual BIOS lets you switch between silent operation and high-performance gaming. Resolutions up to 7680 x 4320 and OpenGL 4.6 are supported with the MSI GeForce RTX 5090 32G VENTUS 3X OC graphics card.
The VENTUS 3X OC model features a factory-overclocked 2400 MHz boost clock, delivering additional GPU performance compared with the standard reference configuration.
Users can also monitor and customize the graphics card through MSI's supported software ecosystem.
MSI's TRI FROZR 4 thermal design combines a large heatsink with a triple-fan configuration to efficiently dissipate heat from the powerful RTX 5090 GPU.
The cooling system is designed to maintain stable performance during extended gaming sessions and intensive professional workloads.
The STORMFORCE FAN system uses specially engineered fan blades to improve airflow and static pressure through the heatsink.
This helps efficiently transfer heat away from the GPU while maintaining controlled operating acoustics.
The RTX 5090 supports NVIDIA DLSS 4, using AI-powered rendering technologies to improve performance and image quality in compatible games.
Dedicated ray-tracing hardware enables realistic lighting, reflections, shadows, and other advanced visual effects.
The MSI RTX 5090 VENTUS 3X OC uses a PCI Express Gen 5 interface, providing a high-bandwidth connection to compatible motherboards.
