About MSI GeForce RTX 5060 Ti 16G SHADOW 2X OC

The MSI GeForce RTX 5060 Ti 16G SHADOW 2X OC is the high-capacity variant of MSI’s mainstream Blackwell lineup, offering a massive 16GB of GDDR7 memory. This card is specifically targeted at users who want a mid-range card capable of handling memory-intensive tasks like 4K texture packs, high-resolution video editing, and modern AI workloads that would otherwise choke on a standard 8GB buffer.

Built on the NVIDIA Blackwell architecture, the card utilizes the GB206 GPU with 4,608 CUDA cores. It features a substantial factory overclock, with a boost clock of 2602 MHz and an "Extreme Performance" mode of 2617 MHz via MSI Center. The transition to GDDR7 memory provides a significant leap in bandwidth, operating at 28 Gbps on a 128-bit bus. This ensures that the 16GB buffer stays fed with data fast enough to maintain high frame rates in demanding 1440p and entry-level 4K gaming.

MSI employs the SHADOW 2X thermal design, which focuses on silent efficiency:

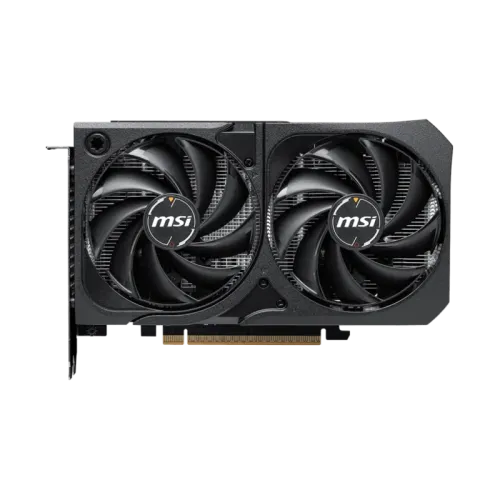

STORMFORCE Fans: These fans use a unique 7-blade design with a claw texture and circular arcs to focus airflow directly onto the heatsink.

Zero Frozr: The fans stop completely during low-load situations (web browsing or video playback), providing a silent 0dB experience.

Compact Footprint: Measuring just 226 x 126 x 41 mm, it easily fits into smaller ATX and Micro-ATX cases where larger triple-fan cards might struggle.

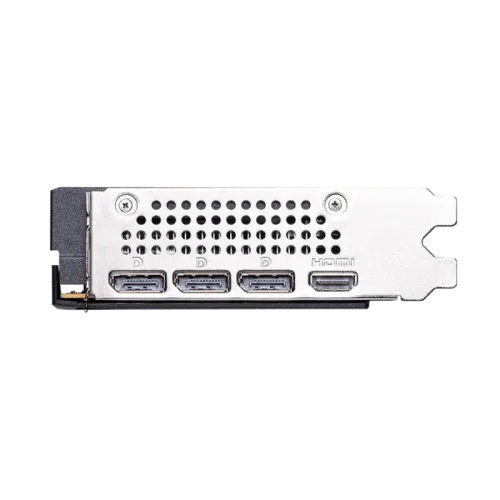

The card is highly efficient with a 180W TDP and requires only a single 8-pin power connector, making it an easy upgrade for older systems with a 600W PSU. It supports the latest PCIe 5.0 interface (running at x8 lanes) and features advanced connectivity, including three DisplayPort 2.1b ports and one HDMI 2.1b port, capable of pushing 8K at 120Hz.
