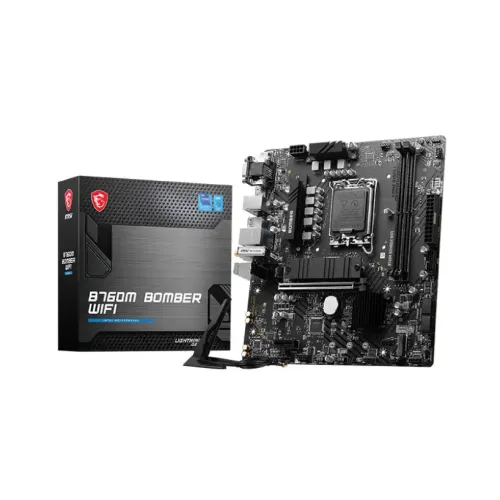

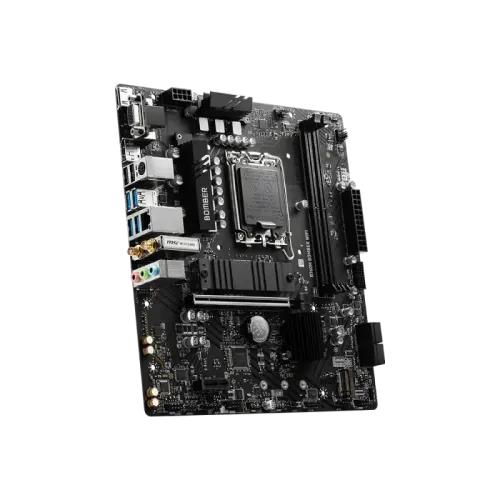

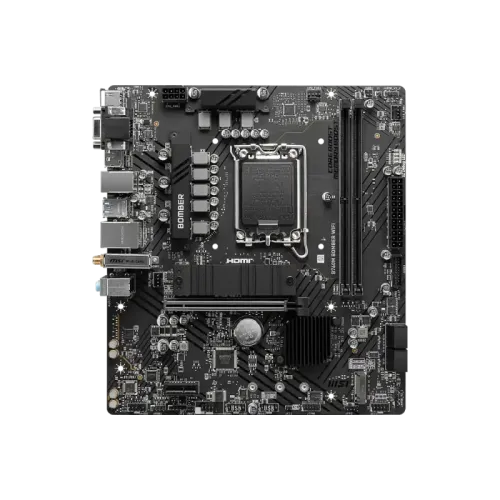

MSI B760M BOMBER WIFI mATX Motherboard

MSI B760M BOMBER WIFI Motherboard

A high-performance motherboard made for gamers, the MSI B760M BOMBER WIFI mATX Motherboard. It ensures compatibility with a broad range of CPUs by supporting Pentium Gold, Celeron, and Intel Core processors for the LGA 1700 socket, including 13th, 14th, and 12th generations. DDR5 RAM with a dual-channel configuration is supported by the MSI B760M BOMBER WIFI Motherboard, enabling quick and effective data transfer at 6400+MHz (OC). With a 12+1 Duet Rail Power System, P-PAK, and 8-pin + 4-pin CPU power connectors, it has an improved power design that guarantees reliable power delivery and peak performance. Additionally, it has a 2.5G LAN with Wi-Fi 6E capability, offering improved network connectivity for multimedia and business applications. With a 6-layer architecture and 2 ounces of thicker copper, the premium PCB is built for increased performance and longevity. With its Audio Boost technology, the MSI B760M BOMBER WIFI Motherboard produces studio-quality sound for a realistic gaming environment.

At PC House, we're dedicated to giving our clients the greatest products at competitive costs. Because of this, we're pleased to provide the affordable MSI B760M BOMBER WIFI Motherboard.

Features of MSI B760M BOMBER WIFI Motherboard

• CPU Compatibility: Supports a wide range of Intel processors, including the latest 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors, using the LGA1700 socket.
• Form Factor: Compact mATX design (220mm x 243.84mm) ideal for smaller cases while offering ample features.
• Chipset: Equipped with the Intel B760 chipset, providing solid performance and advanced features.
• Memory Support: Features two DDR5 memory slots with support for speeds up to 6400 MHz (overclocked) and a maximum capacity of 96GB. It also supports Intel XMP 3.0 for easy memory overclocking.
• Expansion Slots: Includes five PCIe slots:
• 1x PCIe 4.0 x16 (from CPU)
  1x PCIe 3.0 x1 (from chipset)
  1x PCIe 4.0 x4 (from chipset)
  2x PCIe 3.0 x1 (from chipset)
• Storage Options:
• 2x M.2 slots for high-speed NVMe SSDs (PCIe 4.0 x4 and SATA modes)
  4x SATA 6G ports for additional storage devices

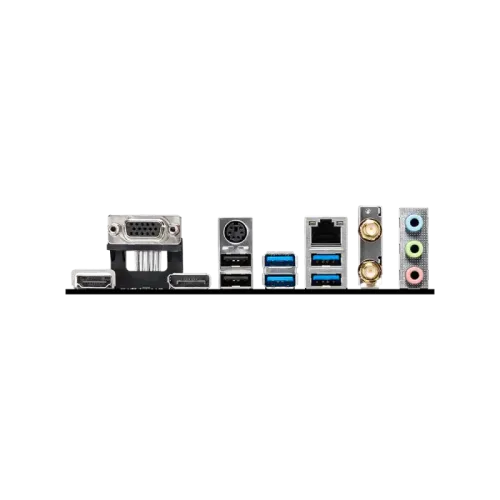

  Graphics Outputs:
• 1x HDMI 2.1 supporting 4K 60Hz
  1x DisplayPort 1.4 supporting 4K 60Hz
  1x VGA (D-Sub) for legacy display compatibility
• Networking and Connectivity:
• Realtek RTL8125B 2.5Gbps LAN for fast wired network connections
  Intel Wi-Fi 6E with support for 2.4GHz, 5GHz, and 6GHz bands, offering speeds up to 2.4Gbps
• Bluetooth 5.3 support
• Internal I/O and Expansion:
• Includes multiple fan headers, RGB LED connectors, and support for TPM 2.0
  Multiple USB ports, including USB 3.2 Gen1 Type-C
  Special Features:
• 4x EZ Debug LEDs for troubleshooting system issues
• Warranty: Comes with a 3-year warranty for added peace of mind.

Is B760M BOMBER WIFI better than MSI PRO B760M-P DDR5?

In general, the MSI PRO B760M-P DDR5 has fewer features than the MSI B760M BOMBER WIFI. It has enhanced audio with S/PDIF output, 2.5Gbps LAN, and Intel Wi-Fi 6E for improved connectivity. More RGB lighting options and extra PCIe slots are other features of the BOMBER WIFI. However, the PRO B760M-P DDR5 can be adequate for minimal requirements and if wireless functions are not a top necessity.

MSI B760M BOMBER WIFI is best for which task?

The MSI B760M BOMBER WIFI motherboard is best suited for:

1. High-End Gaming: With support for the latest Intel processors, high-speed DDR5 memory, and multiple PCIe slots for GPUs, it’s designed to handle modern gaming requirements. The inclusion of Intel Wi-Fi 6E and 2.5Gbps LAN ensures fast and stable network connectivity.

2. Performance-Oriented Tasks: Its capability to support up to 96GB of DDR5 RAM and multiple M.2 slots for NVMe SSDs makes it ideal for demanding tasks like video editing, 3D rendering, and software development.

3. Future-Proof Builds: Featuring the latest technologies, such as PCIe 4.0 and HDMI 2.1, it’s a great choice for building a system that will remain relevant and powerful for years to come.

4. Custom and Enthusiast Builds: The motherboard’s ample RGB lighting options and extensive connectivity options, including USB ports and fan headers, cater to users who want a highly customizable and aesthetically pleasing PC setup.

MSI B760M BOMBER review

For its class, the MSI B760M BOMBER WIFI is a powerful mATX motherboard with outstanding performance. It has two DDR5 slots with strong overclocking capability, supports CPUs from the 12th to 14th generation of Intel, and has PCIe 4.0 lanes for future-proof expansion. It offers great connection and high-definition audio thanks to Intel Wi-Fi 6E, 2.5Gbps LAN, and flexible I/O options. Its easy-to-use EZ Debug LEDs and extensive RAID support make it a good option for high-performance projects.
