| BASIC INFORMATION | ||
| Form Factor | mATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
|
| Basic Information | ||
| Chipset | Intel B460 Chipset | |
| Audio | Realtek ALC892/ALC897 Codec 7.1-Channel High Definition Audio |
|
| CPU | Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket. | |
| Memory | ||
| Memory | Type: DDR4 Slots: 4x DDR4 memory slots Supported Memory: Intel Core i7/ i9 Support DDR4-2933 Memory (Max.) Intel Core i5 (Below) Supports DDR4-2666 Memory (Max.) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Maximum Memory: 128GB |
|
| Graphics | ||
| Graphics | 1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz | |
| LAN | 1x Realtek RTL8111H Gigabit LAN Controller | |
| Supported Storage | Intel B460 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260 / 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready for the M2_2 slot only Supports Intel Smart Response Technology for Intel Core processors |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 2x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x parallel port connector 1x serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector |
|

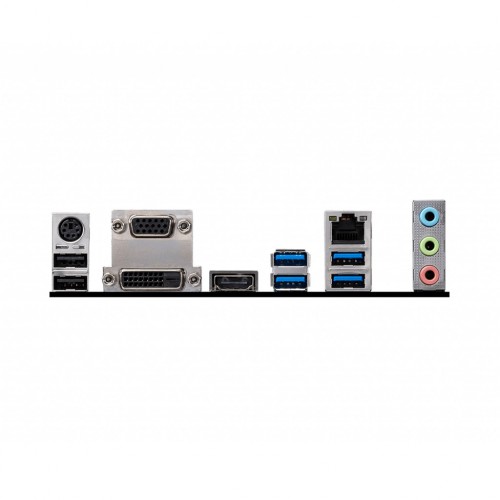

| USB Port | Intel B460 Chipset 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 Years Warranty | |

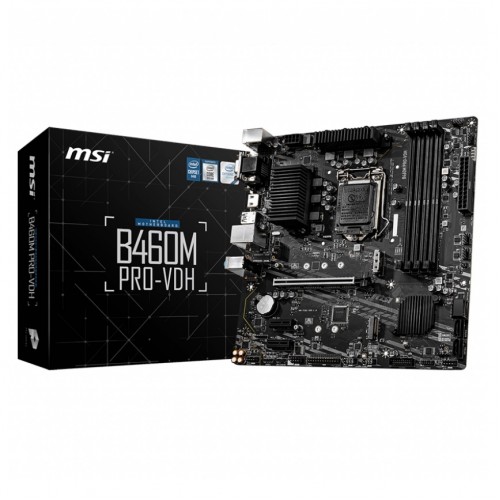

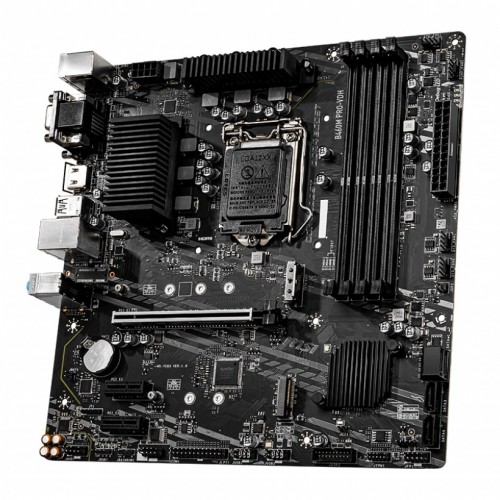

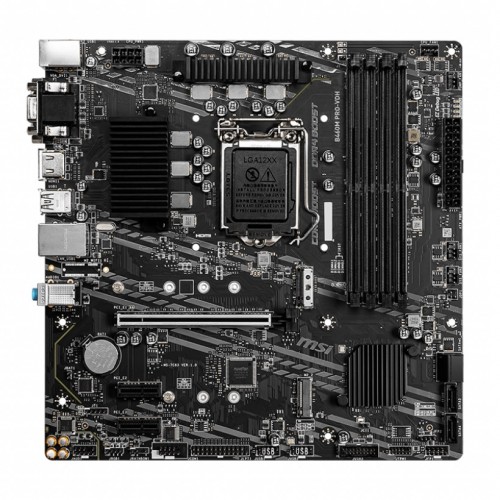

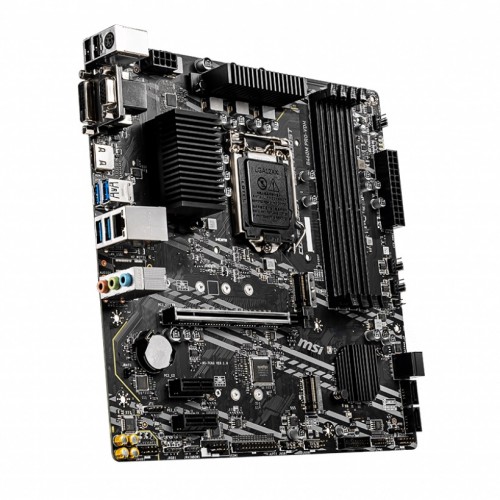

The MSI B460M PRO-VDH allows users to work smarter by delivering an effective and productive experience. It Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket. It Features stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. It lets users manage speeds and temperatures for all the system and CPU fans. Total Fan Control allows users to check primary system characteristics in a simplified graphical interface. which also enables users to set up to 4 temperature targets for CPU and motherboard and that will adjust troubleshoots. MSI PRO motherboard delivers all the latest storage standards, which permit users to connect any ultra-fast storage device. MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference. Transfer lots of data, music, and movies over USB in an easier way. USB 3.2 ports are ready in both front and rear IO provides a wide variety of options to connect your USB 3.2 devices.
