| BASIC INFORMATION | ||
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Basic Information | ||
| Chipset | AMD TRX40 | |
| Audio | 1 x front panel audio header Realtek ALC4050H codec+ ALC1220-VB codec Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| CPU | AMD Socket sTRX4: Support 3rd Generation AMD Ryzen Threadripper processors | |
| Memory | ||
| Memory | Type: Dual Channel DDR4 Memory Technology Slots: 8 x DDR4 DIMM sockets Supported Memory: - Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules Maximum Memory: up to 256 GB |
|
| Graphics | ||
| Graphics | Multi-Graphics Technology Support for AMD Quad-GPU CrossFire and 3-Way/2-Way AMD CrossFire technologies Support for NVIDIA Quad-GPU SLI and3-Way/2-Way NVIDIA SLI technologies |
|
| Connector & Ports | ||
| LAN | Intel GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P) 8 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
|
| Internal I/O Ports | iTE I/O Controller Chip 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ header, with USB 3.2 Gen 1/Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x GIGABYTE add-in card connector 2 x temperature sensor headers 1 x Clear CMOS jumper |
|

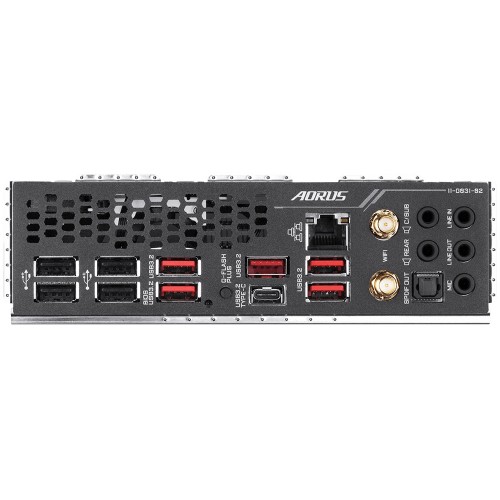

| USB Port | CPU: 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support Chipset: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C™ port with USB 3.2 Gen 2/Gen 1 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset + 2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years warranty | |

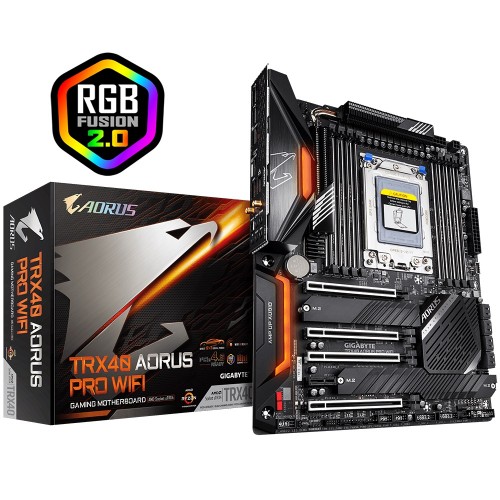

Gigabyte TRX40 AORUS PRO WIFI ATX sTRX4 Motherboard Supports 3rd Gen AMD Ryzen Threadripper Processors.This motherboard comes with Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs, 12+2 Phases Infineon Digital VRM Solution with 70A Power Stage, Advanced Thermal Design with Fins-Array Heatsink, Intel GbE LAN with cFosSpeed Internet Accelerator, 3 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guards, Onboard Intel WiFi 6 802.11ax 2T2R & BT 5, 120dB SNR AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors, RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design. This AMD motherboard support Addressable LED & RGB LED Strips,Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Front & Rear USB 3.2 Gen 2 Type-C™ Header, Q-Flash Plus Update BIOS Without Installing CPU with Memory and Graphics Card. This TRX40 AORUS PRO WIFI reaches a perfect balance between style and performance by combining the media acclaimed Fins-Array heatsink with pipe to provide lower MOSFET temperatures for enthusiasts, overclockers and professional gamers. A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. The TRX40 AORUS PRO WIFI provides all next generation network, storage, and WIFI connectivity to keep you up to speed. To unleash the full potential of the 3rd Generation AMD Ryzen Threadripper CPU, the motherboard requires the best CPU power design with the best quality components and GIGABYTE R&D design capability, TRX40 AORUS PRO WIFI is a true beast among motherboards. This motherboard is featuring with Full PCIe 4.0 Design, including PCIe 4.0 Ready PCB, PCIe 4.0 Slots, PCIe 4.0 M.2 Connectors and delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts.This moptherboard also features with RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make their PC more unique and stylish.
