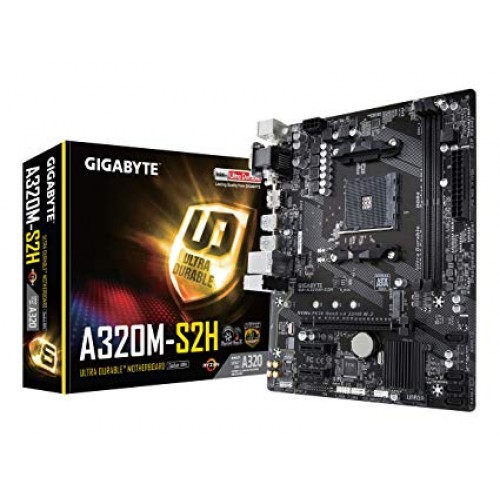

GIGABYTE GA-A320M-S2H AMD MICRO ATX MOTHERBOARD

GIGABYTE GA-A320M-S2H AMD MICRO ATX MOTHERBOARD

The GIGABYTE GA-A320M-S2H AMD Micro ATX Motherboard is an affordable and compact motherboard designed to support AMD Ryzen processors, making it an excellent choice for budget-oriented users looking to build a reliable and efficient system.The motherboard features an AMD A320 chipset and supports a wide range of AMD Ryzen processors, including Ryzen™ processors and 7th Generation A-series/ Athlon™ processors. This makes it suitable for various computing tasks, such as office work, multimedia consumption, and light gaming.With a Micro ATX form factor (24.4cm x 19.5cm), the GA-A320M-S2H motherboard is ideal for small form factor builds, enabling users to create space-efficient systems without compromising on essential features.For memory, the motherboard supports dual-channel memory architecture with two DDR4 DIMM slots. It allows for memory modules with frequencies ranging from 2133MHz to overclocked speeds like 3200MHz (OC), depending on the CPU used. The support for Extreme Memory Profile (XMP) memory modules simplifies the process of achieving faster memory speeds through easy overclocking.Regarding graphics, the motherboard provides multiple video output options, including D-Sub, DVI-D, and HDMI ports. Users can connect displays with resolutions up to 4096x2160@24Hz via the HDMI port. The integrated graphics capability allows for casual gaming and multimedia applications.Audio-wise, the motherboard incorporates a Realtek® ALC887 audio codec, offering High Definition Audio with support for 2/4/5.1/7.1-channel audio configurations. To enable 7.1-channel audio, users can utilize an HD front panel audio module and configure the multi-channel audio feature through the audio driver. Additionally, the motherboard supports S/PDIF Out for digital audio output.Storage options include a CPU M.2 connector that supports both SATA and PCIe x4/x2 SSDs, providing high-speed data transfer capabilities. However, it's essential to note that M.2 SATA SSDs are supported only when using specific AMD Athlon™ 200-series/7th Generation A-series or Athlon™ APUs. The motherboard also offers four SATA 6Gb/s connectors, supporting RAID 0, RAID 1, and RAID 10 configurations for data redundancy and performance improvement.Connectivity options include USB ports on both the chipset and CPU. The motherboard provides four USB 3.1 Gen 1 ports on the back panel, along with two USB 3.1 Gen 1 ports available through the internal USB header. Additionally, there are six USB 2.0/1.1 ports (two on the back panel and four available through internal headers) for connecting various peripherals.The Gigabit Ethernet port powered by the Realtek® GbE LAN chip ensures stable and fast network connectivity.

GET READY FOR AMD RYZEN 3000-SERIES

GIGABYTE AM4 motherboards are ready to support the latest AMD Ryzen 3000 Processors and are backwards compatible with AMD Ryzen 2000 and 1000 Processors. With a rich list of features on GIGABYTE AM4 motherboards such as Ultra Durable Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design, GIGABYTE AM4 motherboards are perfect for users looking to build the best AMD platform systems.

GET READY FOR AMD RYZEN™ 3000-SERIES

GIGABYTE AM4 motherboards are ready to support the latest AMD Ryzen™ 3000 Processors and are backwards compatible with AMD Ryzen™ 2000 and 1000 Processors. With a rich list of features on GIGABYTE AM4 motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design, GIGABYTE AM4 motherboards are perfect for users looking to build the best AMD platform systems.

Fast Onboard Storage with NVMe

• PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)
• GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces* for M.2 SSD devices.

High Definition Digital Outputs

Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.

HDMI™ - The Next Generation Multimedia Interface

HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

All Hybrid Fan Pin Headers

• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
• Supports up to 2 amps with built-in overcurrent protection—a must for high-end high current fans.

Gigabyte GA-A320M-S2H FEATURES

• Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/
• 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
• High Quality Audio Capacitors and Audio Noise Guard
• Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
• Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
• GIGABYTE™ UEFI BIOS
• All New GIGABYTE™™ APP Center, Simple and Easy Use
