| Basic Information | ||
| Chipset | AMD B550 | |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
|
| CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| BASIC INFORMATION | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory | ||
| Memory | Type: Dual-Channel Architecture Slots: 4 x DDR4 memory slots Supported Memory: 3rd Gen AMD Ryzen Processors: Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules Maximum Memory: support up to 128GB |
|
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
|
| Graphics | ||
| Graphics | Graphics: Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Max Shared Memory: 16 GB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| LAN | Realtek GbE LAN chip (1000 Mbit/100 Mbit) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
|

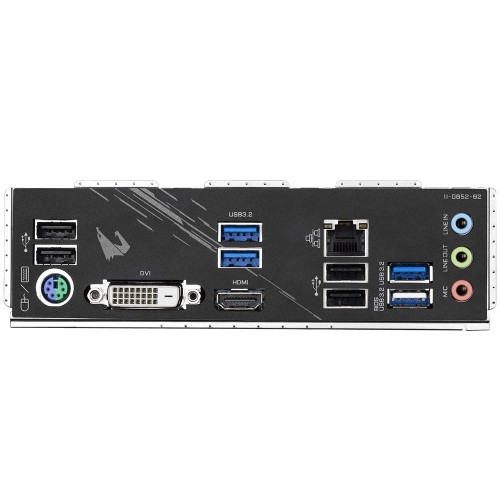

| USB Port | 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years warranty | |

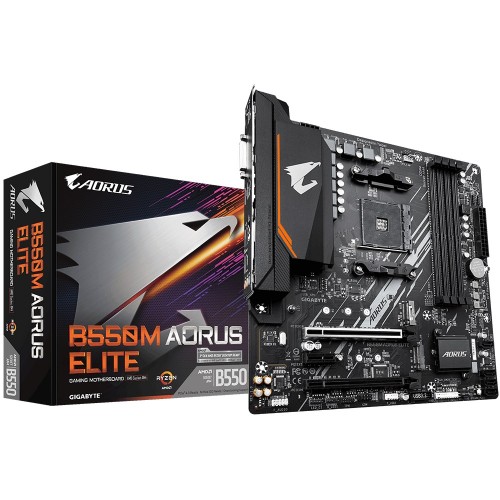

The Gigabyte Aorus B550M Elite is a feature-rich and high-performance micro ATX motherboard designed to cater to the needs of PC enthusiasts and gamers. With support for AMD Ryzen 5000/4000G Series and 3rd Generation Ryzen processors, this motherboard delivers exceptional processing power and gaming performance, making it an excellent choice for building a powerful and reliable gaming rig.One of the standout features of this motherboard is its audio capabilities. It is equipped with the Realtek ALC887 audio codec, providing High Definition Audio with support for 2/4/5.1/7.1-channel configurations. This ensures immersive sound quality for gaming, entertainment, and multimedia applications, enhancing the overall gaming experience.The BIOS on the Gigabyte Aorus B550M Elite is powered by a 256 Mbit flash and utilizes a licensed AMI UEFI BIOS. It supports various standards, including PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0, ensuring seamless system management and configuration options for users.The motherboard is built around the AMD B550 chipset, which offers excellent connectivity and performance capabilities. It supports dual-channel memory architecture with four DDR4 memory slots. Users can install up to 128GB of RAM, depending on the processor used. The supported memory speeds are impressive, ranging from standard frequencies to overclocked options, providing flexibility for users looking to optimize system performance.For graphics, the Aorus B550M Elite features integrated graphics support for 3rd Generation AMD Ryzen processors with Radeon Graphics. It comes with a DVI-D port and an HDMI port, both capable of delivering high resolutions of up to 4096x2160@60Hz. The maximum shared memory is 16GB, ensuring smooth graphics performance for casual gaming and multimedia tasks.In terms of storage, the motherboard offers multiple options. It has two M.2 connectors, one integrated into the CPU (M2A_CPU) with support for SATA and PCIe 4.0 x4/x2 SSDs for 3rd Generation Ryzen processors, and the other integrated into the chipset (M2B_SB) with support for SATA and PCIe 3.0 x4/x2 SSDs. Additionally, there are four SATA 6Gb/s connectors with support for RAID 0, RAID 1, and RAID 10 configurations, providing ample storage and data redundancy options.Connectivity-wise, the Gigabyte Aorus B550M Elite offers a selection of USB ports, including four USB 3.2 Gen 1 ports on the back panel and two more available through an internal USB header. It also provides six USB 2.0/1.1 ports (four on the back panel and two available through an internal USB header) for connecting various peripherals.
This motherboard pairs third-generation AMD Ryzen processors with high PCIe 4.0 memory bandwidth through the B550 chipset for maximum performance.
With NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x4 M.2 connectors, this motherboard allows you to experience NVMe mode or SATA mode connectivity. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors support RAID 0/1/10 modes.
Realtek LAN provides high performance for gamers and features automatic bandwidth allocation to ensure highest network priority.
HDMI 2.1 offers 48 Gb/s of bandwidth, which unlocks the ability to transfer multiple video streams as well as a native cinematic 21:9 aspect ratio, and Full HDR and HDCP 2.3 support. HDMI 2.1 is also backward compatible with HDMI 2.0/1.4.
Smart Fan 5 keeps your system cool, allowing you to interchange the fan headers to reflect different thermal sensors at different locations on the motherboard. Smart Fan 5 supports both PWM and Voltage mode fans, making this motherboard more liquid cooling friendly.
RGB Fusion 2.0 gives you full control of onboard RGB and external RGB devices and lights. Already feature filled with customizable colors and patterns, RGB Fusion 2.0 also has addressable LED support.
