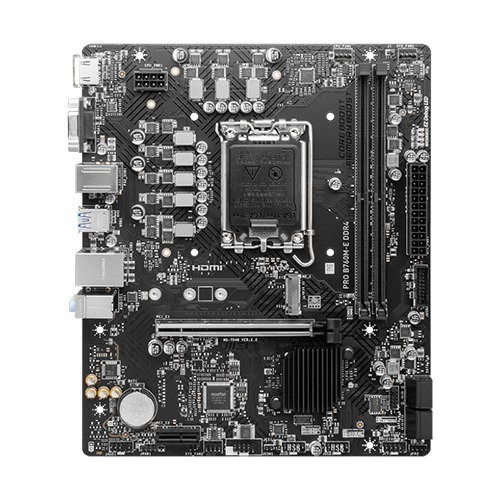

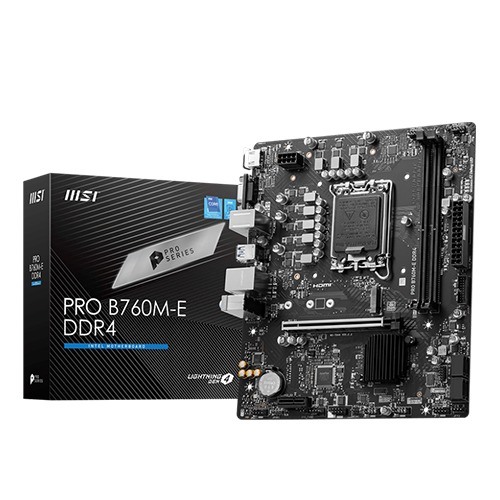

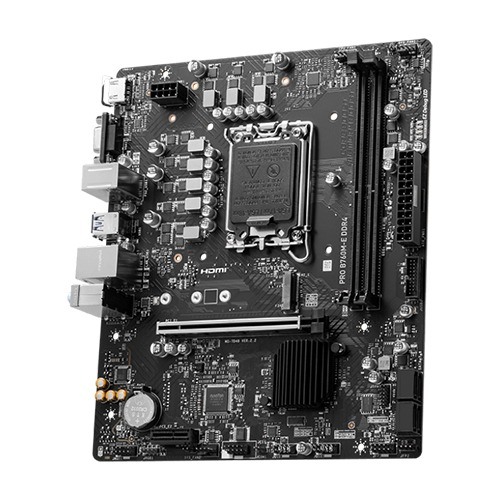

MSI PRO B760M-E DDR4 MOTHERBOARD

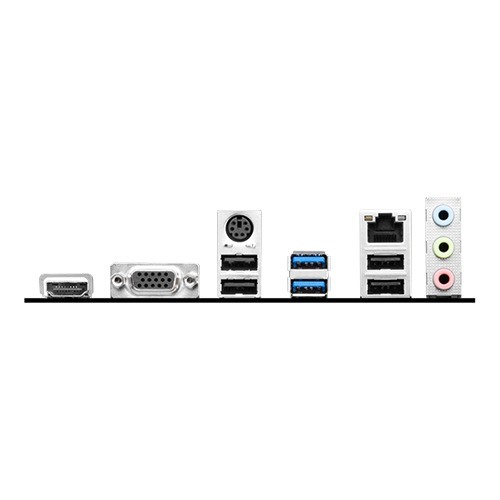

MSI PRO B760M-E DDR4 is a motherboard that supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors with LGA 1700 socket. The motherboard has a memory capacity of up to 64GB with 2 DDR4 memory slots and supports a variety of memory frequencies ranging from 2133MHz to 4800MHz (OC) including dual-channel mode and IntelExtreme Memory Profile (XMP). In terms of onboard graphics, the motherboard has 1 HDMI port and 1 VGA port, with HDMI 1.4 supporting a maximum resolution of 4K 30Hz and VGA supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz. However, graphics specifications may vary depending on the CPU installed. Expansion slots include 1 PCI-E x16 slot and 1 PCI-E x1 slot. PCI_E1 Gen PCIe 4.0 supports up to (From CPU) while PCI_E2 Gen PCIe 3.0 supports up to (From Chipset). The motherboard has 1 M.2 slot that supports PCIe 4.0 x4 / SATA mode and 4 SATA 6G slots, with SATA5 being unavailable when installing M.2 SATA SSD in the M2_2 slot.
The motherboard also supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices. In terms of connectivity, the motherboard has 4 USB 2.0 (Rear) and 4 USB 2.0 (Front), 2 USB 3.2 Gen1 Type A (Rear) and 2 USB 3.2 Gen1 Type A (Front). The motherboard also features Realtek RTL8111H Gigabit LAN and Realtek® ALC897 Codec 7.1-Channel High Definition Audio. Internal I/O includes 1 Power Connector(ATX_PWR), 1 Power Connector(CPU_PWR), 1 CPU Fan, 2 System Fan, 2 Front Panel (JFP), 1 Chassis Intrusion (JCI), 1 Front Audio (JAUD), 1 Com Port (JCOM), 1 RGB LED connector(JRGB), 1 TPM pin header(Support TPM 2.0), 2 USB 2.0 ports, and 1 USB 3.2 Gen1 Type A port. The motherboard also features 4x EZ Debug LED and supports Windows 11 64-bit, Windows® 10 64-bit. The PRO B760M-E DDR4 is an mATX form factor measuring 200mmx236.16mm.
