DOPAH ILD-1086
|
DISPLAY
|
|
Model & Size
| Dopah ILD-1086 86''
|
Display Ration
| 16:9
|
Brightness
| 410cd/M2
|
Contrast Ratio
| 1400:1
|
Backlight
| LED
|
View Angle
| 178° (V)/178° (H)
|
Resolution
| 3840(H) * 2160(V)
|
Video Standard
| PAL/SECAM
|
Audio Power
| 2*15W
|
TV MAIN BOARD
|
|
| - SD Card: 1
- Multimedia USB: 2
- HDMI: 2
- USB30: 2
- RF (TV): 1
- VGA: 1
- VGA Audio: 1
- YPbPr(MINI): 1
- AV (MINI): 1
- RJ45: 1
- RS232: 1
|
Output Interface
| - USB Touch: 1
- Earphone Output: 1
- AV OUT (MINI): 1
- Coaxial Output (Orange): 1
|
Centralized Control Port
| - LAN: 3
- WAN: 1
- WIFI: 2.4G
- USB3.0 (PC): 3
- Display Port: 1
- Reset: 1
- Debug: 1
|
Preposition Interface
| - USB2.0 (PC): 4
- HDMI: 1
- USB Touch: 1
- Multimedia USB: 1
- VGA IN: 1
- VGA Audio IN: 1
- MIC IN: 1
|
PORT CONFIGURATION
| USB3.0 * 4, Campus Radio * 1
|
Top Port
|
|
USB Play Format
| Support Video Play: MPEG1, MPEG2,MPEG,H264,RM,RMVB,MOV,MJPEG,VC1,Divx,FLV; Audio: MP3, WMA, AAC; PIC: JPG, BMP, PNG |
Campus Radio
| Support RCA Campus Radio, And Set Campus Broadcast Channel As A Priority
|
Centralized Control System
| Support Remote Power ON/OFF, Unified Switching Signal Channel, Text Push, Picture Push, Ringing Function Etc.
|
Wireless Router
| Build-In Automatic WIFI Hotspot
|
Hot Key
| Both Side 20 Hotkeys
|
Preposition Key
| 9 Keys (7 For TV, 1 For PC, 1 For Energy Saving), One Key Turn On TV And PC; Can Switch TV Separately; A Key Switch Backlight Energy-Saving When PC Is ON;
|
OPS MODULE
|
|
Main Board Model
| H61/H81 (Optional)
|
Memory
| DDR3 1333 2G/4G/8G (Optional)
|
Operating System
| Windows 10
|
Sound Card
| Integration
|
WIFI
| Optional
|
|
USB2.0
| 4
|
Earphone Output
| 1
|
VGA OUT
| 1
|
RJ45
| 1
|
CPU
| I3/I5/I7 (Optional)
|
Hard Disk
| 500G HDD/128G SSD/ 256G SSD (Optional)
|
Graphics Card
| Integration
|
Wireless Mouse/KeyPad
| Optional
|
Bluetooth
| Extensible
|
USB3.0
| 2
|
MIC
| 1
|
HDMI
| 1
|
TOUCH SCREEN
|
|
Touch Technology
| Multiple Infrared Scanning Technology
|
Multi-Touch
| 10 Touchpoints
|
Touch Embedding Method
| Preposition Embedded (Front Maintenance)
|
Touch And Drive Method
| HID Free Drive
|
Writing Surface Material
| 4MM Tempered Glass (Anti-Glare Is Optional)
|
Induction Method
| Finger, Writing Pen, Gloved Hand Or Any Other Non-Transparent Touch-Sensitive Media
|
Positioning Resolution
| 4096*4096
|
System Communication Port
| USD2.0
|
Sampling Rate
| >=120Hz
|
Cursor Speed
| Max. 300 Dots/Second
|
Coordinate Output
| 32768(W) * 32768(D)
|
Positioning Accuracy
| <=+-2mm
|
Touch Times
| More Than 60 Million Times
|
Calibration
| Calibration-Free
|
Anti-Interference
| Incandescent Lamp (220V, 100W), Vertical Distance Above 350mm The Illumination Of Sunlight 90000Lux
|
Measuring Ability
| Software Detection Can Test Equipment
|
Remote Upgrade Function
| Remote Touch Hardware Control Program (MCU) Upgrade
|
Power Supply
| USB 5.0V Direct Supply
|

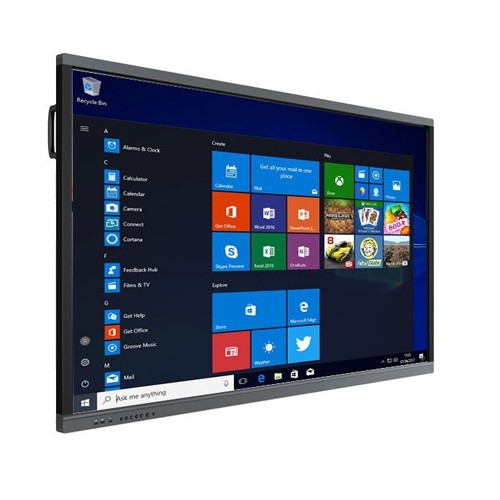

DOPAH ILD-1086 86 INCH LED ALL-IN-ONE MULTI-TOUCH INTERACTIVE SMARTBOARD In Bangladesh
Dopah ILD-1086 All-In-One Multi-Touch Interactive Smartboard Has An LED Display, The Latest Interactive Flat Panel Technology, 86 Inch Flat Panel Allows You To Show Any Content On The Screen In A 4K 3840 X 2160 Resolution And 350 Nits Of Brightness, 10 Point Multi-Touch Screen Allows You To Control And Annotate Over Any Application That Is Running On A PC, MAC Or Chrome OS Directly From The Screen, Can Use Gestures To Control Applications.
Features
- Infrared 10 Multi-Touch Points
- Both Side 20 Hotkeys
- 4k High-Definition Display
- Proposition 10 Interfaces
- Built-In WIFI Access
- Automatic Eye-Protection Function
- Front Build-In Stereo Speakers (Optional)
