| Key Features | ||
| Data Rate | 5 GHz Wi-Fi Speed: 2882 Mbps 2.4 GHz Wi-Fi Speed: 688 Mbps |
|
| Antenna | 4 × Fixed Antennas | |
| Button | WPS Button, Reset Button | |
| Frequency | 5 GHz, 2.4 GHz | |
| Network Standard | QoS: Per-User Rate Limiting DHCP: Address Reservation DHCP Client List Server IP Versions: IPv4/IPv6 IPv6 Protocols: Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite IPTV/VLAN: Bridge Tag VLAN VoIP VLAN IPTV VLAN TTL Customization: Extend Spoof Custom IGMP: IGMP Proxy IGMP Snooping Forwarding: Port Forwarding Port Triggering UPnP DMZ Firewall: SPI Firewall DoS Protection Block PING Application Layer Gateway: IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough |
|
| Interface | Gigabit RJ45 Ports: 4 Ethernet Notes: 1× WAN port, the rest are LAN ports LED: System Internet 2.4 GHz Wi-Fi 5 GHz Wi-Fi WAN LAN Physical Buttons: WPS Button Reset Button Power Input: DC Jack |
|
| Wireless | 5 GHz Wi-Fi Speed: 2882 Mbps 2.4 GHz Wi-Fi Speed: 688 Mbps 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) Wi-Fi Antennas: 4× Fixed 5 GHz Antenna Gain Max: 7.8dBi 2.4 GHz Antenna Gain Max: 5.2dBi FEM or PA/LNA: 5 GHz: 2× External 2.4 GHz: 2× External Beamforming: True Range Performance: Max: 220 m (722 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. Wall Performance: Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'') |
|
| Others | CPU: Chipset: BCM6764 CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7 Memory/Storage: Flash/ROM: 128 MB (1 Gbit) NAND DDR/RAM: 512 MB (4 Gbit) DDR3L 4-Stream Dual-Band Wi-Fi 7 Max Capacity: 512 200 Connected Devices Recommended Max Wi-Fi Channel Width: 160 MHz Wi-Fi Security: WPA/WPA2/WPA3 Guest Network: 2.4 GHz, 5 GHz WPS: True Covers 130 m² (1,400 ft²) Cudy Mesh, VPN Server and Client Cudy App, Cloud Control, VPN Server and Client Reliability: Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing General: Operation Modes: Wi-Fi Router Access Point Multi-Band Backhaul: True WAN Mode: DHCP Static IP PPPOE PPTP L2TP System: LED Control: Ture Local Control Method: Config Web Page App Control Remote Control Method: Config Page via HTTPS App Control TR069/TR098/TR111/TR181 Firmware Upgrade: Local Update App (Over the Air) Online Update Reliability: Timed Reboot Backup and Restore Diagnostic Tools: Diagnosis Ping Traceroute NSLookup System Log Management All Devices Management: Wi-Fi Time Schedule MAC Filter IP/MAC Binding Per-Devices Management: Internet On/Off VPN On/Off Online Time Schedule Device Rename Content Management: Domain Filter IP Filter |
|
| Power Source | ||
| Power Mode | Power Methods: DC DC: 12V 1A Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC Max Power Consumption (W): 8.5W |
|
| Physical Dimension | ||
| Dimension | 183.3×109×38 mm 7.22×4.29×1.5 inches |
|
| Weight | 333.5 g (11.76 oz.) | |
| Manufacturer warranty | ||
| warranty | 1 year | |

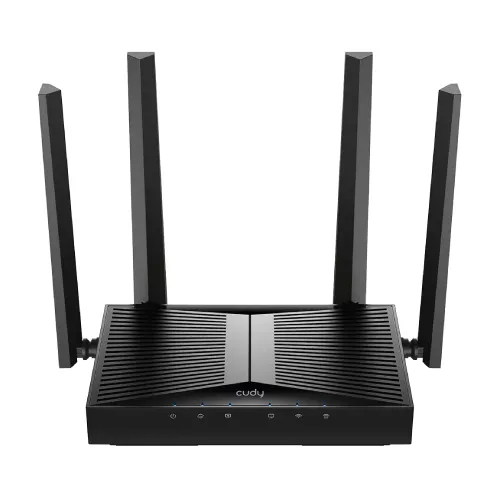

The Cudy WR3600 is a powerhouse BE3600 Gigabit Mesh router that introduces the high-efficiency world of Wi-Fi 7 (802.11be) to demanding home and office environments. Designed to handle the modern surge of data-heavy applications, this router offers a massive leap in speed and network capacity, ensuring that high-resolution streaming, competitive gaming, and professional remote work coexist seamlessly on a single network.
The WR3600 delivers an aggregate wireless throughput of 3.6Gbps across its dual bands:
5GHz (2882Mbps): Optimized for ultra-fast data transfer using 160MHz channels and 4K-QAM modulation.
2.4GHz (688Mbps): Provides broad, reliable coverage for legacy devices and smart home peripherals.
A key advantage of Wi-Fi 7 in this model is Multi-Link Operation (MLO), which allows devices to connect to multiple bands simultaneously. This reduces latency and provides a more stable connection, especially in environments crowded with competing signals.
At its heart, the WR3600 features a 2.0GHz Quad-Core CPU paired with 512MB of RAM, allowing it to support up to 200 connected devices without performance degradation. To ensure the signal reaches every corner of your space, it is equipped with four high-gain fixed antennas and external Front-End Modules (FEM). This combination provides focused coverage up to 1,400 sq. ft. and improves signal penetration through walls.

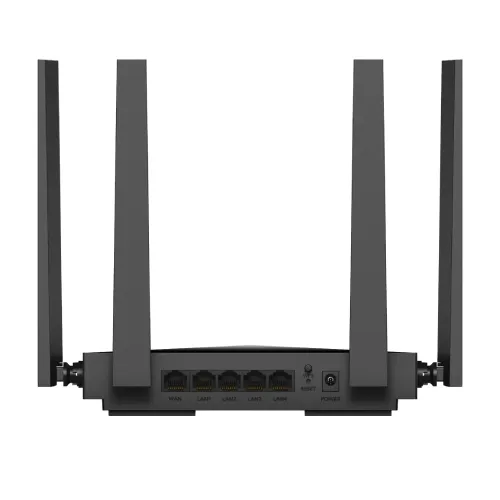

As part of the Cudy Mesh ecosystem, the WR3600 can be paired with other Cudy units to create a unified whole-home network with seamless roaming. It also features five Gigabit Ethernet ports (1 WAN, 4 LAN) for maximum wired speeds. Security is handled by the latest WPA3 protocol, and the router includes a built-in VPN Server and Client (supporting WireGuard and OpenVPN), enabling secure, encrypted connections for your entire household or office.
