| Key Features | ||
| Data Rate | 5 GHz Wi-Fi Speed: 2882 Mbps 2.4 GHz Wi-Fi Speed: 688 Mbps |
|
| Antenna | Wi-Fi Antennas: 4× Internal 5 GHz Antenna Gain Max: 5.5dBi 2.4 GHz Antenna Gain Max: 5.4dBi |
|
| Button | WPS Button, Reset Button | |
| Frequency | 5 GHz, 2.4 GHz | |
| Network Standard | QoS: Per-User Rate Limiting DHCP: - Address Reservation - DHCP Client List - Server IP Versions: IPv4/IPv6 IPv6 Protocols: - Relay - Dynamic (SLAAC/DHCPv6) - Static (Fixed IP) - Passthrough - 464XLAT - MAP-E - DS-Lite IPTV/VLAN: - Bridge - Tag VLAN - VoIP VLAN - IPTV VLAN TTL Customization: - Extend - Spoof - Custom IGMP: - IGMP Proxy - IGMP Snooping Forwarding: - Port Forwarding - Port Triggering - UPnP - DMZ Firewall: - SPI Firewall - DoS Protection - Block PING Application Layer Gateway: - IPSec Passthrough - L2TP Passthrough - PPTP Passthrough - FTP Passthrough - TFTP Passthrough - H323 Passthrough - SIP Passthrough - RTSP Passthrough |
|
| Ports | Gigabit RJ45 Ports: 3 Ethernet Notes: 1× WAN port, the rest are LAN ports |
|
| Interface | Gigabit RJ45 Ports: 3 Ethernet Notes: 1× WAN port, the rest are LAN ports Uplink Ethernet Ports: 1-Pack: 57×56×26 cm 22.44×22.05×10.24 inches 2-Pack: 55×54.5×35.3 cm 21.65×21.46×13.9 inches 3-Pack: 53.6×40×28.7 cm 21.1×15.75×11.3 inches LED: - System - Speed/Link/ACT of Ethernet Port Physical Buttons: - WPS Button - Reset Button Power Input: DC Jack |
|
| Wireless | Wi-Fi Standards: Wi-Fi 7 Max Wi-Fi Modulation: 4K-QAM Wi-Fi Efficiency: - MLO - MRU - 4Puncturing - OFDMA - MU-MIMO - BSS Color Max Capacity: 512 Recommended Client Upper Limit: 200 Max Wi-Fi Channel Width: 160 MHz Wi-Fi Security: WPA/WPA2/WPA3 Guest Network: 2.4 GHz, 5 GHz WPS: True |
|
| Others | Coverage Up to 1900 Sq ft Processor: CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7 Memory/Storage Flash/ROM: 128 MB (1 Gbit) NAND DDR/RAM: 512 MB (4 Gbit) DDR3L Operation Modes: - Wi-Fi Router - Access Point - Range Extender - WISP - Client Mesh: Cudy Mesh Mesh Backhaul: - Wireless Backhaul - Wired Backhaul Multi-Band Backhaul: True WAN Mode: - DHCP - Static IP - PPPOE - PPTP - L2TP Internet Failover Sequence: - WAN - WISP System: LED Control: True Local Control Method: - Config Web Page - App Control Remote Control Method: - Config Page via HTTPS - App Control - TR069/TR098/TR111/TR143/TR181 Firmware Upgrade: - Local Update - App (Over the Air) - Online Update Reliability: - Timed Reboot - Backup and Restore Diagnostic Tools: - Diagnosis - Ping - Traceroute - NSLookup - System Log Languages: - English - Bengali - Catalan - Czech - German - Greek - Spanish - French - Hebrew - Croatian - Hungarian - Italian - Japanese - Khmer - Korean - Dutch - Norwegian - Polish - Portuguese - Romanian - Russian - Slovak - Swedish - Thai - Turkish - Ukrainian - Vietnamese - Simplified Chinese - Traditional Chinese Utilities: VPN Server: - WireGuard - OpenVPN - IPsec - Zerotier - PPTP - L2TP VPN Client: - WireGuard - OpenVPN - IPsec - Zerotier - PPTP - L2TP DNS Options: - DNS over TLS - Manual DNS - Rebind Protection - Override Clients' DNS DNS over TLS Providers: - Cloudflare - Quad9 - Custom Wake on LAN: True Online Detection: True Reliability Environment: - Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) - Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) - Humidity: 10% ~ 90% non-condensing - Storage Humidity: 5% ~ 95% non-condensing Parental Controls: URL Blacklist, Time Schedule, Profiles, Client Management Cudy Mesh, VPN Client, Cudy App, Cloud Control |
|
| Power Source | ||
| Power Mode | Power Methods: DC DC Input: 12V 1A Power Adapter: - Input: 100 ~ 240 V, 50/60 Hz AC - Output: 12V 1A DC Max Power Consumption (W): 9W |
|
| Physical Dimension | ||
| Dimension | Φ110×154.5 mm Φ4.33×6.08 inches |
|
| Manufacturer warranty | ||
| warranty | 1 year | |

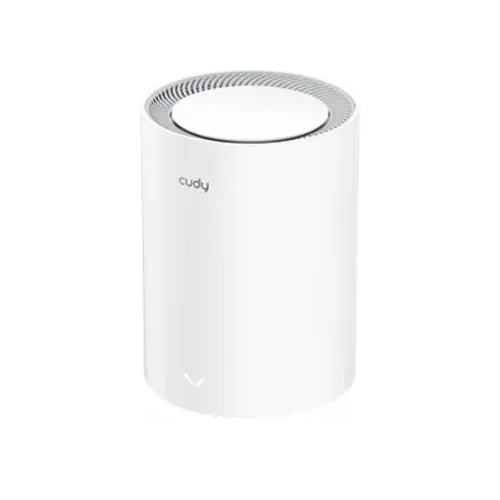

The Cudy M3600 (1-Pack) represents a significant milestone in home networking, introducing the cutting-edge Wi-Fi 7 (802.11be) standard to a consumer-friendly mesh format. As a BE3600-rated device, it is engineered for the future of the internet, providing the ultra-low latency and massive throughput required for next-generation applications like 8K streaming, cloud gaming, and immersive VR/AR environments.
The M3600 delivers an aggregate speed of 3.6Gbps across its dual bands, significantly outperforming Wi-Fi 6 predecessors.
5GHz Band (2882Mbps): Utilizes 4K-QAM and 160MHz channels to push data faster than ever before.
2.4GHz Band (688Mbps): Offers robust, long-range connectivity for legacy devices and smart home gear.
A standout feature of Wi-Fi 7 included here is Multi-Link Operation (MLO), which allows devices to send and receive data across different bands simultaneously, drastically reducing lag and improving reliability in congested areas.
Under the hood, the M3600 is powered by a 2.0GHz Quad-Core CPU and 512MB of DDR3L RAM, enabling it to manage up to 200 devices without a drop in performance. A single unit provides approximately 1,900 to 2,100 sq. ft. of coverage. Thanks to Cudy Mesh technology, you can expand this coverage indefinitely by adding more units, creating a seamless network where your devices automatically switch to the fastest node as you move.

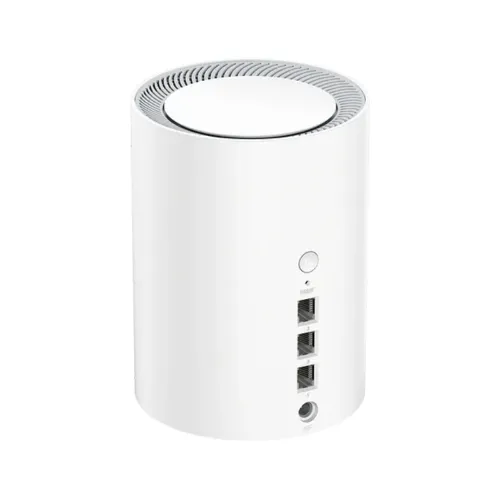

The unit features three Gigabit Ethernet ports (1 WAN, 2 LAN) for high-speed wired connections to PCs or gaming consoles. Security is enterprise-grade, featuring WPA3 encryption, a built-in VPN Server and Client (supporting WireGuard and OpenVPN), and DNS over TLS for encrypted browsing. With its minimalist design and powerful internals, the Cudy M3600 is a premier choice for those looking to stay ahead of the curve in networking technology.
