| Key Features | ||
| Data Rate | 5 GHz Wi-Fi Speed: 1201 Mbps 2.4 GHz Wi-Fi Speed: 300 Mbps |
|
| Antenna | Wi-Fi Antennas: 2× Internal 5 GHz Antenna Gain Max: 5.56dBi 2.4 GHz Antenna Gain Max: 4.41dBi |
|
| Button | WPS Button, Reset Button | |
| Frequency | 5 GHz, 2.4 GHz | |
| Network Standard | QoS: Per-User Rate Limiting DHCP: - Address Reservation - DHCP Client List - Server IP Versions: IPv4/IPv6 IPv6 Protocols: - Relay - Dynamic (SLAAC/DHCPv6) - Static (Fixed IP) - Passthrough - 464XLAT - MAP-E - DS-Lite IPTV/VLAN: - Bridge - Tag VLAN - VoIP VLAN - IPTV VLAN IGMP: - IGMP Proxy - IGMP Snooping Forwarding: - Port Forwarding - UPnP - DMZ Firewall: - SPI Firewall - Block PING |
|
| Ports | Gigabit RJ45 Ports: 3 Ethernet Notes: 1× WAN port, the rest are LAN ports |
|
| Interface | Gigabit RJ45 Ports: 3 Ethernet Notes: 1× WAN port, the rest are LAN ports Uplink Ethernet Ports: 1-Pack: 57×56×26 cm 22.44×22.05×10.24 inches LED: System Physical Buttons: - WPS Button - Reset Button Power Input: DC Jack |
|
| Wireless | Wi-Fi Standards: Wi-Fi 6 Max Wi-Fi Modulation: 1024-QAM Wi-Fi Efficiency: Beamforming Max Capacity: 128 Recommended Client Upper Limit: 60 Max Wi-Fi Channel Width: 80 MHz Wi-Fi Security: WPA/WPA2/WPA3 Guest Network: 2.4 GHz, 5 GHz WPS: True |
|
| Others | Coverage Up to 3200 Sq ft Processor: 1 GHz Single-Core CPU Memory/Storage Flash/ROM: 16 MB (128 Mbit) NOR DDR/RAM: 128 MB (1 Gbit) DDR3 System: LED Control: True Local Control Method: - Config Web Page - App Control Remote Control Method: - Config Page via HTTPS - App Control - TR069/TR098/TR111/TR143/TR181 Firmware Upgrade: - Local Update - App (Over the Air) - Online Update Reliability: - Timed Reboot - Backup and Restore Diagnostic Tools: - Diagnosis - Ping - Traceroute - NSLookup - System Log Languages: - English - Portuguese - Russian - Spanish - Ukrainian - French - Simplified Chinese Utilities: VPN Client: - PPTP - L2TP - Wireguard DNS Options: - Manual DNS - Rebind Protection - Override Clients' DNS Wake on LAN: True Online Detection: True Parental Controls: URL Blacklist, Time Schedule, Profiles, Client Management Cudy Mesh, VPN Client, Cudy App, Cloud Control |
|
| Power Source | ||
| Power Mode | Power Methods: DC DC Input: 12V 1A Power Adapter: - Input: 100 ~ 240 V, 50/60 Hz AC - Output: 12V 1A DC Max Power Consumption (W): 10W |
|
| Physical Dimension | ||
| Dimension | 110×154.5 mm 4.33×6.08 inches |
|
| Manufacturer warranty | ||
| warranty | 1 year | |

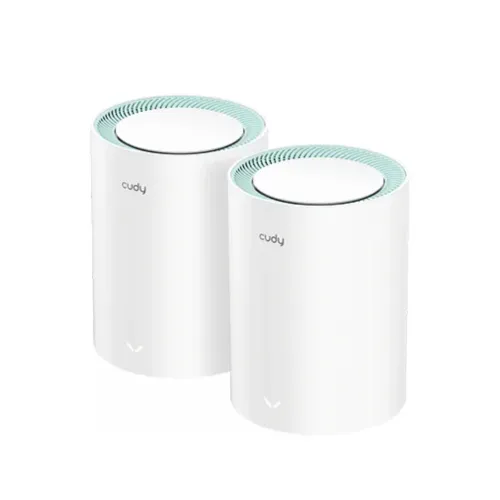

The Cudy M1500 AX1500 is a high-performance Mesh Wi-Fi 6 system designed to eliminate dead zones and provide seamless, high-speed connectivity across larger homes or offices. This 2-pack system leverages the latest 802.11ax (Wi-Fi 6) standard, offering a combined bandwidth of up to 1.5 Gbps. By splitting the load between the 2.4 GHz (300 Mbps) and 5 GHz (1201 Mbps) bands, it ensures that low-bandwidth tasks and high-demand activities like 4K streaming or online gaming run simultaneously without interference.
Seamless Roaming: The M1500 uses advanced Mesh technology to create a single, unified network. As you move through your space, your devices automatically switch to the node with the strongest signal without dropping the connection.
Enhanced Capacity: With OFDMA and MU-MIMO technology, the router can communicate with dozens of devices at once. This significantly reduces latency and prevents network congestion in smart homes packed with phones, tablets, and IoT devices.
Wider Coverage: The 2-pack configuration is designed to cover up to 3,000 square feet, using internal high-gain antennas to push signals through walls and floors more effectively than traditional single-router setups.
Security & Privacy: It comes equipped with WPA3 encryption, providing the latest in wireless security. Additionally, it features built-in VPN clients (PPTP, L2TP, OpenVPN, WireGuard), allowing you to secure your entire home network at the router level.
Each node features a minimalist, compact design that blends into modern interiors. On the back, you’ll find Gigabit Ethernet ports (1 WAN/LAN and 1 LAN), ensuring that wired devices like desktop PCs or consoles receive the full speed of your internet plan. Setup is straightforward via a web browser or the Cudy app, making it an accessible upgrade for those looking to future-proof their home network.
