| BASIC INFORMATION | ||
| Certifications | 80 PLUS Bronze Certified | |
| Input Voltage | Operation Voltage 100-240 Vac| Input Voltage 100-240 Vac| Input Current 8-4 A| Input Frequency 50-60 Hz |
|
| Basic Information | ||
| Others | Fan Size 120 mm| Fan Bearing LDB |
|
| Power | MWE 550W | |
| Key Feature | ||
| Efficiency (Approx.) | 85% Typically | |
| MTBF | >100,000 Hours | |
| Features | ||
| Dimension | 140 x 150 x 86 mm | |
| Connectors | ||
| Connector | MB 20+4 Pin 1| CPU 12V 4+4 Pin 1| SATA 4| Peripheral 4 Pin 3| FDD Cable 4 Pin 1| PCI-e 6+2 Pin 2 |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

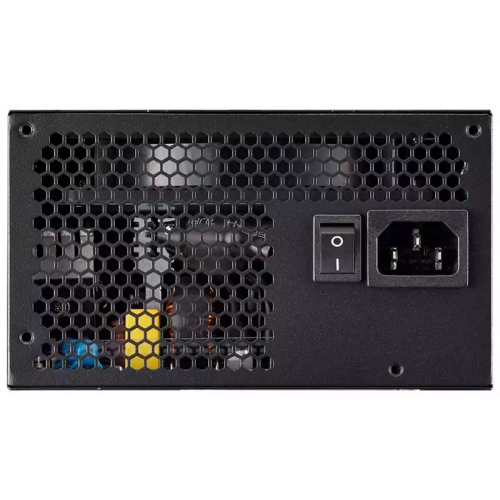

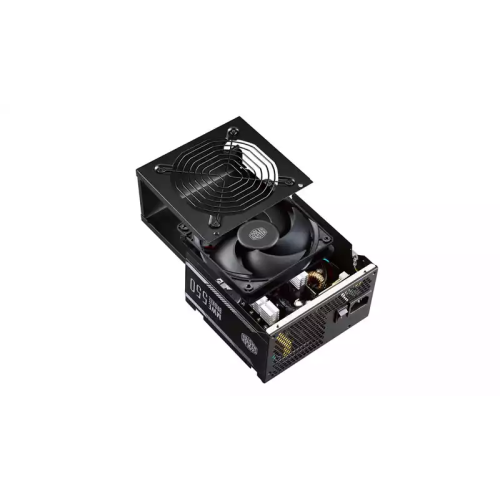

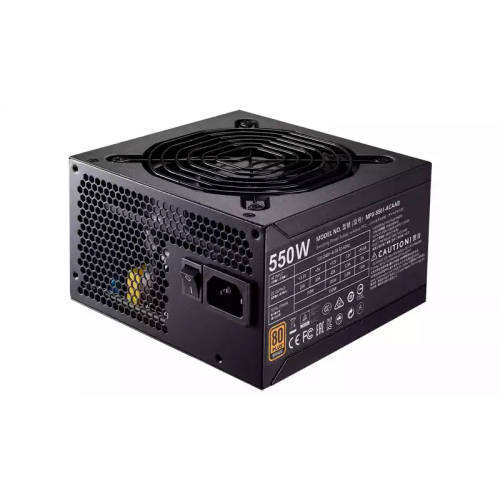

The Cooler Master MWE 550W 80 Plus Bronze is a non-modular power supply unit designed for reliable and efficient performance in a mid-range PC build. With an 80 Plus Bronze efficiency rating, it guarantees at least 85% efficiency at typical loads, which helps reduce power consumption and heat. It features a 120mm Hydraulic Bearing (HDB) fan that is thermally sensitive, adjusting its speed to minimize noise while providing effective cooling. The PSU is equipped with a DC-to-DC circuit design and Active Power Factor Correction (PFC) for stable voltage regulation. It also includes multiple protection features like OVP, OPP, SCP, UVP, and OTP to safeguard your components.
