| Key Feature | ||
| Certification | 80 PLUS Bronze | |
| Efficiency (Approx.) | 85% Typically | |
| Fan Size | 120mm | |
| Frequency | 50-60Hz | |
| Output | ||
| Voltage | 100-240Vac | |
| Power | 550W | |
| Connectors | ||
| Connector | MB 20+4 Pin 1| CPU 12V 4+4 Pin 1| SATA 4| Peripheral 4 Pin 3| FDD Cable 4 Pin 1| PCI-e 6+2 Pin 2 | |
| Input | ||
| Current | 8-4A | |
| Others | ||
| Others | POWERGOOD SIGNAL : 100-500ms HOLD UP TIME : >16ms at 80% Load MTBF : >100,000 Hours OPERATING TEMPERATURE : 0-40°C PROTECTIONS : OVP, OPP, OTP, SCP REGULATORY : CE, TUV, EAC, RCM, CCC ATX VERSION : Intel Form Factor ATX 12V V2.31 Active PFC : (>0.9 typical) DIMENSIONS (L X W X H) : 140 x 150 x 86 mm |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 Years Warranty | |

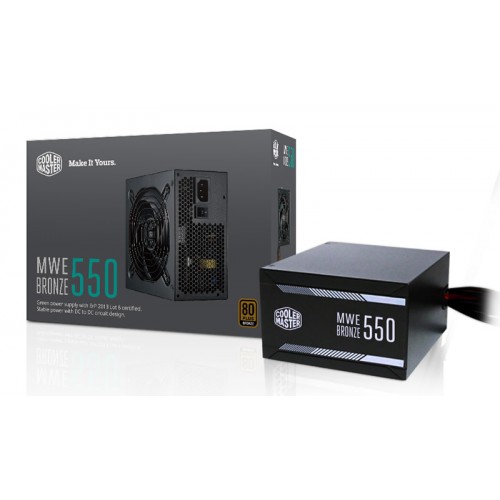

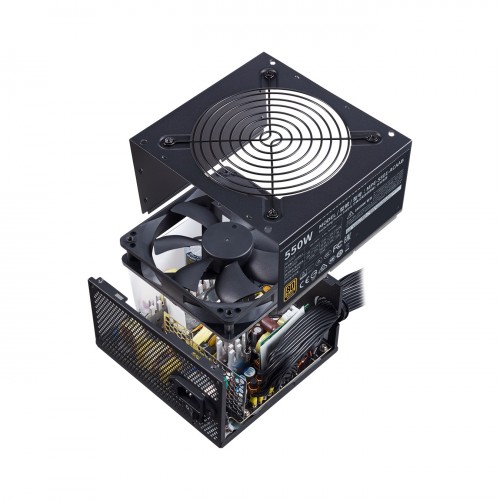

Cooler Master's family of power options features a line of stable, high quality, 80 Plus Bronze power supplies. The MWE Bronze series is compact and available in outputs suitable for most systems. On top of safety regulations, the MWE Bronze includes Cooler Master's 3-year warranty. Inside, the Silencio fan blades run with less turbulence while sealed LDB bearings guarantee a longer service life. High-quality components keep up with daily power demands while delivering consistent output even in 40°C surroundings cool and quiet.
